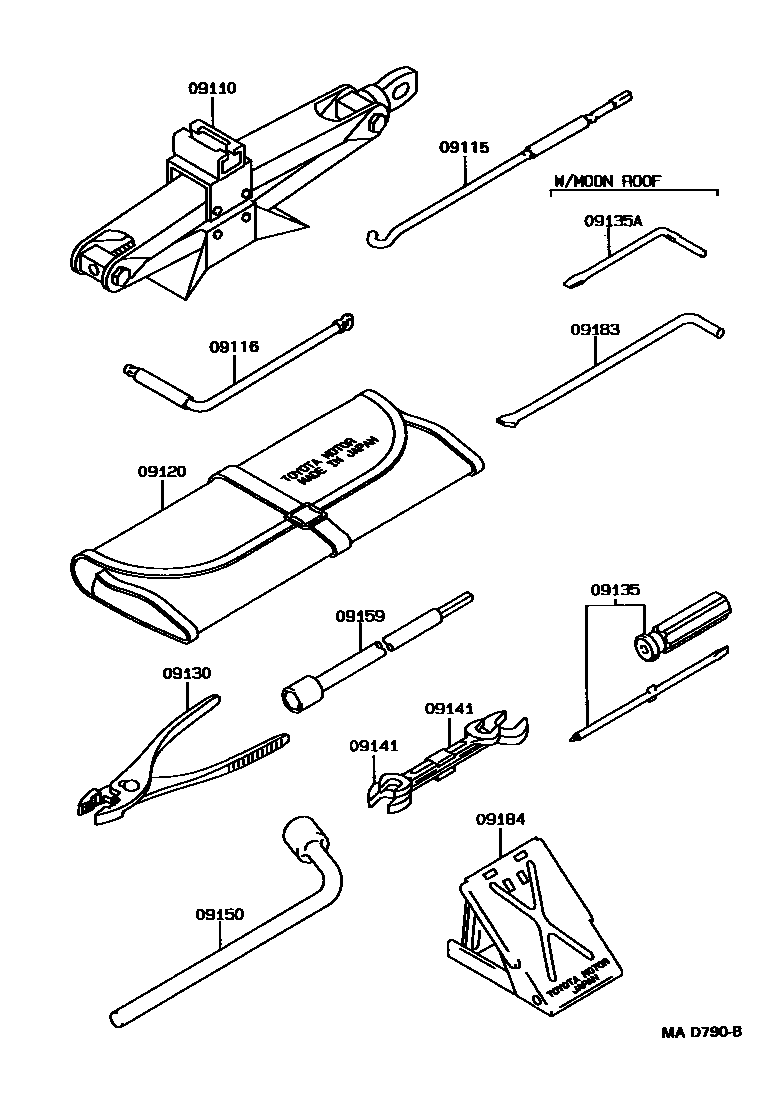

STANDARD TOOL

09110JACK ASSY

main09111-22050iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

sub09111-17020

09115ROD SUB-ASSY, JACK HANDLE

main09115-30020iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

09116LEVER, JACK HANDLE

main09116-30010iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

09120BAG, TOOL

main09120-30020iGX81,JZX81,LX80,MX83,SX80198808-199210

main09120-30030iYX80198808-199210

09130PLIERS

main99913-11500iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

09135DRIVER, SCREW

main99915-10700iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

09135ABIT, SCREW DRIVER

main09135-00012iGX81,JZX81,MX83..GT,SLT,SLTG198808-199210

09141SPANNER

main99914-10810iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

main99914-11214iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

09150WRENCH, HUB NUT BOX

main09150-26010iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

09159WRENCH, SPARE WHEEL CARRIER

main09159-22010iYX80198808-199210

09183WRENCH, WHEEL CAP

main09183-00010iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

09184STOPPER, WHEEL

main09184-00010iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

12 parts on this diagram · 1 diagram in section
