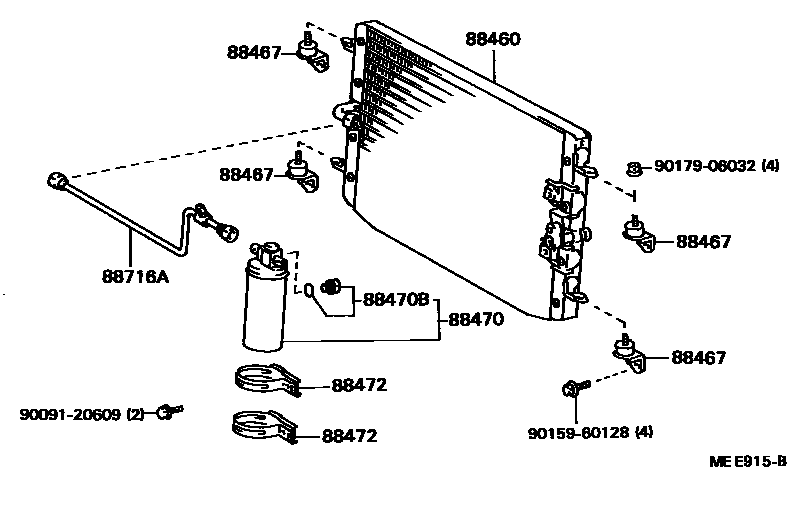

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1

88460CONDENSER ASSY, COOLER

main88460-22270iGX71,MX71,SX70198408-198501

main88460-22271iGX71,MX71,SX70..CBR,EFI,TBO,TWC198501-198808

main88460-22280iLX70198408-198501

main88460-22281iLX70198501-198602

main88460-22301iGX71..TWT198510-198808

main88460-22301iSX70..4FC198701-198808

*30

main88460-22320iLX70198602-198808

88467CUSHION, COOLER CONDENSER, NO.1

main88467-22060iGX71,LX70,MX71,SX70198408-198808

88470RECEIVER & DRYER ASSY, COOLER

main88470-12070iGX71,LX70,MX71,SX70198408-198808

88470BBOLT, FUSE

main88475-12020iGX71,LX70,MX71,SX70198408-198808

88472BRACKET, RECEIVER TANK, NO.1

main88472-22090iGX71,LX70,MX71,SX70198408-198808

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-22430iGX71,MX71,SX70..CBR,EFI,TBO,TWC198408-198808

main88716-22450iLX70198408-198602

main88716-22491iSX70..4FC198701-198808

*30

main88716-22630iGX71..TWT198510-198608

main88716-22631iGX71..GT,SLU198608-198703

main88716-22632iGX71..GT,SLU198703-198808

main88716-22640iLX70198602-198608

main88716-22641iLX70198608-198808

9009120609

main90091-20609

9015960128

main90159-60128

9017906032

main90179-06032

9 parts on this diagram · 11 diagrams in section
