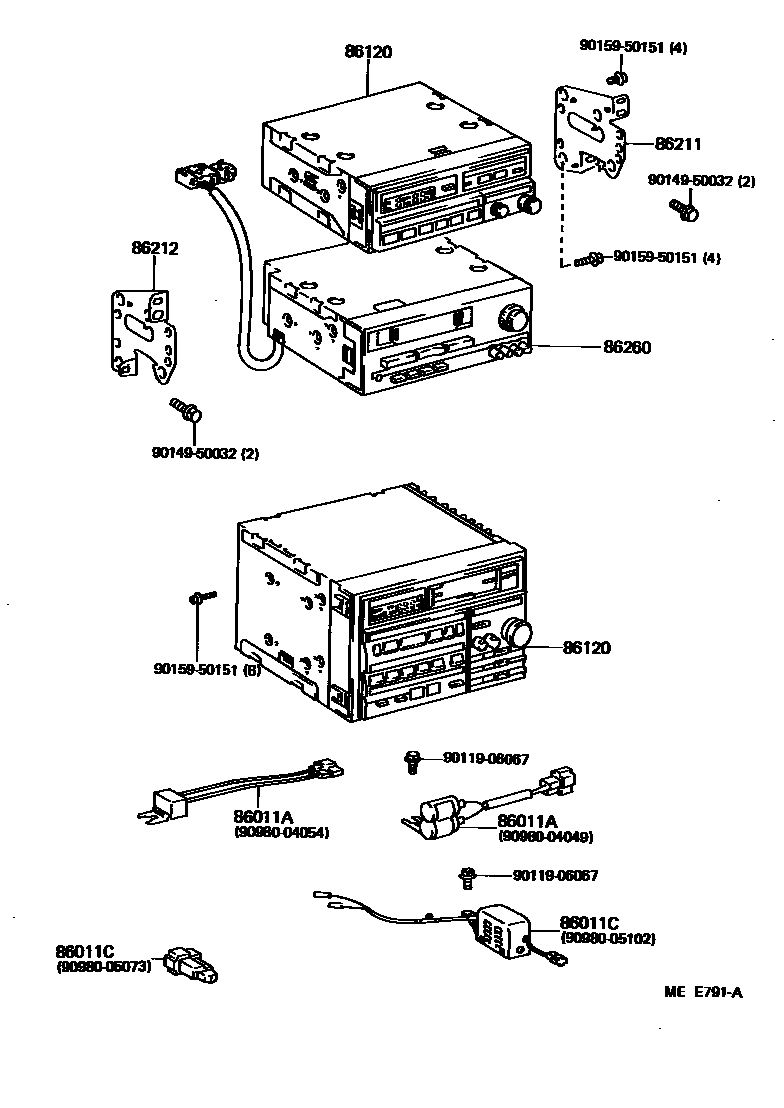

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1

86011ACONDENSER, RADIO SETTING

main90980-04049iGX71,LX70,MX71,SX70198408-198608

DEFOGGER

main90980-04054iGX71,MX71,SX70198408-198508

IG COIL

86011CFILTER, NOISE

main90980-05073iGX71,LX70,MX71,SX70198408-198808

FR

main90980-05102iGX71,LX70,MX71,SX70198408-198808

RR

86120RECEIVER ASSY, RADIO

main86120-17010iLX70,SX70..KYO198408-198608

main86120-22490iGX71,LX70,SX70..SCM,SDX198408-198608

main86120-22500iGX71,MX71..GT,SLU198408-198608

main86120-22640iGX71,LX70,SX70..SCM,SDX198608-198808

*19

main86120-22660iGX71..GT,SLU198608-198808

*20

main86120-22670iGX71..GT,SLU198608-198707

*20,W/CD PLAYER

main86120-22671iGX71..GT,SLU198707-198808

*20,W/CD PLAYER

86211BRACKET, RADIO, NO.1

main86211-22130iGX71,LX70,MX71,SX70198408-198808

86212BRACKET, RADIO, NO.2

main86212-22110iGX71,LX70,MX71,SX70198408-198808

86260TAPE PLAYER ASSY

main86260-19155iGX71,LX70,SX70..SCM,SDX198608-198808

main86260-19165iGX71,LX70,SX70..SCM,SDX198608-198808

W/EQUARIZER

main86260-22190iGX71,LX70,SX70..SCM,SDX198408-198608

9011906067

main90119-06067

9014950032

main90149-50032

9015950151

main90159-50151

9098004049

main90980-04049

9098004054

main90980-04054

9098005073

main90980-05073

9098005102

main90980-05102

13 parts on this diagram · 2 diagrams in section
