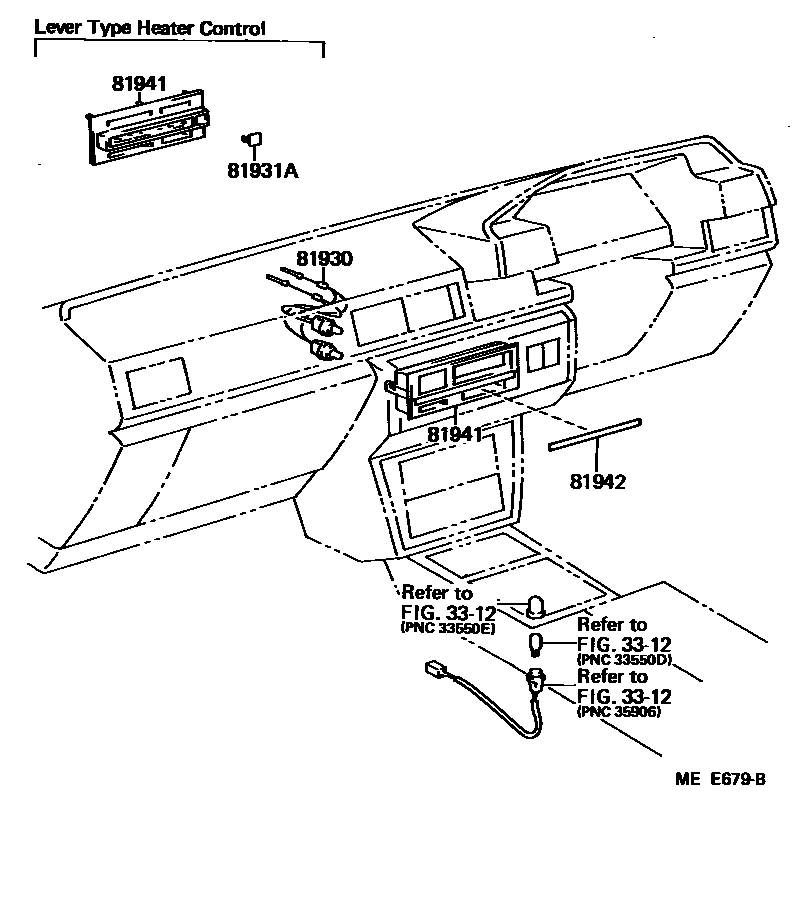

INDICATOR

3312

81930LAMP ASSY, HEATER CONTROL INDICATOR, NO.1

main81930-22100iGX71,MX71..GT,SLU198408-198608

81931ACOVER, COOLER SWITCH HOLE

main55538-22040iGX71,LX70,SX70..KYO,SCM,SDX198408-198808

sub55538-22041

main55538-22040iSX70..4FC198701-198808

*30

sub55538-22041

main55538-22050iGX71,LX70,SX70..SCM,SDX198608-198808

81941PLATE, HEATER CONTROL NAME

main55519-22120iGX71,MX71..GT,SLU198408-198608

main55519-22121iGX71..GT,SLU198608-198808

sub55519-22122

main55519-22130iGX71,MX71..GT,SLU198408-198608

W/*SMD

main55519-22131iGX71..GT,SLU198608-198808

W/*SMD

main55519-22160iGX71,LX70,SX70..KYO,SCM,SDX198408-198608

sub55519-22162

main55519-22161iLX70,SX70..KYO198608-198808

sub55519-22162

main55519-22161iSX70..4FC198701-198808

*30

sub55519-22162

main55519-22170iGX71,LX70,SX70..SCM,SDX198408-198608

W/*AAC

main55519-22240iGX71,LX70,SX70..SCM,SDX198608-198808

sub55519-22241

81942SHEET, HEATER CONTROL NAME

main81942-22010iGX71,LX70,SX70..SCM,SDX198608-198808

W/*AAC

sub81942-22011

5 parts on this diagram · 1 diagram in section
