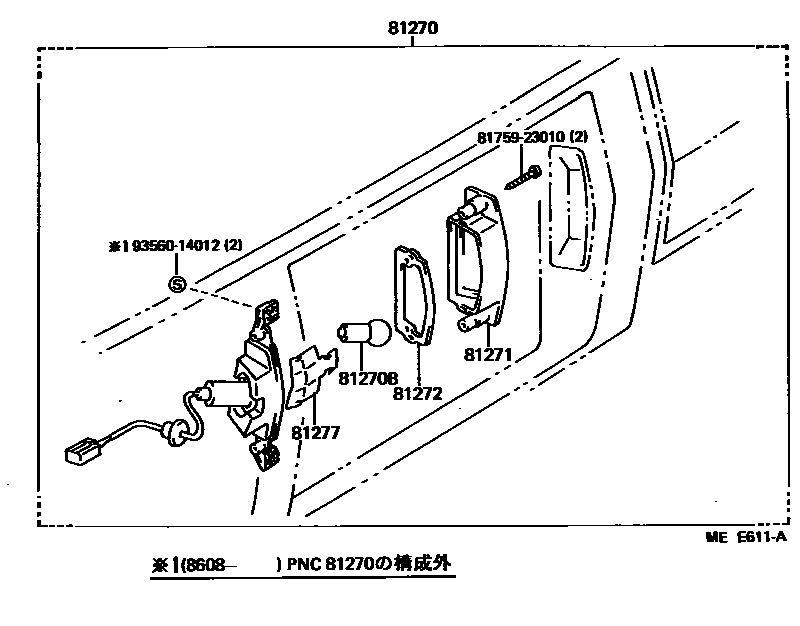

REAR LICENSE PLATE LAMP

81270LAMP ASSY, LICENSE PLATE

main81270-22180iGX71,LX70,SX70198608-198808

RH

main81270-80026iGX71,LX70,MX71,SX70198408-198608

RH

main81690-22060iGX71,LX70,SX70198608-198808

LH

main81690-29195iGX71,LX70,MX71,SX70198408-198608

LH

81270BBULB (FOR LICENSE PLATE LAMP)

main90981-12013×2iGX71,LX70,MX71,SX70198409-198808

main99132-11100×2iGX71,LX70,MX71,SX70198408-198409

81271LENS, LICENSE PLATE LAMP

main81271-16150×2iGX71,LX70,MX71,SX70198408-198808

81272GASKET, LICENSE PLATE LAMP LENS

main81272-20210×2iGX71,LX70,MX71,SX70198408-198808

81277SPACER, LICENSE PLATE LAMP RIM AND LENS

main81277-20210×2iGX71,LX70,MX71,SX70198408-198808

8175923010RETAINER, REAR SIDE MARKER LAMP, RH

main81759-23010

9356014012

main93560-14012

7 parts on this diagram · 1 diagram in section
