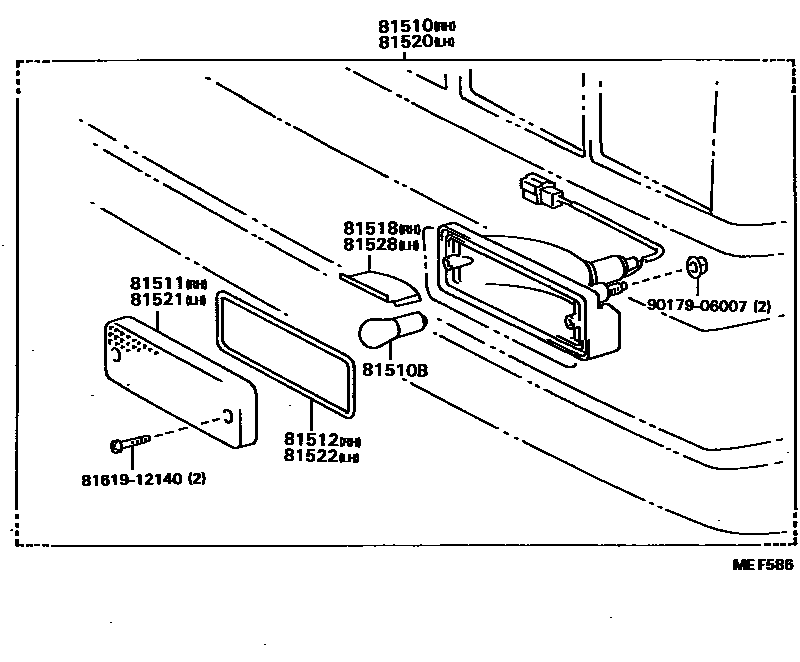

FRONT TURN SIGNAL LAMP

0001 1 0002 1

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-22320iGX71,LX70,SX70198608-198808

main81510-80016iGX71,LX70,MX71,SX70198408-198608

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main99132-11230×2iGX71,LX70,MX71,SX70198408-198808

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-22221iGX71,LX70,MX71,SX70198408-198608

main81511-22320iGX71,LX70,SX70198608-198808

81512GASKET, FRONT TURN SIGNAL LAMP LENS, RH

main81512-14140iGX71,LX70,MX71,SX70198408-198608

main81512-22320iGX71,LX70,SX70198608-198808

81518SHADE, FRONT TURN SIGNAL LAMP, RH

main81517-22220iGX71,LX70,MX71,SX70198408-198608

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81520-22320iGX71,LX70,SX70198608-198808

main81520-80016×4iGX71,LX70,MX71,SX70198408-198608

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81521-22221iGX71,LX70,MX71,SX70198408-198608

main81521-22320iGX71,LX70,SX70198608-198808

81522GASKET, FRONT TURN SIGNAL LAMP LENS, LH

main81512-14140iGX71,LX70,MX71,SX70198408-198608

main81512-22320iGX71,LX70,SX70198608-198808

81528SHADE, FRONT TURN SIGNAL LAMP, LH

main81517-22220iGX71,LX70,MX71,SX70198408-198608

8161912140

main81619-12140

9017906007

main90179-06007

11 parts on this diagram · 2 diagrams in section
