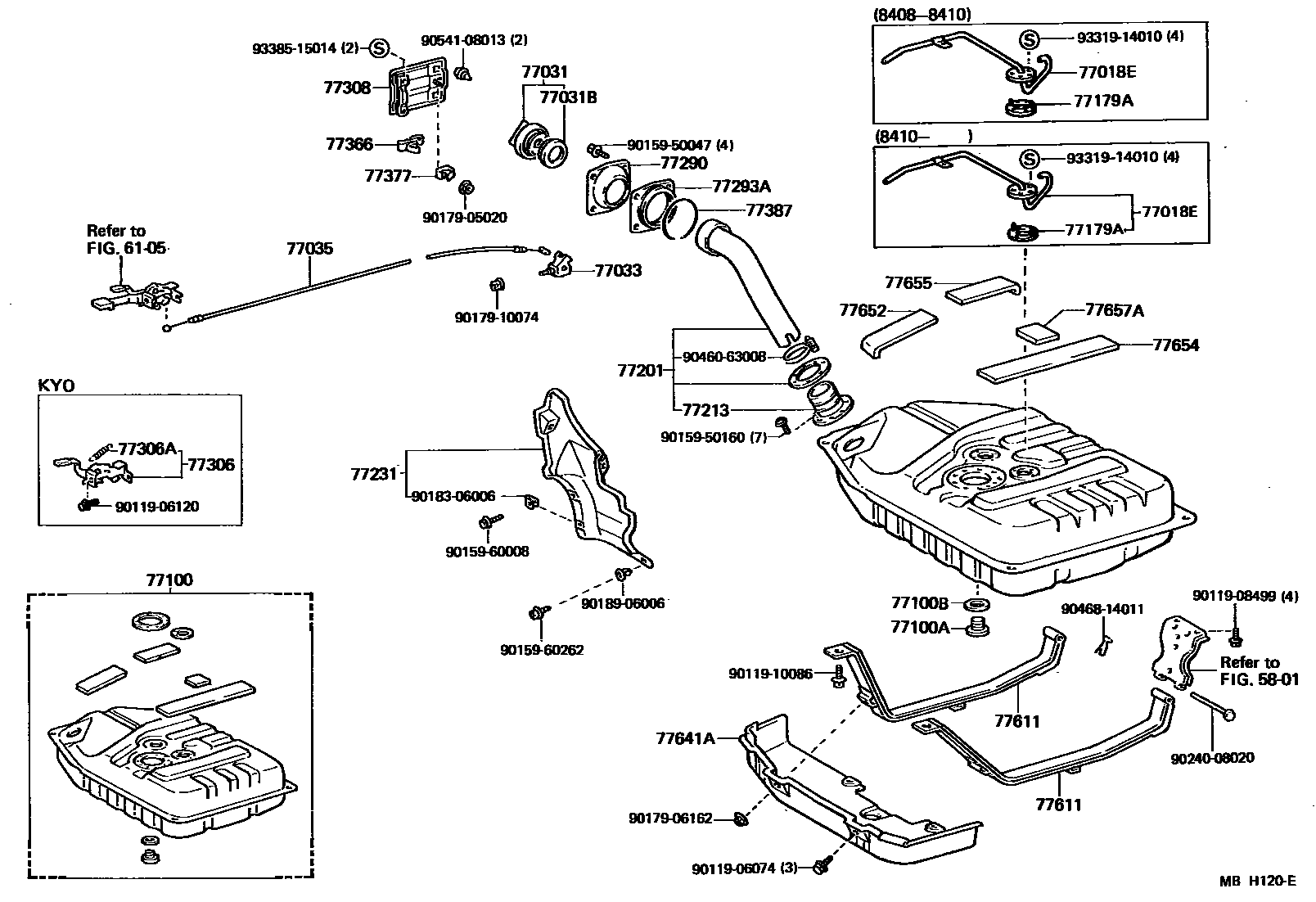

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1

5801

6105

77018ETUBE SUB-ASSY, FUEL TANK EVAPORATION VENT

main77018-22020iGX71,LX70,MX71,SX70198408-198808

sub77018-22030

77031CAP ASSY, FUEL TANK

main77310-12100iGX71,MX71,SX70198408-198808

main77310-35061iLX70198408-198808

77031BGASKET (FOR FUEL TANK CAP)

main77316-12050iGX71,LX70,MX71,SX70198408-198808

77033LOCK SUB-ASSY, FUEL TANK CAP

main77037-14010iGX71,LX70,MX71,SX70198408-198808

sub77037-90K00

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-22090iGX71,LX70,MX71,SX70198408-198608

main77035-22130iGX71,LX70,SX70198608-198808

sub77035-32070

77100TANK ASSY, FUEL

main77001-29115iGX71,LX70,MX71198408-198808

main77001-29125iSX70198408-198808

77100APLUG(FOR FUEL TANK)

main90341-20004iGX71,LX70,MX71,SX70198408-198808

77100BGASKET(FOR FUEL TANK)

main90430-20007iGX71,LX70,MX71,SX70198408-198808

77179AGASKET, FUEL TANK BREATHER TUBE

main77179-14030iGX71,LX70,MX71,SX70198408-198808

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-22180iGX71,LX70,MX71,SX70198408-198808

77213HOSE, FUEL TANK SUB INLET

main77213-14090iGX71,LX70,MX71,SX70198408-198808

77231PROTECTOR, INLET TUBE

main77277-22050iGX71,LX70,MX71,SX70198408-198808

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77290-22020iGX71,LX70,MX71,SX70198408-198808

77293ASHIELD, FUEL TANK FILLER PIPE, NO.3

main77293-22020iGX71,LX70,MX71,SX70198408-198808

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main77306-22010iLX70,SX70..KYO198408-198608

main77306-22020iLX70,SX70..KYO198608-198808

77306ASPRING, FUEL LID OPEN LEVER

main90506-09004iLX70,SX70..KYO198408-198808

77308COVER SUB-ASSY, FUEL INLET BOX

main77350-22060iGX71,LX70,MX71,SX70198408-198608

sub77350-22080

main77350-22080iGX71,LX70,SX70198608-198808

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-24010iGX71,LX70,MX71,SX70198408-198808

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-20030iGX71,LX70,SX70198608-198808

main77377-22030iGX71,LX70,MX71,SX70198408-198608

77387RING, FUEL INLET BOX

main77391-16010iGX71,LX70,MX71,SX70198408-198808

77611BAND, FUEL TANK

main77601-22090iGX71,LX70,MX71,SX70198408-198808

RH

main77602-22110iGX71,LX70,MX71,SX70198408-198808

LH

77641APROTECTOR, FUEL TANK, NO.1

main77641-22060iGX71,LX70,MX71,SX70198408-198808

77652CUSHION, FUEL TANK, NO.1

main77651-22060iGX71,LX70,MX71,SX70198408-198808

77654CUSHION, FUEL TANK, NO.2

main77652-22050iGX71,LX70,MX71,SX70198408-198808

77655CUSHION, FUEL TANK, NO.3

main77653-22050iGX71,LX70,MX71,SX70198408-198808

77657ACUSHION, FUEL TANK, NO.5

main77655-22060iGX71,LX70,MX71,SX70198408-198808

9011906074

main90119-06074

9011906120

main90119-06120

9011908499

main90119-08499

9011910086

main90119-10086

9015950047

main90159-50047

9015950160

main90159-50160

9015960008

main90159-60008

9015960262

main90159-60262

9017905020

main90179-05020

9017906162

main90179-06162

9017910074

main90179-10074

9018306006

main90183-06006

9018906006

main90189-06006

9024008020

main90240-08020

9046063008

main90460-63008

9046814011

main90468-14011

9054108013

main90541-08013

9331914010

main93319-14010

9338515014

main93385-15014
