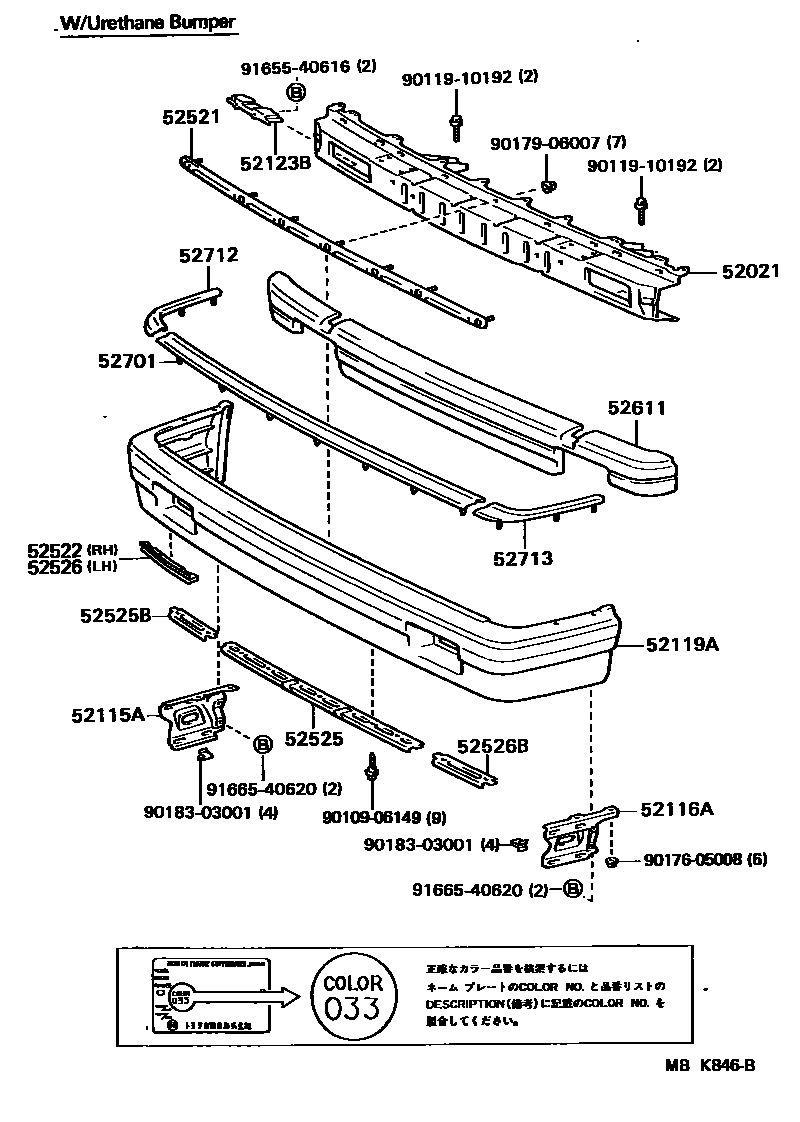

FRONT BUMPER & BUMPER STAY

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-22170iGX71,LX70,MX71,SX70198408-198608

main52021-22190iGX71,LX70,SX70198608-198808

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-22110iGX71,LX70,MX71,SX70198408-198608

main52115-22111iGX71,LX70,SX70198608-198808

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-22080iGX71,LX70,MX71,SX70198408-198608

main52116-22081iGX71,LX70,SX70198608-198808

52119ACOVER, FRONT BUMPER

main52119-22230iGX71,LX70,SX70..KYO,SCM,SDX198408-198608

main52119-22240-03iGX71,MX71..SLU198408-198506

SUPER SILVER-M,SUPER SILVER M,150

main52119-22240-04iGX71,LX70,MX71,SX70..GT,SCM,SDX,SLU198506-198608

DARK BLUE-M,DARK BLUE METALLIC,8C1

main52119-22240-05iGX71,LX70,MX71,SX70..GT,SCM,SDX,SLU198506-198608

BEIGE-M,BEIGE METALLIC,4E6

main52119-22240-08iGX71,MX71..SLU198408-198506

SUPER WHITE,SUPER WHITE,040

main52119-22240-12iGX71,MX71..SLU198408-198510

DEEP MAROON,WINE RED METALLIC,3E2

main52119-22240-13iGX71,MX71..GT,SLU198408-198608

GRAY-M,GRAY METALLIC,2V3

main52119-22240-25iGX71,MX71..GT,SLU198408-198608

LIGHT BEIGE-M,WHITE/BEIGE,2V0

main52119-22240-38iGX71..SLU198601-198608

EXCEED,SUPER WHITE,WHITE/BEIGE,040

main52119-22310iGX71,LX70,SX70..KYO,SCM,SDX198608-198808

main52119-22320-02iGX71,LX70,SX70..GT,SCM,SDX,SLU198608-198808

D-RED MICA,DARK RED MICA,3H3

main52119-22320-03iGX71,LX70,SX70..GT,SCM,SDX,SLU198608-198808

SUPER SILVER 2 -M,SUPER SILVER 2,166

main52119-22320-04iGX71,LX70,SX70..GT,SCM,SDX,SLU198608-198808

BLUE MICA,BLUE MICA,8E3

main52119-22320-05iGX71,LX70,SX70..GT,SCM,SDX,SLU198608-198808

BEIGE-M,BEIGE METALLIC,4G8

main52119-22320-08iGX71,LX70,SX70..GT,SCM,SDX,SLU198608-198808

SUPER WHITE,SUPER WHITE 2,040

main52119-22320-15iGX71..GT,SLU198608-198808

BEIGE / WHITE,BEIGE/WHITE,2V0

main52119-22320-18iGX71..TWC198612-198708

EXCEED,SUPER WHITE,WHTE/BEIGE,040

main52119-22320-28iGX71..SLU..EFI198705-198708

EXCEED,SUPER WHITE,S WHITE 2/S SILVER 2,040

main52119-22400-08iGX71..SLU..EFI198711-198808

EXCCED,BEIGE,SUPER WHITE,S WHITE 2/BEIGE M,040

main52119-22410-08iGX71..SLU..EFI198708-198808

EXCCED,SILVER,SUPER WHITE,S WHITE 2/SILVER M,040

main52119-22640-08iGX71..TWC198802-198808

EXCEED,WHITE PEARL MICA,WHITE PRL M- BEIGE M,042

52123BPLATE, FRONT BUMPER REINFORCEMENT, RH

main52123-22040iGX71,MX71..SLU198408-198508

52521RETAINER, FRONT BUMPER, UPPER CENTER

main52521-22080iGX71,LX70,MX71,SX70198408-198608

main52521-22081iGX71,LX70,SX70198608-198808

52522RETAINER, FRONT BUMPER UPPER SIDE

main52527-22010×2iGX71,LX70,SX70198608-198808

52525RETAINER, FRONT BUMPER, LOWER CENTER

main52525-22050iGX71,LX70,MX71,SX70198408-198608

main52525-22051iGX71,LX70,SX70198608-198808

52525BRETAINER, FRONT BUMPER, LOWER SIDE RH

main52526-22020iGX71,LX70,MX71,SX70198408-198608

main52526-22050iGX71,LX70,SX70198608-198808

52526RETAINER, FRONT BUMPER, LOWER SIDE

main52527-22010×2iGX71,LX70,SX70198608-198808

52526BRETAINER, FRONT BUMPER, LOWER SIDE LH

main52526-22020iGX71,LX70,MX71,SX70198408-198608

main52526-22050iGX71,LX70,SX70198608-198808

52611ABSORBER, FRONT BUMPER ENERGY

main52611-22070iGX71,LX70,MX71,SX70198408-198608

main52611-22090iGX71,LX70,SX70198608-198808

52701MOULDING SUB-ASSY, FRONT BUMPER

main52711-22070iGX71,LX70,MX71,SX70198408-198808

52712MOULDING, FRONT BUMPER SIDE, RH

main52702-22020iGX71,LX70,MX71,SX70198408-198808

52713PLUG, FRONT BUMPER MOULDING

main52703-22020iGX71,LX70,MX71,SX70198408-198808

9010906149

main90109-06149

9011910192

main90119-10192

9017605008

main90176-05008

9017906007

main90179-06007

9018303001

main90183-03001

9165540616

main91655-40616

9166540620

main91665-40620

22 parts on this diagram · 1 diagram in section
