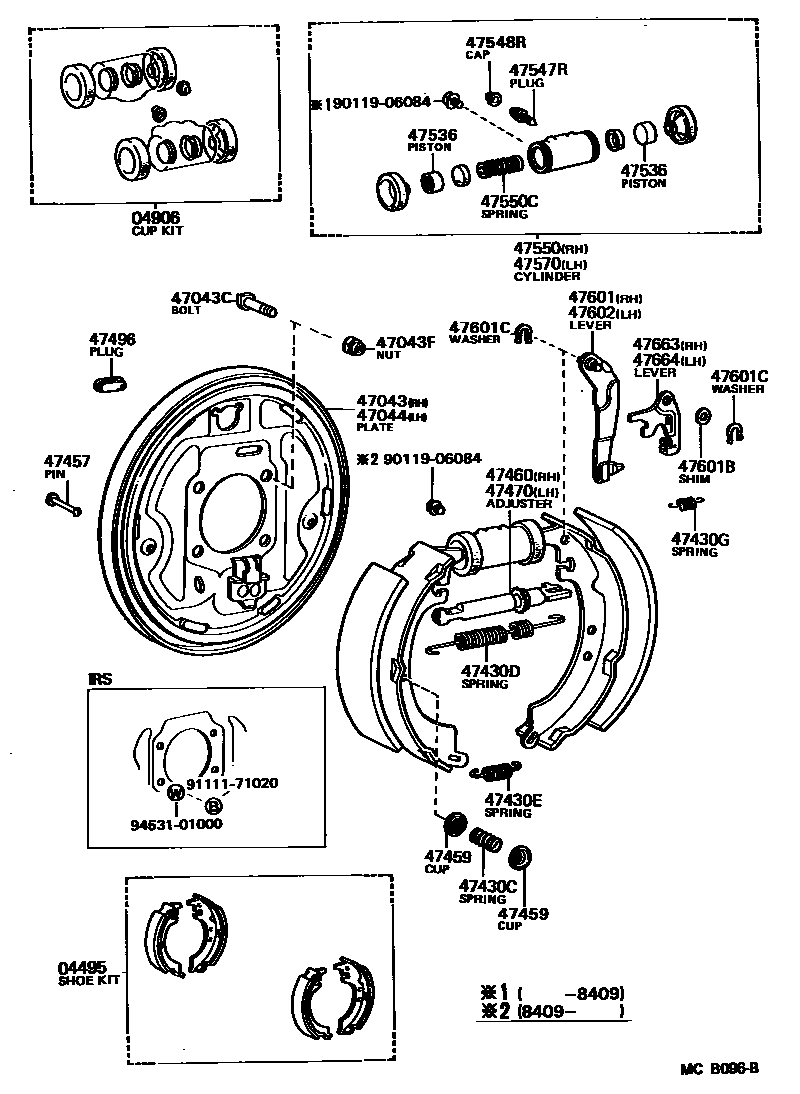

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04495SHOE KIT, REAR BRAKE

main04495-20050iLX70,SX70198408-198709

sub04495-20051

main04495-22040iGX71..SDX198408-198808

sub04495-22041

main04495-22080iLX70,SX70..SCM198709-198808

sub04495-22081

main04497-20030iLX70,SX70..KYO198709-198808

REBUILT

sub04497-20031

main04497-22030iGX71..SDX198408-198808

REBUILT

sub04497-22031

main04497-22040iLX70,SX70..SCM198709-198808

REBUILT

sub04497-22041

04906CUP KIT, REAR WHEEL CYLINDER

main04906-14020iGX71,LX70,SX70..KYO,SCM,SDX198408-198808

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-22040iGX71..SDX198408-198808

main47043-22060iLX70,SX70198408-198808

sub47043-23020

sub47492-28010

47043CBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main42184-22011×8iLX70,SX70198408-198808

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main94181-11000×8iLX70,SX70198408-198808

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-22040iGX71..SDX198408-198808

main47044-22060iLX70,SX70198408-198808

sub47044-23020

sub47492-28010

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-18017×4iGX71,LX70,SX70..KYO,SCM,SDX198408-198808

47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-23375×2iLX70,SX70198408-198808

main90506-29008iGX71..SDX198408-198808

RH

main90506-29009iGX71..SDX198408-198808

LH

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-23346×2iGX71,LX70,SX70..KYO,SCM,SDX198408-198808

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90506-12011×2iGX71,LX70,SX70..KYO,SCM,SDX198408-198808

47457PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-20030×4iGX71,LX70,SX70..KYO,SCM,SDX198408-198808

47459CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30020×8iGX71,LX70,SX70..KYO,SCM,SDX198408-198808

47460ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE)

main47061-14040iGX71,LX70,SX70..KYO,SCM,SDX198408-198808

47470ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE)

main47062-14040iGX71,LX70,SX70..KYO,SCM,SDX198408-198808

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-20011×2iLX70,SX70198408-198808

47536PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)

main47051-22020×4iGX71,LX70,SX70..KYO,SCM,SDX198408-198808

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20010×2iGX71,LX70,SX70..KYO,SCM,SDX198408-198409

main47547-22020×2iGX71,LX70,SX70..KYO,SCM,SDX198409-198808

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010×2iGX71,LX70,SX70..KYO,SCM,SDX198408-198808

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-19145iGX71,LX70,SX70..KYO,SCM,SDX198408-198409

sub47550-14020

main47550-22060iGX71,LX70,SX70..KYO,SCM,SDX198409-198808

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main47509-20010×2iGX71,LX70,SX70..KYO,SCM,SDX198408-198808

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-19145iGX71,LX70,SX70..KYO,SCM,SDX198408-198409

sub47550-14020

main47550-22060iGX71,LX70,SX70..KYO,SCM,SDX198409-198808

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-14010iLX70,SX70198408-198808

main47601-14020iGX71..SDX198408-198808

47601BSHIM, REAR PARKING BRAKE SHOE LEVER

main90564-08150×2iGX71,LX70,SX70..KYO,SCM,SDX198408-198808

main90564-08151×2iGX71,LX70,SX70..KYO,SCM,SDX198408-198808

main90564-08152×2iGX71,LX70,SX70..KYO,SCM,SDX198408-198808

main90564-08172×2iGX71,LX70,SX70..KYO,SCM,SDX198408-198808

main90564-08173×2iGX71,LX70,SX70..KYO,SCM,SDX198408-198808

main90564-08174×2iGX71,LX70,SX70..KYO,SCM,SDX198408-198808

47601CWASHER, C(FOR REAR BRAKE)

main90213-06013×4iGX71,LX70,SX70..KYO,SCM,SDX198408-198808

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-14010iLX70,SX70198408-198808

main47602-14020iGX71..SDX198408-198808

47663LEVER, AUTOMATIC ADJUST, RH(FOR REAR BRAKE)

main47643-20020×2iGX71,LX70,SX70..KYO,SCM,SDX198408-198808

47664LEVER, AUTOMATIC ADJUST, LH(FOR REAR BRAKE)

main47644-20020iGX71,LX70,SX70..KYO,SCM,SDX198408-198808

9011906084

main90119-06084

9111171020

main91111-71020

9453101000

main94531-01000

30 parts on this diagram · 1 diagram in section
