PARKING BRAKE & CABLE

0001 1 0002 1 0003 1 0004 1

46201PEDAL SUB-ASSY, PARKING BRAKE

main46201-22140iGX71,LX70,MX71,SX70..4FC198408-198608

main46201-22141iGX71,LX70,SX70..4FC198608-198808

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-22150-02iGX71,LX70,SX70..5F..(GT,SCM,SDX,SLU)198408-198608

MAROON,MAROON,TRIM3#

main46201-22150-03iGX71,LX70,SX70..5F..(GT,SCM,SDX,SLU)198408-198608

GRAY,COOL GRAY,TRIM1#

main46201-22150-04iGX71,LX70,SX70..5F..(SCM,SDX,SLU)..(CBR,DSL,EFI,TD); GX71..4FC..SDX198608-198802

BLUE, *TECS 1,DARK BLUE,TRIM8#; BLUE,DARK BLUE,TRIM8#

main46201-22150-05iGX71,LX70,SX70..5F..(GT,SCM,SDX,SLU)198408-198608

BEIGE,BEIGE,TRIM4#

main46201-22150-12iGX71,LX70,SX70..5F..(SCM,SDX,SLU)..(CBR,DSL,EFI,TD); GX71..4FC..SDX198608-198802

MAROON, *TECS 1,MAROON,TRIM3#; MAROON,MAROON,TRIM3#

main46201-22150-15iGX71,LX70,SX70..5F..(SCM,SDX,SLU)..(CBR,DSL,EFI,TD); GX71..4FC..SDX198608-198802

BEIGE, *TECS 1,DARK BEIGE,TRIM4#; BEIGE,DARK BEIGE,TRIM4#

main46201-22151-04iGX71,LX70,SX70..5F..(SCM,SDX,SLU)..(CBR,DSL,EFI,TD); GX71..4FC..SDX198802-198808

BLUE, *TECS 1,DARK BLUE,TRIM8#; BLUE,DARK BLUE,TRIM8#

main46201-22151-12iGX71,LX70,SX70..5F..(SCM,SDX,SLU)..(CBR,DSL,EFI,TD); GX71..4FC..SDX198802-198808

MAROON, *TECS 1,MAROON,TRIM3#; MAROON,MAROON,TRIM3#

main46201-22151-15iGX71,LX70,SX70..5F..(SCM,SDX,SLU)..(CBR,DSL,EFI,TD); GX71..4FC..SDX198802-198808

BEIGE, *TECS 1,DARK BEIGE,TRIM4#; BEIGE,DARK BEIGE,TRIM4#

main46201-22160-03iLX70,SX70..KYO198408-198608

GRAY,COOL GRAY,TRIM1#

main46201-22160-04iLX70,SX70..KYO198608-198802

BLUE,DARK BLUE,TRIM8#

main46201-22161-04iLX70,SX70..KYO198802-198808

BLUE,DARK BLUE,TRIM8#

main46201-22170-04iGX71..5F..(TWC,TWT)198608-198802

BLUE,DARK BLUE,TRIM8#

main46201-22170-12iGX71..5F..(TWC,TWT)198608-198802

MAROON,MAROON,TRIM3#

main46201-22170-15iGX71..5F..(TWC,TWT)198608-198802

BEIGE,DARK BEIGE,TRIM4#

main46201-22171-04iGX71..5F..(TWC,TWT)198802-198808

BLUE,DARK BLUE,TRIM8#

main46201-22171-12iGX71..5F..(TWC,TWT)198802-198808

MAROON,MAROON,TRIM3#

main46201-22171-15iGX71..5F..(TWC,TWT)198802-198808

BEIGE,DARK BEIGE,TRIM4#

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-10020-32iGX71,LX70,SX70..5F198408-198410

MAROON,MAROON,TRIM3#

main46217-10020-35iGX71,LX70,SX70..5F198408-198410

BEIGE,BEIGE,TRIM4#

main46217-10020-53iGX71,LX70,SX70..5F198408-198410

GRAY,COOL GRAY,TRIM1#

main46217-12020-D0iGX71,LX70,SX70..5F..(SCM,SDX,SLU)..(CBR,DSL,EFI,TD); GX71..4FC..SDX198802-198808

MAROON, *TECS 1,MAROON,TRIM3#; MAROON,MAROON,TRIM3#

main46217-12020-E0iGX71,LX70,SX70..5F..(SCM,SDX,SLU)..(CBR,DSL,EFI,TD); GX71..4FC..SDX198802-198808

BEIGE, *TECS 1,DARK BEIGE,TRIM4#; BEIGE,DARK BEIGE,TRIM4#

main46217-12020-J0iGX71,LX70,SX70..5F..(KYO,SCM,SDX,SLU); GX71..4FC..SDX198802-198808

BLUE, *TECS 1,DARK BLUE,TRIM8#; BLUE,DARK BLUE,TRIM8#

main46217-20020-05iGX71,LX70,SX70..5F198410-198608

BEIGE,BEIGE,TRIM4#

main46217-20020-12iGX71,LX70,SX70..5F198410-198608

MAROON,MAROON,TRIM3#

main46217-20020-15iGX71,LX70,SX70..5F..(SCM,SDX,SLU)..(CBR,DSL,EFI,TD); GX71..4FC..SDX198608-198802

BEIGE, *TECS 1,BEIGE,TRIM4#; BEIGE,BEIGE,TRIM4#

main46217-20020-23iGX71,LX70,SX70..5F198410-198608

GRAY,COOL GRAY,TRIM1#

main46217-20020-42iGX71,LX70,SX70..5F..(SCM,SDX,SLU)..(CBR,DSL,EFI,TD); GX71..4FC..SDX198608-198802

MAROON, *TECS 1,MAROON,TRIM3#; MAROON,MAROON,TRIM3#

main46217-20020-54iGX71,LX70,SX70..5F..(KYO,SCM,SDX,SLU); GX71..4FC..SDX198608-198802

BLUE, *TECS 1,DARK BLUE,TRIM8#; BLUE,DARK BLUE,TRIM8#

main46217-22040-12iGX71..5F..(TWC,TWT)198608-198802

MAROON,MAROON,TRIM3#

main46217-22040-14iGX71..5F..(TWC,TWT)198608-198802

BLUE,DARK BLUE,TRIM8#

main46217-22040-15iGX71..5F..(TWC,TWT)198608-198802

BEIGE,BEIGE,TRIM4#

main46217-32010-15iGX71..5F..(TWC,TWT)198802-198808

BEIGE,DARK BEIGE,TRIM4#

main46217-32010-D0iGX71..5F..(TWC,TWT)198802-198808

MAROON,MAROON,TRIM3#

main46217-32010-J0iGX71..5F..(TWC,TWT)198802-198808

BLUE,DARK BLUE,TRIM8#

46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)

main90501-10085iGX71,LX70,SX70..5F; GX71..4FC..SDX198802-198808

*TECS 1

main90501-10745iGX71..4FC..SDX198608-198802

*TECS 1

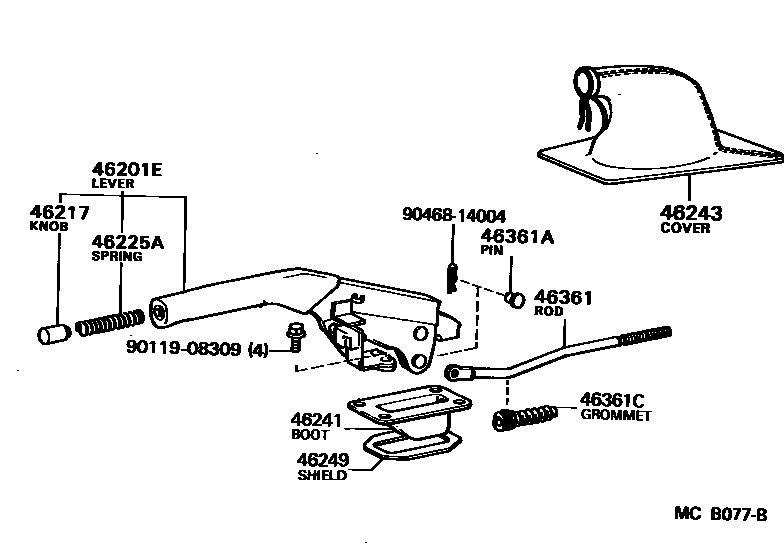

46241BOOT, PARKING BRAKE LEVER

main46241-22060iGX71,LX70,SX70..5F198408-198808

46243COVER, PARKING BRAKE LEVER

main46243-22020-03iLX70,SX70..KYO198408-198808

GRAY,COOL GRAY,TRIM1#

46249SHIELD, PARKING BRAKE HOLE

main46249-22020iGX71,LX70,SX70..5F198408-198808

46361ROD, PARKING BRAKE PULL

main46361-22060iGX71,LX70,SX70..5F198408-198808

46361APIN, PARKING BRAKE PULL ROD

main90240-08037iGX71,LX70,SX70..5F198408-198808

46361CGROMMET(FOR PARKING BRAKE PULL ROD)

main90480-01292iGX71,LX70,SX70..5F198408-198808

9011908309

main90119-08309

9046814004

main90468-14004
