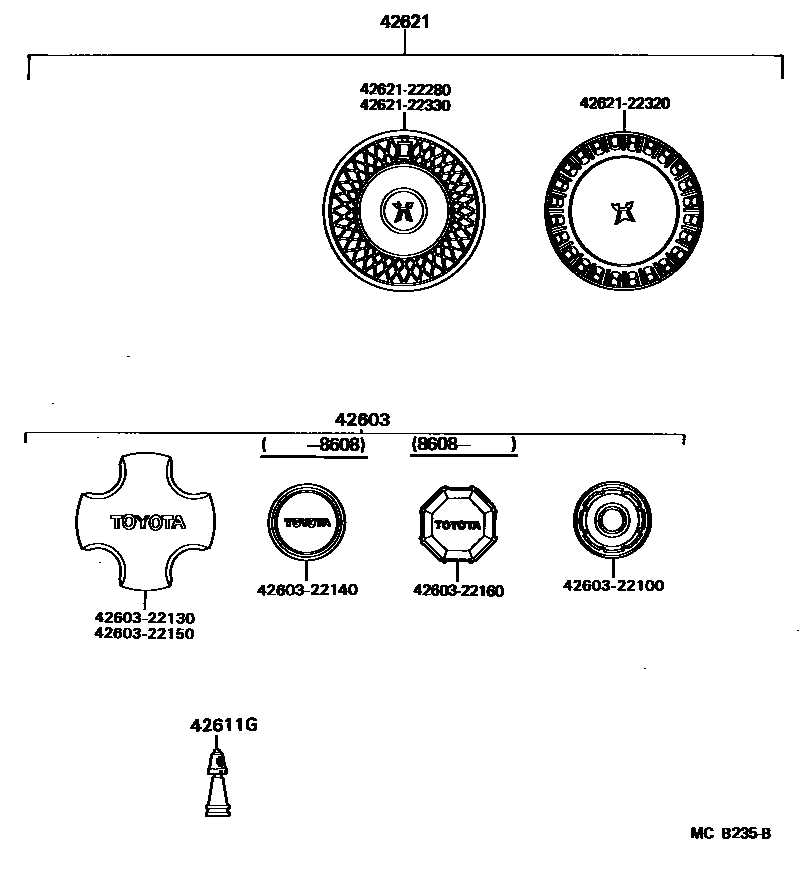

DISC WHEEL & WHEEL CAP

0001 1 0002 1

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-22100×4iLX70,SX70..KYO198408-198808

main42603-22130×4iGX71..SLU..EFI198711-198806

main42603-22140×4iGX71,MX71..SLU198408-198608

W/5.5JJ-14,ALUMI WHEEL

main42603-22150×4iGX71..SLU198705

main42603-22160×4iGX71..SLU198608-198808

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×5iGX71,LX70,MX71,SX70198408-198808

42621CAP, WHEEL

main42621-22280×4iGX71,MX71..SLU198408-198608

main42621-22320×4iGX71,LX70,SX70..SCM,SDX198408-198808

main42621-22330×4iLX70,SX70..SCM198804-198807

4260322100ORNAMENT SUB-ASSY, WHEEL HUB

main42603-22100

4260322130ORNAMENT SUB-ASSY, WHEEL HUB

main42603-22130

4260322140ORNAMENT SUB-ASSY, WHEEL HUB

main42603-22140

4260322150ORNAMENT SUB-ASSY, WHEEL HUB

main42603-22150

4260322160ORNAMENT SUB-ASSY, WHEEL HUB

main42603-22160

4262122280CAP, WHEEL

main42621-22280

4262122320CAP, WHEEL

main42621-22320

4262122330CAP, WHEEL

main42621-22330

11 parts on this diagram · 2 diagrams in section
