TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

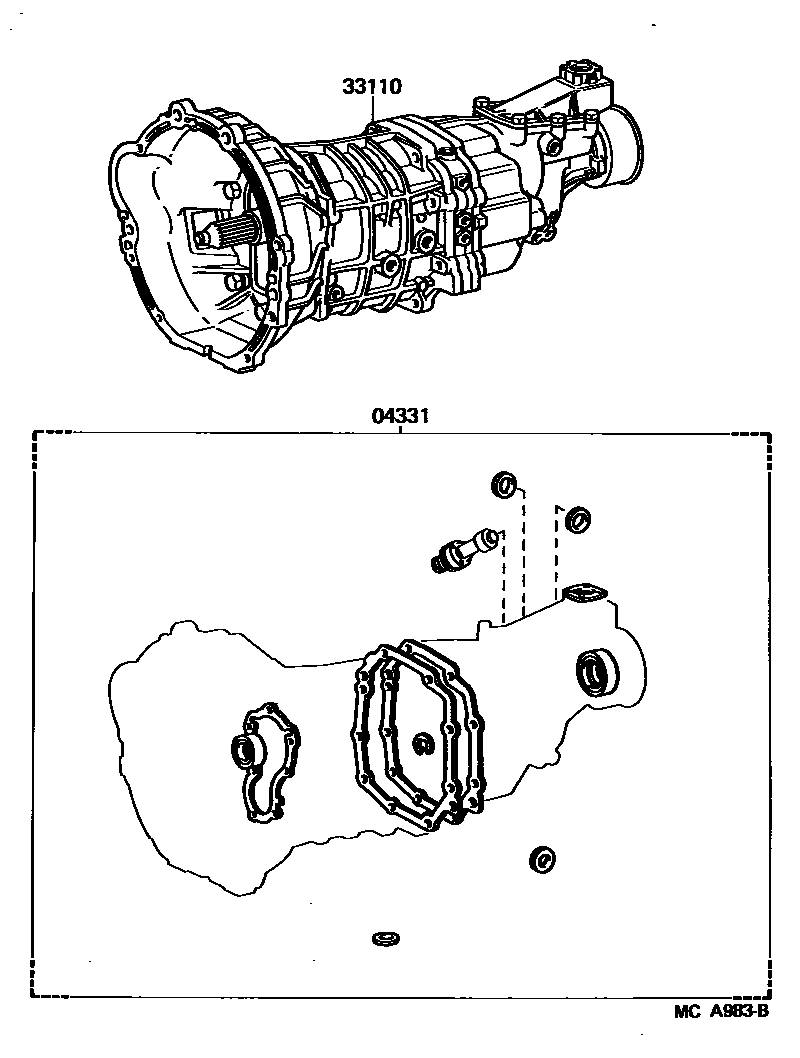

Parts diagram

04331GASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-20050i198408-198808

33110TRANSMISSION ASSY, MANUAL

main33030-22790i198408-198808

main33030-22810i198408-198808

main33030-22820i198408-198808

main33030-22830i198408-198808

main33030-22840i198408-198808

main33030-22890i198408-198808

main33030-2A040i198510-198808

main33030-3A150i198408-198808

2 parts on this diagram · 1 diagram in section
