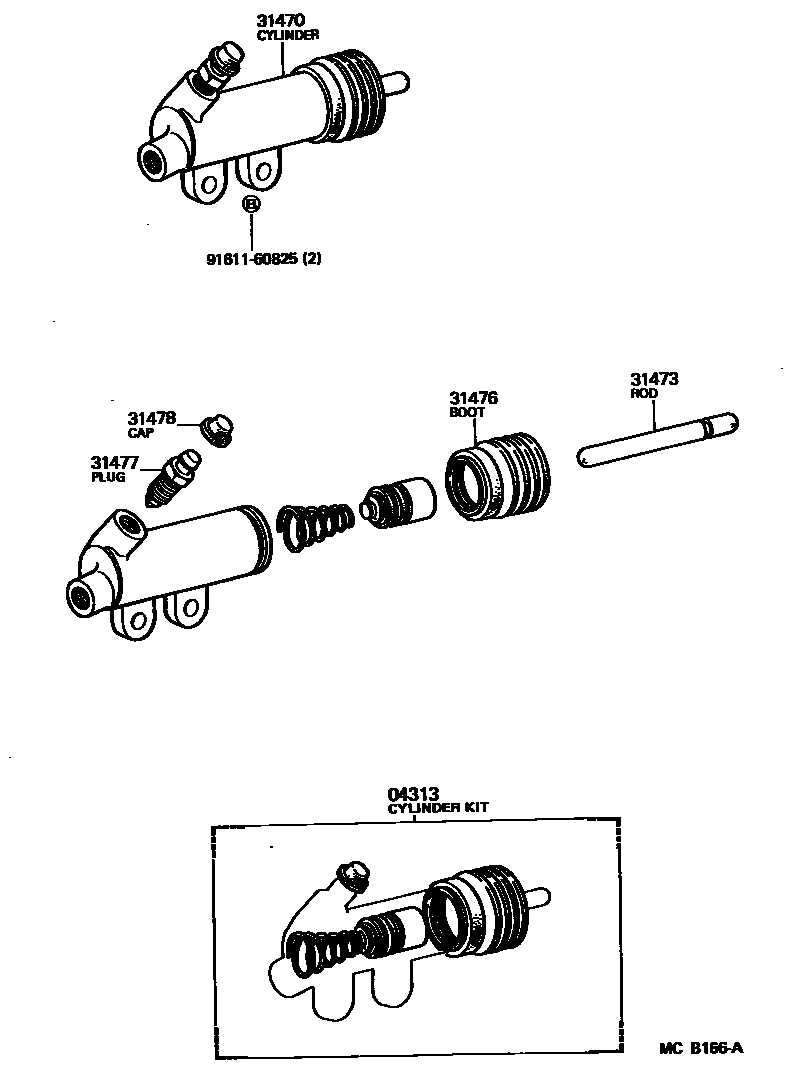

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-22020iGX71,LX70,SX70..5F198408-198808

sub04313-12030

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-22110iLX70..5F198408-198808

sub31470-22111

main31470-30220iGX71,SX70..5F198408-198808

sub31470-30221

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-22010iGX71,LX70,SX70..5F198408-198808

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iGX71,LX70,SX70..5F198408-198808

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iGX71,LX70,SX70..5F198408-198808

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iGX71,LX70,SX70..5F198408-198808

9161160825

main91611-60825

7 parts on this diagram · 1 diagram in section
