Toyota 311140 — DISTRIBUTOR

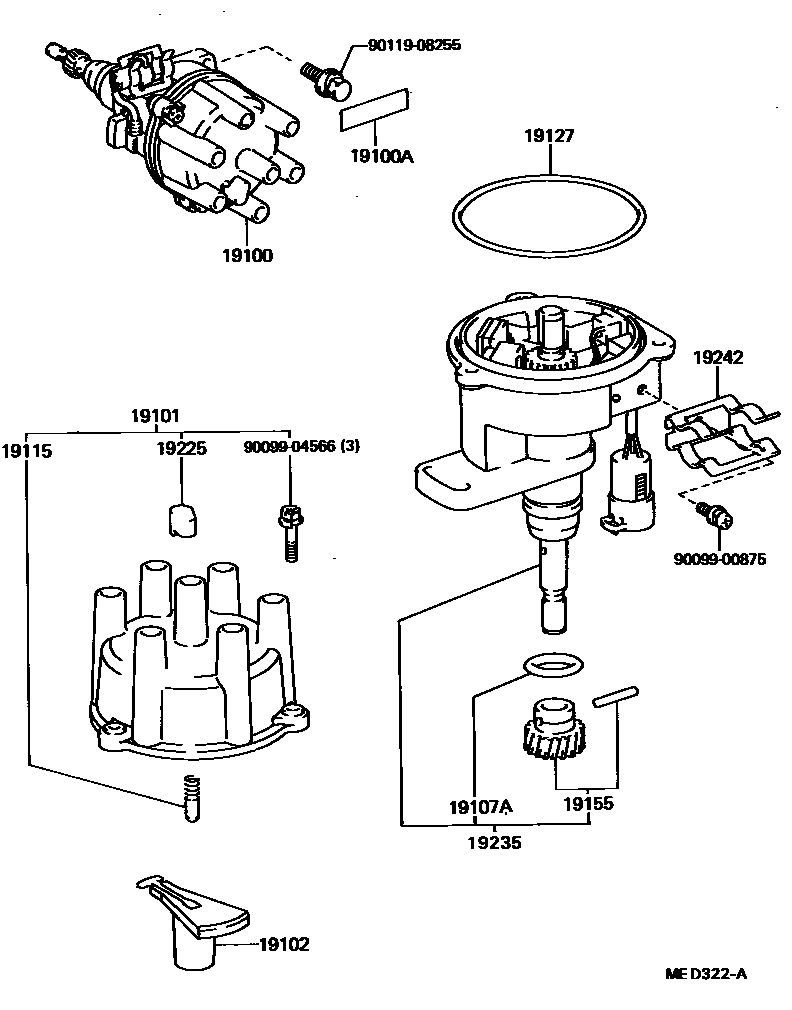

Parts diagram

19100DISTRIBUTOR ASSY

19100ATAPE, SEALING

19101CAP SUB-ASSY, DISTRIBUTOR

19102ROTOR SUB-ASSY, DISTRIBUTOR

19107ARING, O, DISTRIBUTOR HOUSING

19115PIECE, DISTRIBUTOR CAP, CENTER

19127PACKING, DUST PROOF

19155GEAR, SPIRAL, DISTRIBUTOR

19225CAP, RUBBER

19235HOUSING, DISTRIBUTOR

19242CLAMP, CORD

9009900875

9009904566

9011908255

14 parts on this diagram · 5 diagrams in section

DISTRIBUTOR for Toyota 311140

This section contains 47 genuine Toyota parts for the DISTRIBUTOR system of the Toyota 311140. Key components include: DISTRIBUTOR ASSY, TAPE, SEALING, CAP SUB-ASSY, DISTRIBUTOR, ROTOR SUB-ASSY, DISTRIBUTOR, RING, O, DISTRIBUTOR HOUSING.
