IGNITION COIL & SPARK PLUG / GLOW PLUG

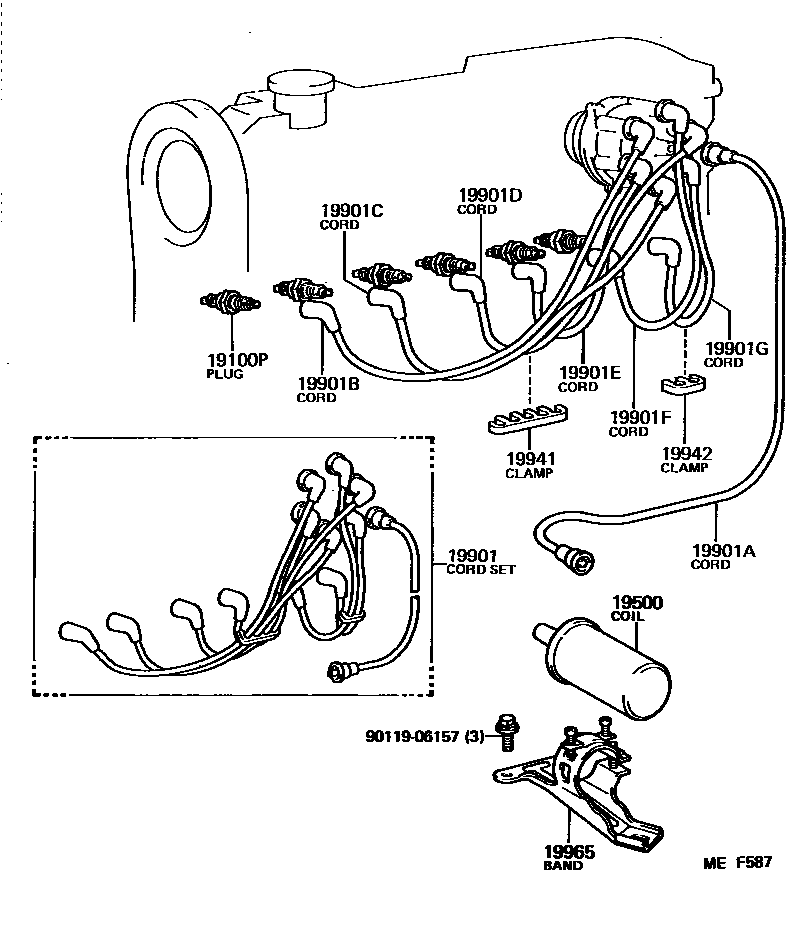

Parts diagram
19100PPLUG, SPARK
main90919-01084i198408-198510
main90919-01091i198408-198808
main90919-01098i198408-198510
main90919-01104i198408-198808
main90919-01119i198408-198808
main90919-01120i198408-198808
main90919-01121i198507-198608
main90919-01122i198507-198608
main90919-01127i198408-198808
main90919-01128i198608-198808
main90919-01128i198408-198507
main90919-01145i198510-198808
main90919-01146i198510-198808
19500COIL ASSY, IGNITION
main90919-02113i198408-198808
main90919-02146i198408-198808
19901CORD SET, COIL & SPARK, W/RESISTIVE
main90919-21318i198408-198806
sub90919-21444
main90919-21353i198408-198510
main90919-21361i198408-198808
main90919-21390i198510-198710
sub90919-21420
main90919-21420i198710-198808
main90919-21444i198806-198808
19901ACORD, COIL RESISTIVE
main90919-13173i198408-198510
main90919-13204i198408-198808
sub90919-13291
main90919-13242i198408-198808
main90919-13291i198710-198808
19901BCORD, SPARK PLUG RESISTIVE, NO.1
main90919-12330i198408-198705
sub90919-12336
main90919-12336i198705-198808
main90919-12451i198408-198806
sub90919-12930
main90919-12540i198408-198510
main90919-12596i198510-198710
sub90919-12841
main90919-12841i198710-198808
main90919-12930i198806-198808
19901CCORD, SPARK PLUG RESISTIVE, NO.2
main90919-12331i198408-198705
sub90919-12337
main90919-12337i198705-198808
main90919-12452i198408-198806
sub90919-12931
main90919-12541i198408-198510
main90919-12597i198510-198710
sub90919-12842
main90919-12842i198710-198808
main90919-12931i198806-198808
19901DCORD, SPARK PLUG RESISTIVE, NO.3
main90919-12332i198408-198705
sub90919-12338
main90919-12338i198705-198808
main90919-12453i198408-198806
sub90919-12932
main90919-12542i198408-198510
main90919-12598i198510-198710
sub90919-12843
main90919-12843i198710-198808
main90919-12932i198806-198808
19901ECORD, SPARK PLUG RESISTIVE, NO.4
main90919-12333i198408-198705
sub90919-12339
main90919-12339i198705-198808
main90919-12454i198408-198806
sub90919-12933
main90919-12543i198408-198510
main90919-12599i198510-198710
sub90919-12844
main90919-12844i198710-198808
main90919-12933i198806-198808
19901FCORD, SPARK PLUG RESISTIVE, NO.5
main90919-12334i198408-198705
sub90919-12340
main90919-12340i198705-198808
main90919-12455i198408-198806
sub90919-12934
main90919-12544i198408-198510
main90919-12600i198510-198710
sub90919-12845
main90919-12845i198710-198808
main90919-12934i198806-198808
19901GCORD, SPARK PLUG RESISTIVE, NO.6
main90919-12335i198408-198705
sub90919-12341
main90919-12341i198705-198808
main90919-12456i198408-198806
sub90919-12935
main90919-12545i198408-198510
main90919-12601i198510-198710
sub90919-12846
main90919-12846i198710-198808
main90919-12935i198806-198808
19941CLAMP, RESISTIVE CORD, NO.1
main90464-00214i198408-198808
main90929-01044i198408-198808
main90929-01100i198510-198808
19942CLAMP, RESISTIVE CORD, NO.2
main90464-00208i198408-198808
main90464-00307i198408-198808
main90464-00347i198408-198510
main90929-01101i198510-198808
19965BAND, IGNITION COIL, NO.1
main90919-03096i198408-198808
9011906157
main90119-06157

14 parts on this diagram · 5 diagrams in section
