ENGINE OVERHAUL GASKET KIT

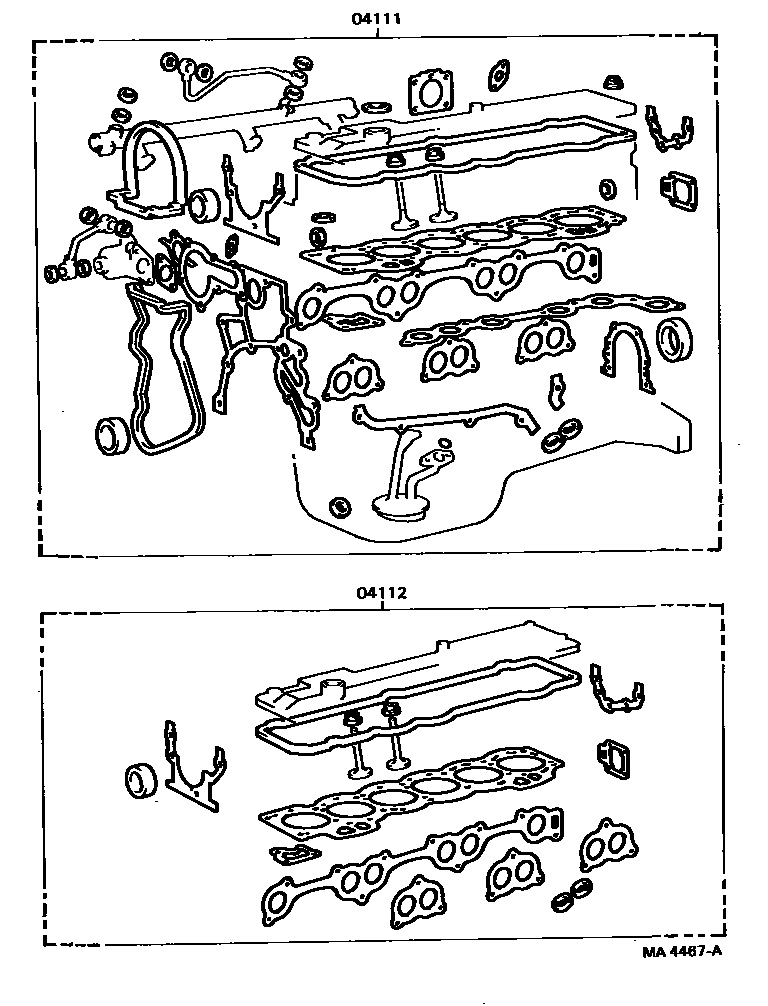

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-41110i198408-198510

main04111-54041i198408-198501

main04111-54042i198501-198808

main04111-54050i198408-198501

main04111-54051i198501-198808

main04111-63011i198408-198610

main04111-63012i198610-198808

main04111-70013i198408-198808

main04111-70021i198408-198608

main04111-70040i198510-198808

main04111-70050i198608-198808

04112GASKET KIT, ENGINE VALVE GRIND

main04112-41090i198408-198510

main04112-54031i198408-198501

main04112-54032i198501-198808

main04112-54040i198408-198501

main04112-54041i198501-198808

main04112-63011i198408-198808

main04112-70011i198408-198808

main04112-70020i198408-198608

main04112-70040i198510-198808

main04112-70050i198608-198808

2 parts on this diagram · 5 diagrams in section
