SHORT BLOCK ASSEMBLY

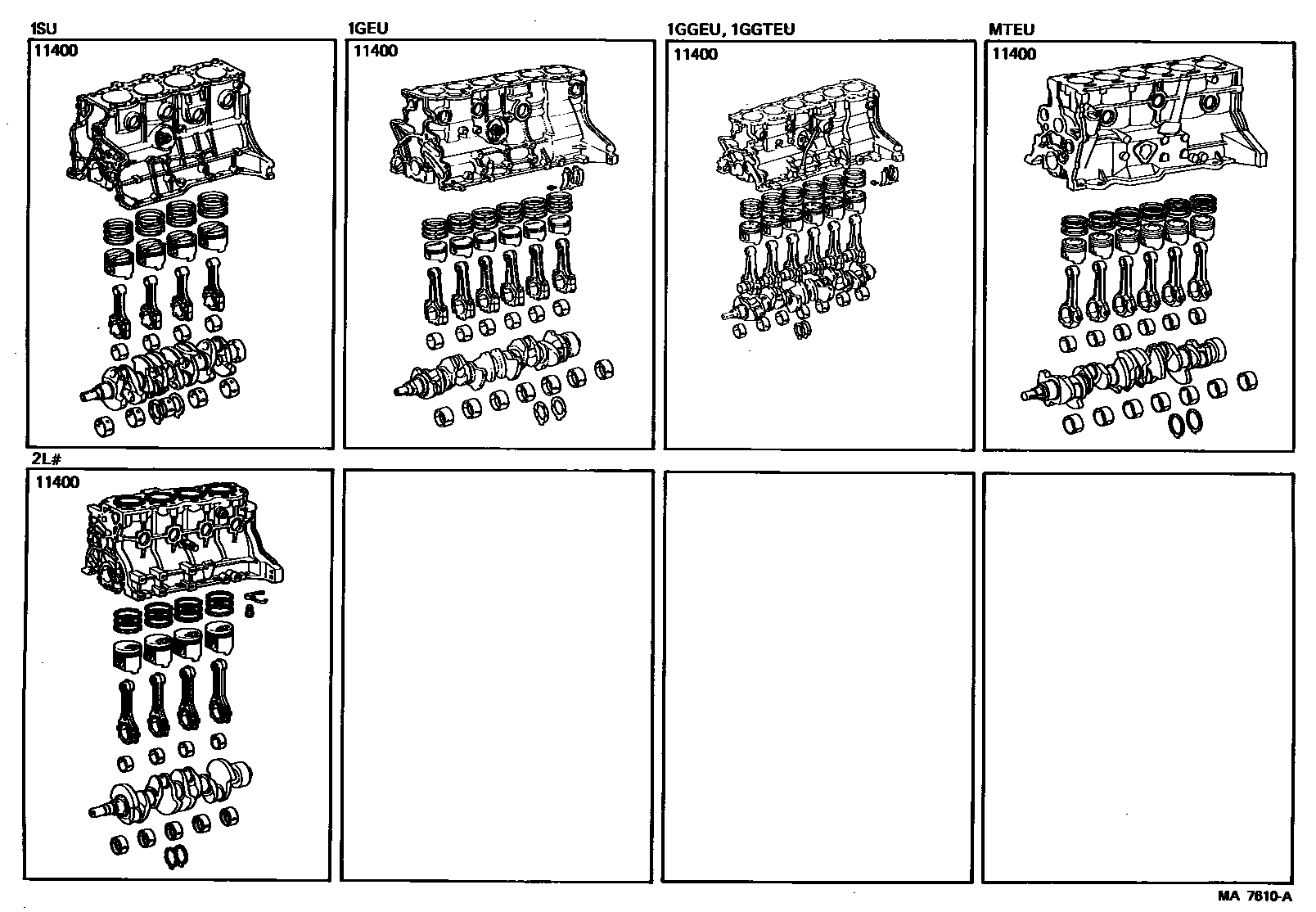

Parts diagram

11400BLOCK ASSY, SHORT

main11400-41110i198408-198510

main11400-54042i198408-198805

main11400-54043i198805-198807

main11400-54044i198807-198808

main11400-54061i198408-198805

main11400-54062i198805-198807

main11400-54063i198807-198808

main11400-63010i198408-198607

main11400-63011i198607-198712

main11400-63012i198712-198808

main11400-70011i198408-198801

main11400-70012i198801-198807

main11400-70060i198608-198805

main11400-70061i198805-198807

main11400-88300i198408-198608

main11400-88350i198510-198808

1 parts on this diagram · 1 diagram in section
