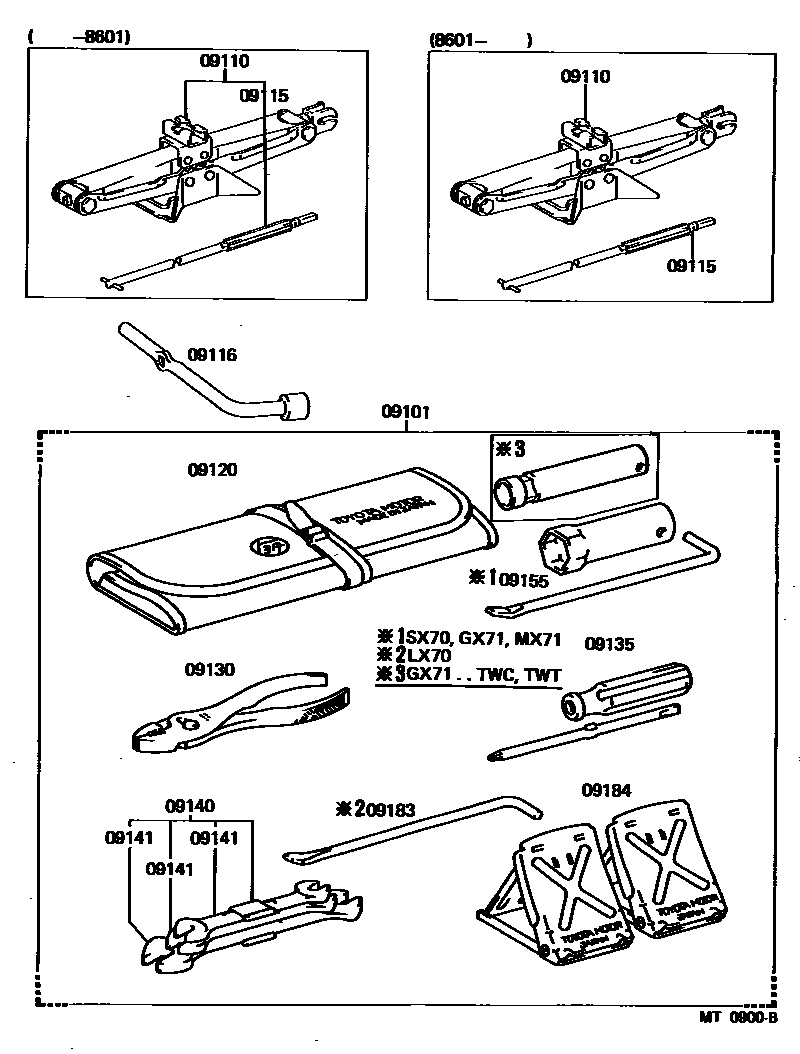

STANDARD TOOL

0001 1 0002 1

09101TOOL SET, STANDARD W/O JACK

main09102-30010iLX70198408-198608

main09102-30011iGX71,MX71,SX70..CBR,EFI,TBO198408-198608

main09102-30015iGX71..TWC,TWT198408-198608

09110JACK ASSY

main09111-14040iGX71,LX70,SX70198601-198603

sub09111-22040

main09111-22040iGX71,LX70,SX70198603-198808

sub09111-22080

sub09113-44010

main09118-22010iGX71,LX70,MX71,SX70198408-198601

sub09111-22040

09115ROD SUB-ASSY, JACK HANDLE

main09115-24010iGX71,LX70,MX71,SX70198408-198808

09116LEVER, JACK HANDLE

main09116-16010iGX71,LX70,MX71,SX70198408-198808

09120BAG, TOOL

main09120-30020iGX71,LX70,MX71,SX70198408-198808

09130PLIERS

main99913-11500iGX71,LX70,MX71,SX70198408-198808

09135DRIVER, SCREW

main99915-10700iGX71,LX70,MX71,SX70198408-198808

09140SPANNER SET

main09140-12011iGX71,LX70,MX71,SX70198408-198608

09141SPANNER

main99914-10810iGX71,LX70,MX71,SX70198408-198808

main99914-11012iGX71,LX70,MX71,SX70198408-198608

main99914-11214iGX71,LX70,SX70198608-198808

main99914-11417iGX71,LX70,MX71,SX70198408-198608

09155WRENCH, SPARK PLUG

main09155-00120iGX71..TWC,TWT198408-198808

main09155-41020iGX71,MX71,SX70..CBR,EFI,TBO198408-198808

09183WRENCH, WHEEL CAP

main09183-00010iLX70198408-198808

09184STOPPER, WHEEL

main09184-00010iGX71,LX70,MX71,SX70198408-198808

12 parts on this diagram · 2 diagrams in section
