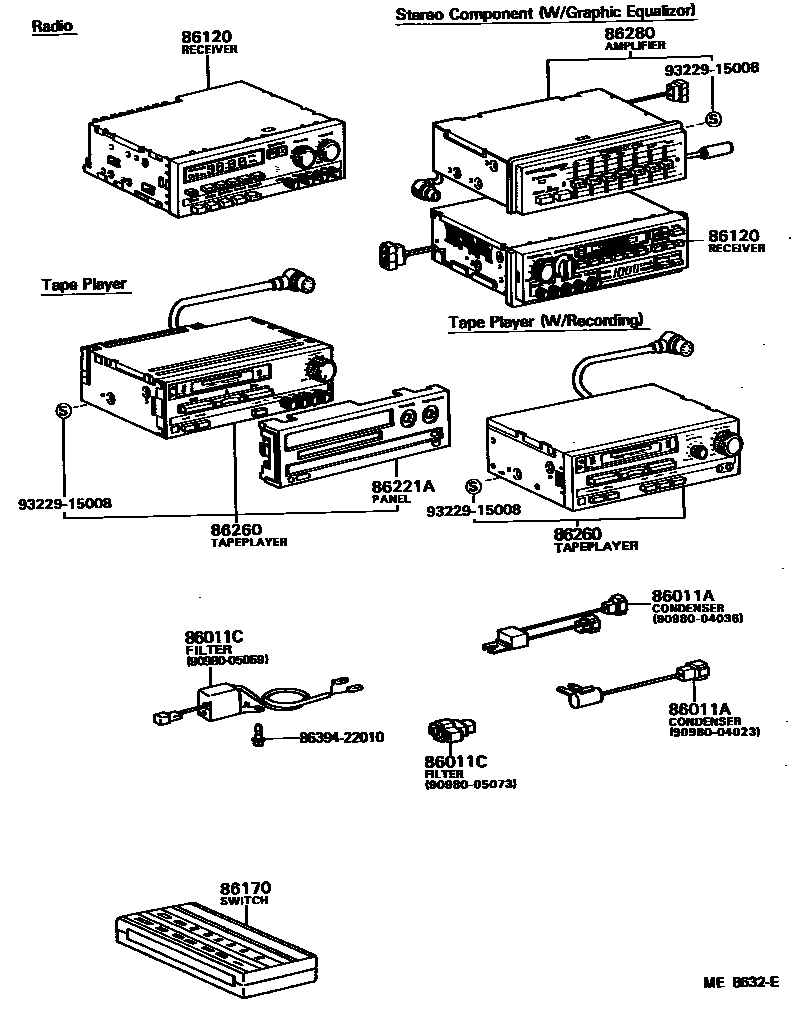

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1

86011ACONDENSER, RADIO SETTING

main90980-04023iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

DEFOGGER

main90980-04036iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

IGNITION COIL

86011CFILTER, NOISE

main90980-05059iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

DEFOGGER

main90980-05073iGX5#,61,LX60,MX51,61,SX60,TX50198012-198407

STOP LAMP SW

86120RECEIVER ASSY, RADIO

main86120-14540iGX61,LX60,SX60..SCM,SDX198208-198405

*19

main86120-17020iGX61,LX60,SX60..SCM,SDX198405-198407

*19

main86120-20401iGX51,MX51198009-198208

*17

main86120-22230iTX50..CTM198003-198208

*25

main86120-22231iLX60,SX60..CTM198208-198407

*25

main86120-22240iGX5#,TX50198003-198009

*18

main86120-22241iGX5#,MX51,TX50198009-198208

*18

main86120-22260iGX51198003-198009

*17

main86120-22270iGX50,TX50..SCM,SDX198003-198208

*19

main86120-22440iGX61,MX61..SLU198208-198407

*20

main86120-22460iGX61,MX61..SLU198208-198407

*17

main86120-22470iGX61,MX61..SLU,STR198208-198407

*18

86170SWITCH AND VOLUME ASSY, RADIO

main86170-22010iGX61,MX61..SLU198208-198407

*20

86221APANEL, RADIO RECEIVER

main86221-22010iGX50,TX50198003-198104

*19

main86221-22020iGX50,TX50198003-198104

*25

main86221-22030iGX50,TX50198104-198208

*19(RADIO=W/LIGHTING SW)

main86221-22040iGX50,TX50198104-198208

*25(RADIO=W/LIGHTING SW)

86260TAPE PLAYER ASSY

main86260-29015iGX50,TX50198003-198104

*25

main86260-29035iGX50,TX50198003-198104

*19

main86260-29045iGX5#,MX51,TX50198003-198203

*17,*18,RECORDING

main86260-29046iGX61,MX61..SLU,STR198208-198407

RECORDING

main86260-29055iGX50,TX50198104-198208

*25(RADIO=W/LIGHTING SW)

main86260-29065iGX50,TX50198104-198208

*19(RADIO=W/LIGHTING SW)

main86260-29075iGX61,LX60,SX60..CTM,SCM,SDX198208-198407

main86260-29105iGX61..SLU..EFI198208-198407

*18

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-29085iGX61,MX61..SLU198208-198407

*20

8639422010

main86394-22010

9098004023

main90980-04023

9098004036

main90980-04036

9098005073

main90980-05073

9322915008

main93229-15008

12 parts on this diagram · 2 diagrams in section
