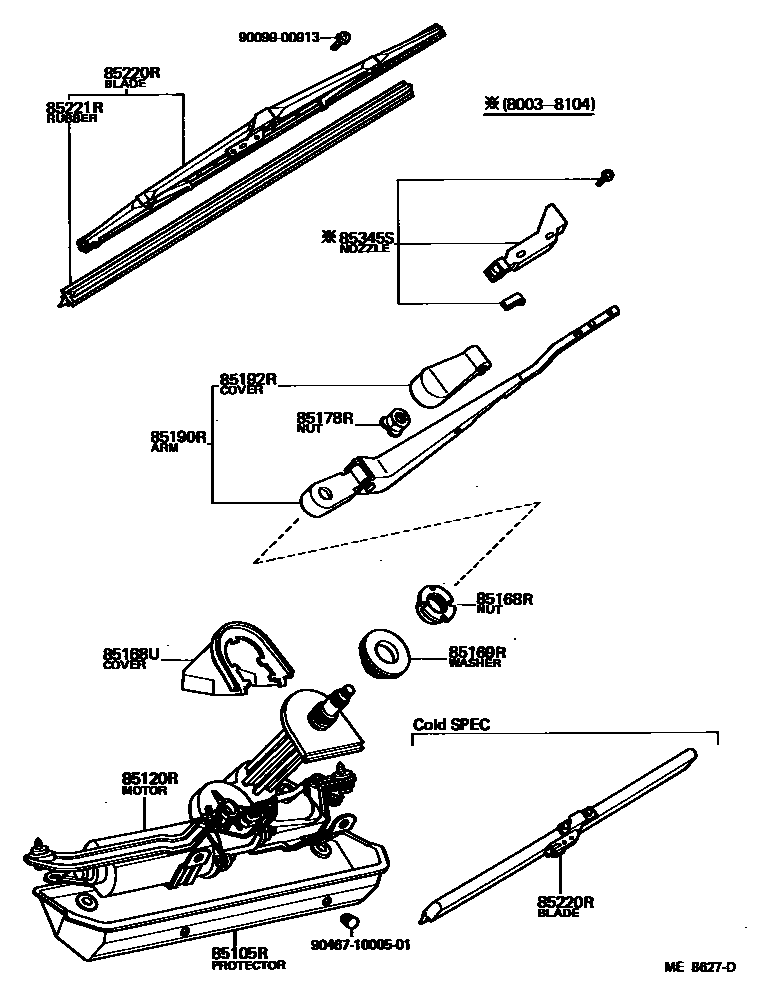

REAR WIPER

85105RPROTECTOR, REAR WIPER

main85105-22010iGX51,MX51..STR198003-198208

85120RMOTOR AND BRACKET ASSY, REAR WIPER

main85110-22130iGX51..STR198003-198104

main85110-22131iGX51,MX51..STR198104-198208

85168RNUT, REAR WIPER LINK PIVOT, NO.1

main90099-05150iGX51,MX51..STR198003-198208

85168UCOVER, REAR WIPER

main85168-22130-01iGX51..STR198003-198009

BLACK,BLACK,TRIM2#

sub85168-22131

main85168-22130-04iGX51..STR198003-198009

BLUE,BLUE,TRIM8#

sub85168-22131

main85168-22130-06iGX51..STR198003-198009

DARK BROWN,BROWN,TRIM4#

sub85168-22131

main85168-22131-01iGX51,MX51..STR198009-198208

BLACK,BLACK,TRIM2#

main85168-22131-04iGX51,MX51..STR198009-198208

BLUE,BLUE,TRIM8#

main85168-22131-06iGX51,MX51..STR198009-198208

DARK BROWN,BROWN,TRIM4#

85169RWASHER, REAR WIPER LINK PIVOT, NO.1

main85179-22130iGX51,MX51..STR198003-198208

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iGX51,MX51..STR198104-198208

main90179-08026iGX51..STR198003-198104

85190RARM ASSY, REAR WIPER

main85190-22260iGX51..STR198003-198104

main85190-22340iGX51,MX51..STR198104-198208

85192RCOVER, REAR WIPER ARM

main85192-14020iGX51,MX51..STR198104-198208

sub85192-13060

main85192-20030iGX51..STR198003-198104

85220RBLADE ASSY, REAR WIPER

main85220-20080iGX51,MX51..STR198003-198208

COLD SPEC

sub85220-20H90

main85220-22120iGX51,MX51..STR198003-198208

85221RBLADE, REAR WIPER

main85221-16030iGX51,MX51..STR198003-198208

sub85221-20H90

85345SNOZZLE, REAR WASHER (FOR WIPER ARM)

main85035-14100iGX51..STR198003-198104

9009900913

main90099-00913

904671000501

main90467-1000501

13 parts on this diagram · 1 diagram in section
