WIRING & CLAMP

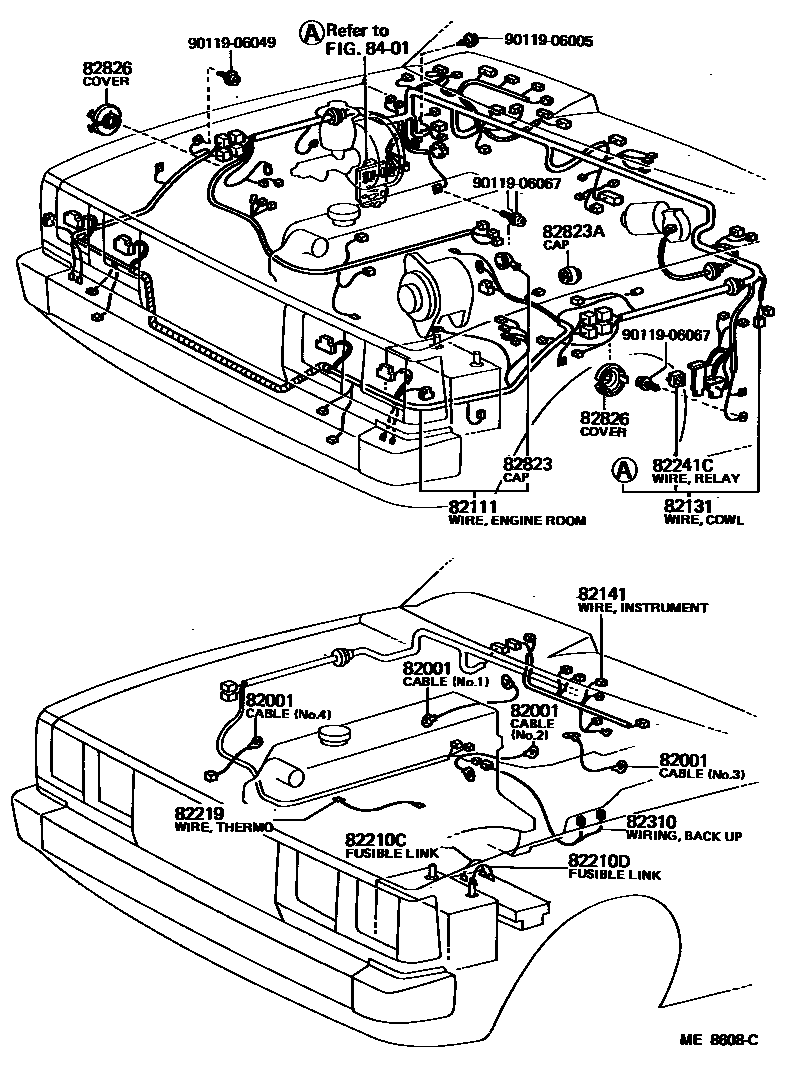

Parts diagram
82001CABLE, BOND, NO.1
main86203-22020i198003-198208
L=250(NO.4)
main90980-07109i198003-198407
L=400(NO.1)
main90980-07118i198003-198208
L=220(NO.3)
main90980-07119i198003-198407
L=350(NO.2)
main90980-07126i198110-198407
L=500(NO.1)
main90980-07174i198009-198108
L=320(NO.1)
main90980-07176i198110-198407
L=300(NO.3)
main90980-07200i198108-198407
L=350(NO.1)
82111WIRE, ENGINE ROOM MAIN
main82111-22010i198208-198407
main82111-22030i198308-198407
main82111-22040i198308-198407
COLD SPEC
main82111-22050i198208-198308
main82111-22051i198308-198407
main82111-22060i198208-198308
main82111-22061i198308-198407
main82111-22070i198208-198407
main82270-22490i198003-198009
main82270-22491i198009-198208
main82270-22500i198003-198208
main82270-22720i198110-198208
82131WIRE, COWL
main82131-22010i198208-198407
main82131-22020i198208-198407
main82131-22031i198402-198407
EXTRA
main82131-22040i198308-198407
main82131-22050i198208-198308
main82131-22051i198308-198407
main82131-22061i198308-198407
main82131-22110i198208-198407
W/*PW
main82131-22121i198308-198407
main82131-22130i198208-198308
main82131-22131i198308-198407
W/ESC OR *AD
main82131-22140i198208-198308
W/*DS
main82131-22141i198308-198407
W/*DS
main82131-22160i198208-198308
main82131-22161i198308-198407
main82131-22170i198208-198308
main82131-22171i198308-198407
main82131-22181i198302-198308
main82131-22182i198308-198407
main82131-22190i198208-198302
main82131-22191i198302-198308
W/ESC,*CC,*SM OR *AD
main82131-22192i198308-198407
W/ESC,*CC,*SM OR *AD
main82131-22490i198308-198407
W/*DS
main82230-22480i198003-198008
main82230-22481i198008-198009
main82230-22500i198003-198008
main82230-22501i198008-198009
main82230-22510i198003-198008
W/*PW,*AD OR *RW
main82230-22511i198008-198009
W/*PW,*AD OR *RW
main82230-22520i198003-198008
main82230-22521i198008-198009
main82230-22530i198003-198008
W/ESC,*CC OR *AD
main82230-22531i198008-198009
W/ESC,*CC OR *AD
main82230-22540i198003-198008
main82230-22541i198008-198009
main82230-2A130i198009-198208
main82230-2A140i198009-198208
main82230-2A150i198009-198108
main82230-2A151i198108-198208
main82230-2A160i198009-198208
W/*PW,*AD OR *RW
main82230-2A170i198009-198208
main82230-2A180i198009-198208
W/ESC,*CC OR *AD
main82230-2A210i198010-198208
EXTRA
main82230-2A250i198110-198208
main82230-2A260i198110-198208
W/*CC,*HC OR *RW
82141WIRE, INSTRUMENT PANEL
main82141-22050i198208-198407
W/*DS
main82141-22121i198208-198407
main82141-22220i198208-198407
main82141-22230i198208-198407
main82141-22240i198208-198407
W/*DS
main82141-22250i198208-198407
main82141-22290i198308-198407
W/*DS
main82201-22270i198003-198208
main82201-22280i198003-198104
main82201-22290i198003-198208
W/RHEOSTAT
main82201-22300i198003-198208
W/*RW
main82201-22480i198110-198208
main82201-22490i198110-198208
W/*RW
82210CFUSIBLE LINK
main90982-08124i198003-198009
main90982-08157i198009-198407
82210DFUSIBLE LINK
main90982-08125i198003-198407
82219WIRE, THERMO SENSOR
main82219-14030i198003-198208
82241CWIRE, RELAY
main82241-22020i198110-198208
main82241-22110i198308-198407
82310WIRING ASSY, TO BACK UP LAMP SWITCH
main82310-22170i198003-198004
main82310-22240i198011-198407
main82310-22250i198011-198208
main82310-22280i198003-198011
main82310-22290i198004-198011
main82310-23020i198208-198407
82823CAP, TERMINAL, NO.1
main82823-12020i198003-198407
82823ACAP, TERMINAL, NO.2
main82823-22040i198003-198208
main82823-30020i198003-198407
82826COVER, WIRING HARNESS HOLE
main82817-22280×2i198003-198407
8401SWITCH & RELAY & COMPUTER
→ Go to FIG 84-01
9011906005
main90119-06005
9011906049
main90119-06049
9011906067
main90119-06067

16 parts on this diagram · 12 diagrams in section
