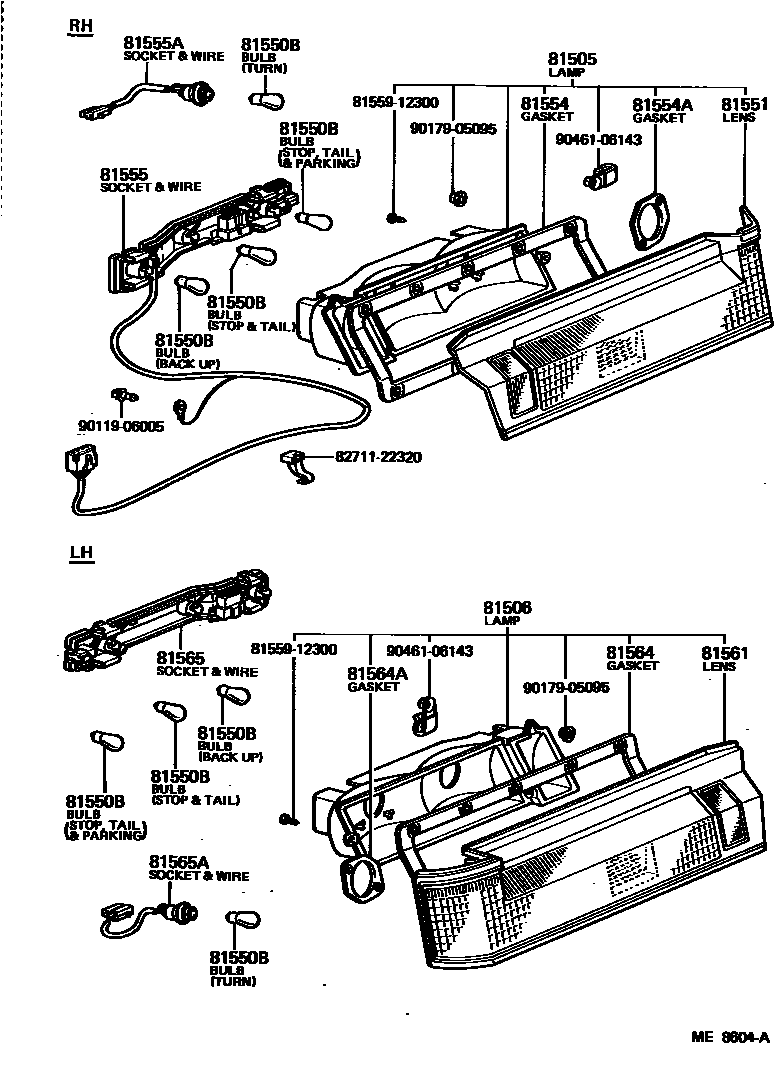

REAR COMBINATION LAMP

0001 1 0002 1

81505LAMP SUB-ASSY, REAR COMBINATION, RH

main81505-29265iGX5#,MX51,TX50198003-198208

main81505-29266iGX61,LX60,MX61,SX60198208-198407

81506LAMP SUB-ASSY, REAR COMBINATION, LH

main81506-29185iGX5#,MX51,TX50198003-198208

main81506-29186iGX61,LX60,MX61,SX60198208-198407

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11230×2iGX61,LX60,MX61,SX60198208-198407

main99132-21210×2iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

81551LENS, REAR COMBINATION LAMP, RH

main81551-22480iGX5#,MX51,TX50198003-198208

main81551-22481iGX61,LX60,MX61,SX60198208-198407

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81554-22480iGX5#,MX51,TX50198003-198208

main81554-22481iGX61,LX60,MX61,SX60198208-198407

81554AGASKET, REAR COMBINATION LAMP BODY, NO.1 RH

main81552-14390iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-22480iGX5#,MX51,TX50198003-198208

main81555-22481iGX61,LX60,MX61,SX60198208-198407

81555ASOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81558-30450iGX5#,MX51,TX50198003-198208

81561LENS, REAR COMBINATION LAMP, LH

main81561-22480iGX5#,MX51,TX50198003-198208

main81561-22481iGX61,LX60,MX61,SX60198208-198407

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81554-22480iGX5#,MX51,TX50198003-198208

main81554-22481iGX61,LX60,MX61,SX60198208-198407

81564AGASKET, REAR COMBINATION LAMP BODY, NO.1 LH

main81552-14390iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81565-22480iGX5#,MX51,TX50198003-198208

main81565-22481iGX61,LX60,MX61,SX60198208-198407

81565ASOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81558-30450iGX5#,MX51,TX50198003-198208

8155912300MOULDING, REAR COMBINATION LAMP, RH

main81559-12300

8271122320WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-22320

9011906005

main90119-06005

9017905095

main90179-05095

9046106143

main90461-06143

18 parts on this diagram · 2 diagrams in section
