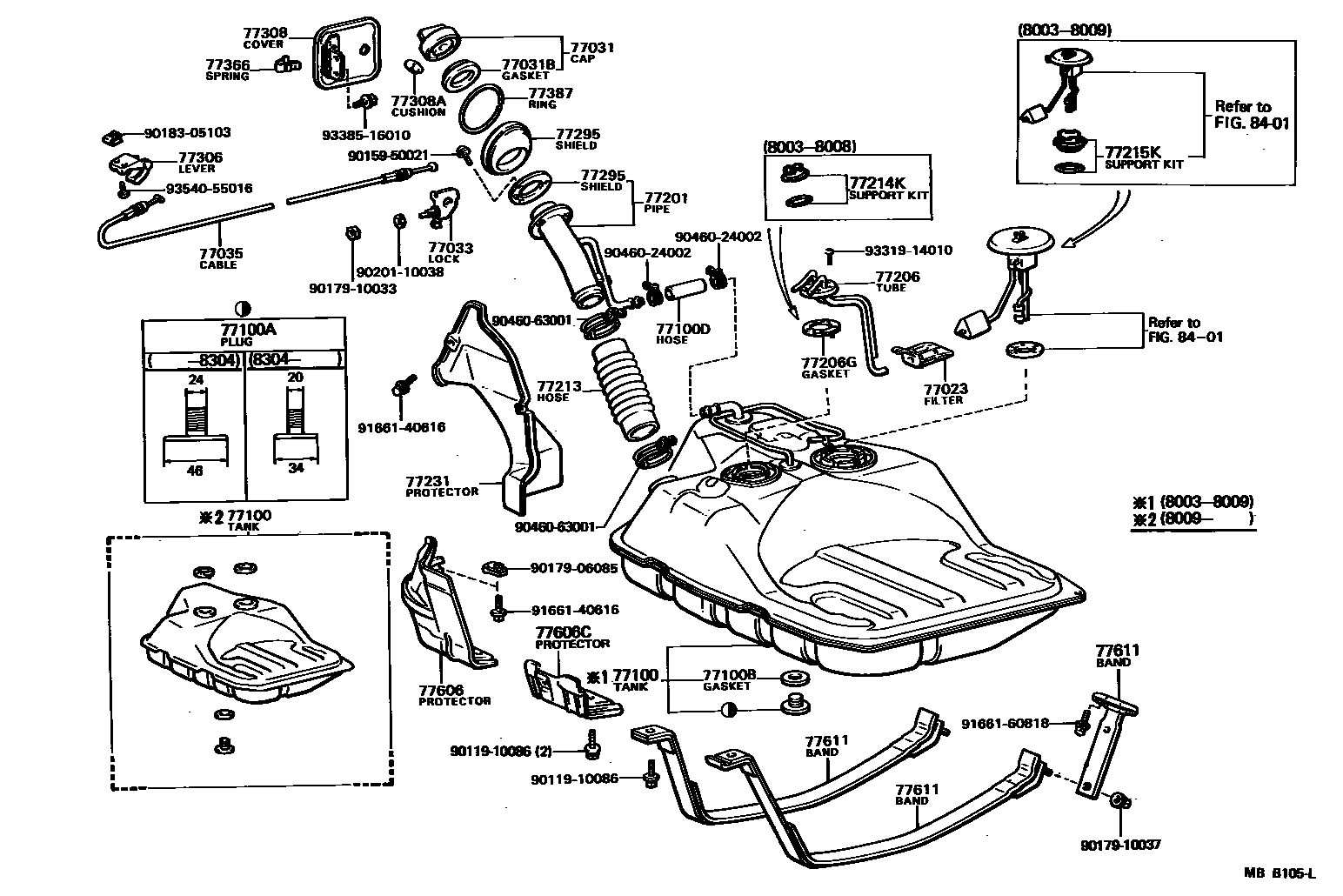

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-12050iSX60,TX50198003-198407

main77023-22040iLX60198308-198407

main77023-30010iGX5#,61,MX51,61198003-198407

77031CAP ASSY, FUEL TANK

main77310-12090iGX5#,TX50198003-198108

main77310-12100iGX5#,61,MX51,61,SX60,TX50198108-198407

main77310-35061iLX60198308-198407

77031BGASKET (FOR FUEL TANK CAP)

main77316-12050iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

77033LOCK SUB-ASSY, FUEL TANK CAP

main77037-12010iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-22050iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

77100TANK ASSY, FUEL

main77001-22180iTX50198003-198009

main77001-22190iGX5#198003-198009

main77001-22230iGX61,MX61,SX60..CBR,EFI,TBO198208-198407

main77001-29015iGX61,LX60,MX61..CTM,SCM,SLU,STR198308-198407

W/DIGITAL METER

77100APLUG(FOR FUEL TANK)

main90341-20003iGX61,LX60,MX61,SX60198304-198407

main90341-24036iGX5#,61,MX51,61,SX60,TX50198003-198304

77100BGASKET(FOR FUEL TANK)

main90430-20006iGX61,LX60,MX61,SX60198304-198407

main90430-24047iGX5#,61,MX51,61,SX60,TX50198003-198304

77100DHOSE, FUEL, NO.1(FOR FUEL TANK)

main90445-22003iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-22100iGX5#,MX51,TX50198003-198203

main77201-22130iGX5#,61,LX60,MX51,61,SX60,TX50198203-198407

77206TUBE SUB-ASSY, FUEL TANK SUCTION

main77017-22021iGX5#198003-198009

main77017-22031iTX50198003-198009

main77017-22060iLX60198308-198407

main77017-22070iGX5#198009-198109

main77017-22080iSX60,TX50198009-198407

main77032-22010iGX5#,61,MX51,61198109-198407

77206GGASKET (FOR FUEL TANK SUCTION TUBE)

main77169-14020iGX5#,61,LX60,MX51,61,SX60,TX50198008-198407

77213HOSE, FUEL TANK SUB INLET

main77213-22050iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

77214KSUPPORT KIT, FUEL TANK TUBE

main04772-12010iGX5#,TX50198003-198008

77215KSUPPORT KIT, FUEL TANK GAGE

main04772-12020iGX5#,TX50198003-198009

77231PROTECTOR, INLET TUBE

main77277-22020iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

77295SHIELD, FUEL FILLER PIPE

main77291-22010iGX5#,MX51,TX50198003-198203

LWR

main77291-22030iGX5#,61,LX60,MX51,61,SX60,TX50198203-198407

LWR

main77292-22050iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

UPR

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main77051-22010-01iGX5#,MX51,TX50198003-198208

BLACK,BLACK,TRIM2#

main77051-22010-02iGX61,LX60,MX61,SX60198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main77051-22010-04iGX5#,MX51,TX50198003-198208

BLUE,BLUE,TRIM8#

main77051-22010-05iGX5#,MX51,TX50198003-198208

GREIGE,BEIGE,TRIM4#

main77051-22010-06iGX61,LX60,MX61,SX60198208-198407

DARK BROWN,BROWN,TRIM4#

main77051-22010-14iGX61,LX60,MX61,SX60198208-198407

BLUE,BLUE,TRIM8#

77308COVER SUB-ASSY, FUEL INLET BOX

main77350-22030iGX5#,MX51,TX50198003-198208

main77350-22040iGX61,LX60,MX61,SX60198208-198407

77308ACUSHION(FOR FUEL INLET BOX COVER)

main90541-08003×2iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

77366SPRING, FUEL FILLER OPENING LID HINGE

main77366-12010iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

77387RING, FUEL INLET BOX

main77391-16010iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77641-22030iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

77606CPROTECTOR, FUEL TANK, NO.2

main77642-22030iGX61,MX61198208-198407

77611BAND, FUEL TANK

main77601-22050iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

FR,RH

main77602-22030iGX50,SX60,TX50198003-198407

FR,LH

main77602-22060iGX51,MX51198003-198208

FR,LH

main77602-22080iGX61,MX61198208-198407

FR,LH

main77603-22030×2iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

RR

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011910086

main90119-10086

9015950021

main90159-50021

9017906085

main90179-06085

9017910033

main90179-10033

9017910037

main90179-10037

9018305103

main90183-05103

9020110038

main90201-10038

9046024002

main90460-24002

9046063001

main90460-63001

9166140616

main91661-40616

9166160818

main91661-60818

9331914010

main93319-14010

9338516010

main93385-16010

9354055016

main93540-55016

40 parts on this diagram · 5 diagrams in section
