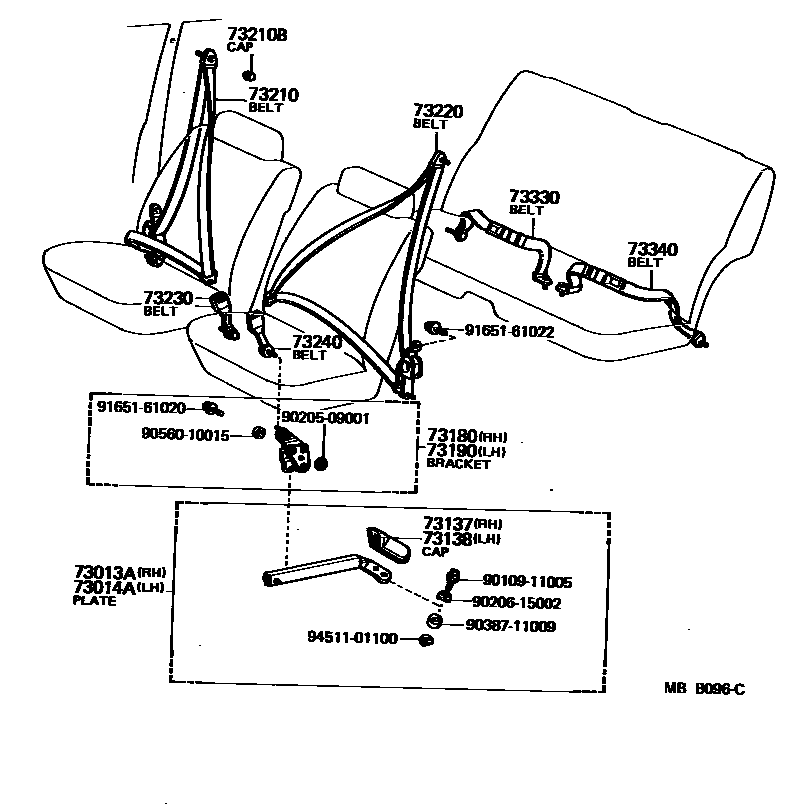

SEAT BELT & CHILD RESTRAINT SEAT

73013APLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, RH

main73013-22010-01iGX5#,MX51,TX50198003-198208

BLACK,BLACK,TRIM2#

main73013-22010-04iGX5#,MX51,TX50198003-198208

BLUE,BLUE,TRIM8#

main73013-22010-06iGX5#,MX51,TX50198003-198208

D-BROWN,BROWN,TRIM4#

main73013-22030-02iGX61,LX60,MX61,SX60198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main73013-22030-06iGX61,LX60,MX61,SX60198208-198407

D-BROWN,BROWN,TRIM4#

main73013-22030-14iGX61,LX60,MX61,SX60198208-198407

BLUE,BLUE,TRIM8#

73014APLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, LH

main73014-22010-01iGX5#,MX51,TX50198003-198208

BLACK,BLACK,TRIM2#

main73014-22010-04iGX5#,MX51,TX50198003-198208

BLUE,BLUE,TRIM8#

main73014-22010-06iGX5#,MX51,TX50198003-198208

D-BROWN,BROWN,TRIM4#

main73014-22030-02iGX61,LX60,MX61,SX60198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main73014-22030-06iGX61,LX60,MX61,SX60198208-198407

D-BROWN,BROWN,TRIM4#

main73014-22030-14iGX61,LX60,MX61,SX60198208-198407

BLUE,BLUE,TRIM8#

73137CAP, FRONT SEAT BELT INNER ANCHOR, RH

main73137-22010-01iGX5#,MX51,TX50198003-198208

BLACK,BLACK,TRIM2#

main73137-22010-04iGX5#,MX51,TX50198003-198208

BLUE,BLUE,TRIM8#

main73137-22010-06iGX5#,MX51,TX50198003-198208

D-BROWN,BROWN,TRIM4#

main73137-22020-02iGX61,LX60,MX61,SX60198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main73137-22020-06iGX61,LX60,MX61,SX60198208-198407

D-BROWN,BROWN,TRIM4#

main73137-22020-14iGX61,LX60,MX61,SX60198208-198407

BLUE,BLUE,TRIM8#

73138CAP, FRONT SEAT BELT INNER ANCHOR, LH

main73138-22010-01iGX5#,MX51,TX50198003-198208

BLACK,BLACK,TRIM2#

main73138-22010-04iGX5#,MX51,TX50198003-198208

BLUE,BLUE,TRIM8#

main73138-22010-06iGX5#,MX51,TX50198003-198208

D-BROWN,BROWN,TRIM4#

main73138-22020-02iGX61,LX60,MX61,SX60198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main73138-22020-06iGX61,LX60,MX61,SX60198208-198407

D-BROWN,BROWN,TRIM4#

main73138-22020-14iGX61,LX60,MX61,SX60198208-198407

BLUE,BLUE,TRIM8#

73180BRACKET ASSY, SEAT BELT INNER ANCHOR, RH

main73011-22010iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

73190BRACKET ASSY, SEAT BELT INNER ANCHOR, LH

main73012-22010iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-22170-01iGX5#,MX51,TX50198003-198208

BLACK,BLACK,TRIM2#

main73210-22170-04iGX5#,MX51,TX50198003-198208

BLUE,BLUE,TRIM8#

main73210-22170-06iGX5#,MX51,TX50198003-198208

D-BROWN,BROWN,TRIM4#

main73210-22220-02iGX61,LX60,MX61,SX60198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main73210-22220-06iGX61,LX60,MX61,SX60198208-198407

D-BROWN,BROWN,TRIM4#

main73210-22220-14iGX61,LX60,MX61,SX60198208-198407

BLUE,BLUE,TRIM8#

73210BCAP (FOR FRONT SEAT OUTER BELT)

main73178-12010-04×2iGX5#,MX51,TX50198003-198208

BLUE,BLUE,TRIM8#

main73178-12010-11×2iGX5#,MX51,TX50198003-198208

BLACK,BLACK,TRIM2#

main73178-12010-26×2iGX5#,MX51,TX50198003-198208

D-BROWN,BROWN,TRIM4#

73220BELT ASSY, FRONT SEAT OUTER, LH

main73210-22170-01iGX5#,MX51,TX50198003-198208

BLACK,BLACK,TRIM2#

main73210-22170-04iGX5#,MX51,TX50198003-198208

BLUE,BLUE,TRIM8#

main73210-22170-06iGX5#,MX51,TX50198003-198208

D-BROWN,BROWN,TRIM4#

main73210-22220-02iGX61,LX60,MX61,SX60198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main73210-22220-06iGX61,LX60,MX61,SX60198208-198407

D-BROWN,BROWN,TRIM4#

main73210-22220-14iGX61,LX60,MX61,SX60198208-198407

BLUE,BLUE,TRIM8#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-22130-01iGX5#,MX51,TX50198003-198208

BLACK,BLACK,TRIM2#

main73230-22130-02iGX61,LX60,MX61,SX60198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main73230-22130-04iGX5#,MX51,TX50198003-198208

BLUE,BLUE,TRIM8#

main73230-22130-06iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

D-BROWN,BROWN,TRIM4#

main73230-22130-14iGX61,LX60,MX61,SX60198208-198407

BLUE,BLUE,TRIM8#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-22130-01iGX5#,MX51,TX50198003-198208

BLACK,BLACK,TRIM2#

main73230-22130-02iGX61,LX60,MX61,SX60198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main73230-22130-04iGX5#,MX51,TX50198003-198208

BLUE,BLUE,TRIM8#

main73230-22130-06iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

D-BROWN,BROWN,TRIM4#

main73230-22130-14iGX61,LX60,MX61,SX60198208-198407

BLUE,BLUE,TRIM8#

73330BELT ASSY, REAR SEAT LAP TYPE, RH

main73330-22030-01iGX5#,MX51,TX50198003-198208

BLACK,BLACK,TRIM2#

main73330-22030-04iGX5#,MX51,TX50198003-198208

BLUE,BLUE,TRIM8#

main73330-22030-06iGX5#,MX51,TX50198003-198208

D-BROWN,BROWN,TRIM4#

main73330-22050-02iGX61,LX60,MX61,SX60198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main73330-22050-06iGX61,LX60,MX61,SX60198208-198407

D-BROWN,BROWN,TRIM4#

main73330-22050-14iGX61,LX60,MX61,SX60198208-198407

BLUE,BLUE,TRIM8#

73340BELT ASSY, REAR SEAT LAP TYPE, LH

main73330-22030-01iGX5#,MX51,TX50198003-198208

BLACK,BLACK,TRIM2#

main73330-22030-04iGX5#,MX51,TX50198003-198208

BLUE,BLUE,TRIM8#

main73330-22030-06iGX5#,MX51,TX50198003-198208

D-BROWN,BROWN,TRIM4#

main73330-22050-02iGX61,LX60,MX61,SX60198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main73330-22050-06iGX61,LX60,MX61,SX60198208-198407

D-BROWN,BROWN,TRIM4#

main73330-22050-14iGX61,LX60,MX61,SX60198208-198407

BLUE,BLUE,TRIM8#

9010911005

main90109-11005

9020509001

main90205-09001

9020615002

main90206-15002

9038711009

main90387-11009

9056010015

main90560-10015

9165161020

main91651-61020

9165161022

main91651-61022

9451101100

main94511-01100

21 parts on this diagram · 1 diagram in section
