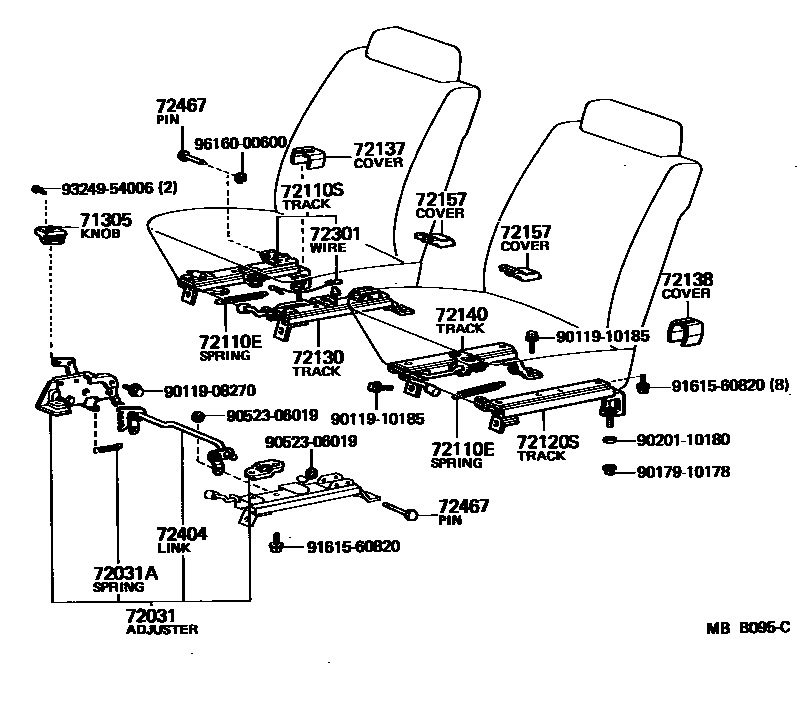

SEAT TRUCK

71305KNOB SUB-ASSY, FRONT SEAT ADJUSTING

main72457-14010-01iGX5#,MX51,TX50198003-198208

BLACK,BLACK,TRIM2#

main72457-14010-04iGX5#,MX51,TX50198003-198208

BLUE,BLUE,TRIM8#

main72457-14010-12iGX61,LX60,MX61,SX60198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main72457-14010-16iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

D-BROWN,BROWN,TRIM4#

main72457-14010-34iGX61,LX60,MX61,SX60198208-198407

BLUE,BLUE,TRIM8#

72031ADJUSTER ASSY, FRONT SEAT VERTICAL

main72310-22030iGX5#,TX50198003-198109

main72310-22060iGX5#,61,LX60,MX51,61,SX60,TX50198109-198407

72031ASPRING, TENSION (FOR VERTICAL ADJUSTER)

main90506-18025iGX5#,TX50198003-198109

main90506-22001iGX5#,61,LX60,MX51,61,SX60,TX50198109-198407

72110ESPRING, TENSION, NO.1 (FOR SEAT TRACK)

main90506-18008×2iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

72110STRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT)

main72110-22170iGX5#,MX51,TX50198003-198208

main72110-22280iGX61,LX60,MX61,SX60198208-198407

72120STRACK ASSY, LH SEAT, OUTER (FOR SEPARATE SEAT)

main72120-22210iGX5#,MX51,TX50198003-198208

main72120-22280iGX61,LX60,MX61,SX60198208-198407

72130TRACK ASSY, RH SEAT, INNER

main72130-22100iGX5#,MX51,TX50198003-198208

main72130-22150iGX61,LX60,MX61,SX60198208-198407

72137COVER, SEAT TRACK, OUTER RH

main72137-22011-01iGX5#,MX51,TX50198003-198207

BLACK,BLACK,TRIM2#

main72137-22011-04iGX5#,MX51,TX50198003-198207

BLUE,BLUE,TRIM8#

main72137-22011-06iGX5#,MX51,TX50198003-198207

D-BROWN,BROWN,TRIM4#

main72137-22012-01iGX5#,MX51,TX50198207-198208

BLACK,BLACK,TRIM2#

main72137-22012-04iGX5#,MX51,TX50198207-198208

BLUE,BLUE,TRIM8#

main72137-22012-06iGX5#,61,LX60,MX51,61,SX60,TX50198207-198407

D-BROWN,BROWN,TRIM4#

main72137-22012-12iGX61,LX60,MX61,SX60198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main72137-22012-14iGX61,LX60,MX61,SX60198208-198407

BLUE,BLUE,TRIM8#

72138COVER, SEAT TRACK, OUTER LH

main72138-22020-01iGX5#,MX51,TX50198003-198208

BLACK,BLACK,TRIM2#

main72138-22020-04iGX5#,MX51,TX50198003-198208

BLUE,BLUE,TRIM8#

main72138-22020-06iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

D-BROWN,BROWN,TRIM4#

main72138-22020-12iGX61,LX60,MX61,SX60198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main72138-22020-14iGX61,LX60,MX61,SX60198208-198407

BLUE,BLUE,TRIM8#

72140TRACK ASSY, LH SEAT, INNER

main72140-22090iGX5#,MX51,TX50198003-198208

main72140-22140iGX61,LX60,MX61,SX60198208-198407

72157COVER, SEAT TRACK BRACKET, INNER

main72157-22040-01×2iGX5#,MX51,TX50198003-198208

BLACK,BLACK,TRIM2#

main72157-22040-04×2iGX5#,MX51,TX50198003-198208

BLUE,BLUE,TRIM8#

main72157-22040-06×2iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

D-BROWN,BROWN,TRIM4#

main72157-22040-12×2iGX61,LX60,MX61,SX60198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main72157-22040-14×2iGX61,LX60,MX61,SX60198208-198407

BLUE,BLUE,TRIM8#

72301WIRE SUB-ASSY, SEAT TRACK EQUALIZING

main72301-22070iGX5#,MX51,TX50198003-198208

main72301-22090iGX61,LX60,MX61,SX60198208-198407

72404LINK SUB-ASSY, VERTICAL SEAT

main72404-20010iGX5#,TX50198003-198005

main72404-20011iGX5#,61,LX60,MX51,61,SX60,TX50198005-198407

72467PIN, VERTICAL ADJUSTER

main72467-20010×2iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

9011908270

main90119-08270

9011910185

main90119-10185

9017910178

main90179-10178

9020110180

main90201-10180

9052306019

main90523-06019

9161560820

main91615-60820

9324954006

main93249-54006

9616000600

main96160-00600

22 parts on this diagram · 1 diagram in section
