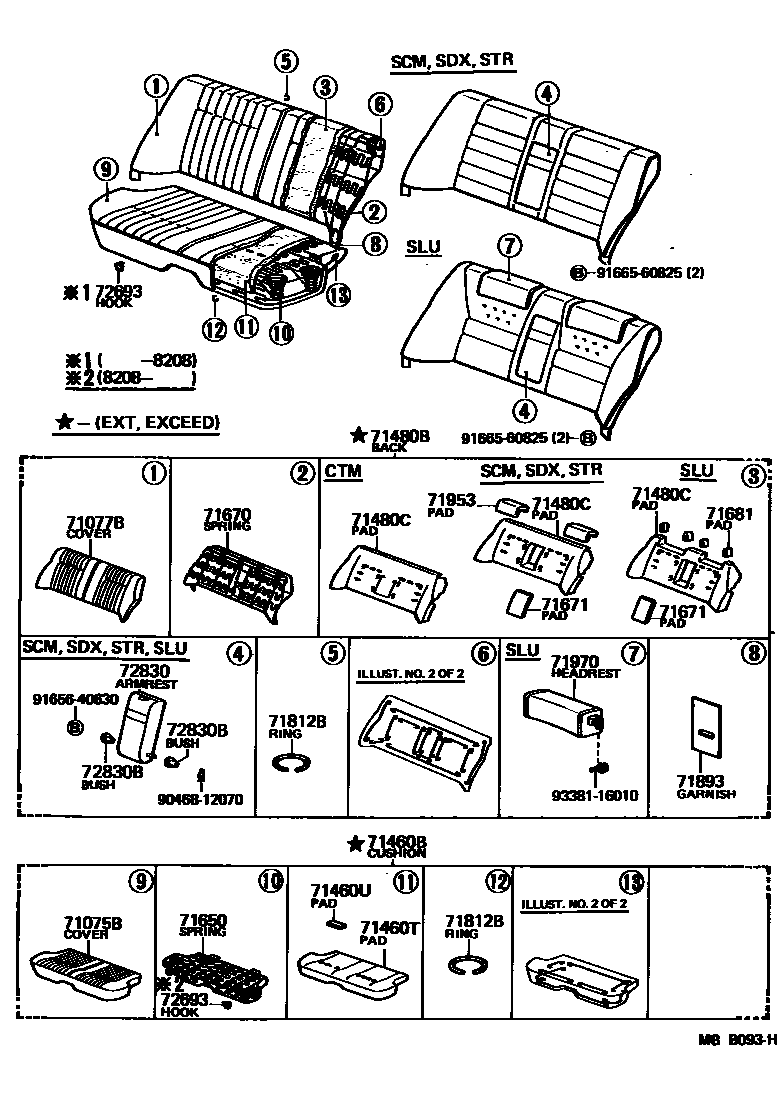

REAR SEAT & SEAT TRACK

0001 1 0002 1

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71065-22020-03iGX51,MX51..STR198110-198208

FB,GRAY,GRAY,TRIM2#

main71065-22020-04iGX51,MX51..STR198110-198208

FB,BLUE,BLUE,TRIM8#

main71065-22020-05iGX51,MX51..STR198110-198208

FB,GREIGE,BEIGE,TRIM4#

main71065-22021-02iMX61..STR198208-198407

FB,ROSE BEIGE,RED/MAROON,TRIM3#

main71065-22021-04iMX61..STR198208-198407

FB,BLUE,BLUE,TRIM8#

main71065-22021-06iMX61..STR198208-198407

FB,L-BROWN,BROWN,TRIM4#

main71075-22370-03iTX50..CTM198003-198104

FB,GRAY,GRAY,TRIM2#

main71075-22370-04iTX50..CTM198003-198104

FB,BLUE,BLUE,TRIM8#

main71075-22370-05iTX50..CTM198003-198104

FB,GREIGE,BEIGE,TRIM4#

main71075-22371-02iLX60,SX60..CTM198208-198407

FB,ROSE BEIGE,RED/MAROON,TRIM3#

main71075-22371-04iLX60,SX60..CTM198208-198407

FB,BLUE,BLUE,TRIM8#

main71075-22371-06iLX60,SX60..CTM198208-198407

FB,L-BROWN,BROWN,TRIM4#

main71075-22380-03iGX50,TX50..SCM,SDX198003-198104

FB,GRAY,GRAY,TRIM2#

main71075-22380-04iGX50,TX50..SCM,SDX198003-198104

FB,BLUE,BLUE,TRIM8#

main71075-22380-05iGX50,TX50..SCM,SDX198003-198104

FB,GREIGE,BEIGE,TRIM4#

main71075-22381-03iGX50,TX50..SCM,SDX198104-198208

FB,GRAY,GRAY,TRIM2#

main71075-22381-04iGX50,TX50..SCM,SDX198104-198208

FB,BLUE,BLUE,TRIM8#

main71075-22381-05iGX50,TX50..SCM,SDX198104-198208

FB,GREIGE,BEIGE,TRIM4#

main71075-22382-02iGX61,LX60,SX60..SCM,SDX198208-198407

FB,ROSE BEIGE,RED/MAROON,TRIM3#

main71075-22382-04iGX61,LX60,SX60..SCM,SDX198208-198407

FB,BLUE,BLUE,TRIM8#

main71075-22382-06iGX61,LX60,SX60..SCM,SDX198208-198407

FB,L-BROWN,BROWN,TRIM4#

main71075-22390-03iGX51..STR198003-198110

FB,GRAY,GRAY,TRIM2#

main71075-22390-04iGX51..STR198003-198110

FB,BLUE,BLUE,TRIM8#

main71075-22390-05iGX51..STR198003-198110

FB,GREIGE,BEIGE,TRIM4#

main71075-22400-03iGX51,MX51..SLU198003-198208

FB,GRAY,GRAY,TRIM2#

main71075-22400-04iGX51,MX51..SLU198003-198208

FB,BLUE,BLUE,TRIM8#

main71075-22400-05iGX51,MX51..SLU198003-198208

FB,GREIGE,BEIGE,TRIM4#

main71075-22401-02iGX61,MX61..SLU..(EFI,TBO)198208-198407

FB,ROSE BEIGE,RED/MAROON,TRIM3#

main71075-22401-04iGX61,MX61..SLU..(EFI,TBO)198208-198407

FB,BLUE,BLUE,TRIM8#

main71075-22401-06iGX61,MX61..SLU..(EFI,TBO)198208-198407

FB,L-BROWN,BROWN,TRIM4#

main71075-22490-02iGX61..TWC198208-198308

FB,ROSE BEIGE,RED/MAROON,TRIM3#

main71075-22490-04iGX61..TWC198208-198308

FB,BLUE,BLUE,TRIM8#

main71075-22490-06iGX61..TWC198208-198308

FB,L-BROWN,BROWN,TRIM4#

main71075-22490-12iGX61..TWC198308-198407

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71075-22490-14iGX61..TWC198308-198407

FB,BLUE,BLUE,TRIM8#

main71075-22490-16iGX61..TWC198308-198407

FB,D-BROWN,BROWN,TRIM4#

main71075-22570-04iTX50..SCM198202-198203

FB,EXTRA,BLUE,BLUE,TRIM8#

main71075-22570-05iGX50198011-198208

FB,EXTRA,GREIGE,BEIGE,TRIM4#

main71075-22590iGX61..TWC198402-198407

EXCEED

main71075-22640-04iGX61,LX60,SX60..SCM,SDX198302-198407

FB,EXTRA,BLUE,BLUE,TRIM8#

main71075-22640-06iGX61..SDX198302-198407

FB,EXTRA,BROWN,BROWN,TRIM4#

main71075-22680-04iGX61..SLU..EFI198305-198401

EXCEED,BLUE,BLUE,TRIM8#

main71075-22680-05iGX61..SLU..EFI198305-198401

EXCEED,BEIGE,BEIGE,TRIM4#

main71075-22690iGX61..TWC198305-198401

EXCEED

main71075-95831-04iGX51..SLU198106-198107

SUPER WHITE,FB,BLUE,BLUE,TRIM8#

main71075-95831-05iGX51..SLU198108-198109

EXCEED,FB,GREIGE,BEIGE,TRIM4#

main71075-95833-03iTX50..CTM198104-198208

FB,GRAY,GRAY,TRIM2#

main71075-95833-04iTX50..CTM198104-198208

FB,BLUE,BLUE,TRIM8#

main71075-95833-05iTX50..CTM198104-198208

FB,GREIGE,BEIGE,TRIM4#

71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)

main71077-22470-03iTX50..CTM198003-198104

FB,GRAY,GRAY,TRIM2#

main71077-22470-04iTX50..CTM198003-198104

FB,BLUE,BLUE,TRIM8#

main71077-22470-05iTX50..CTM198003-198104

FB,GREIGE,BEIGE,TRIM4#

main71077-22480-03iGX50,TX50..SCM,SDX198003-198104

FB,GRAY,GRAY,TRIM2#

main71077-22480-04iGX50,TX50..SCM,SDX198003-198104

FB,BLUE,BLUE,TRIM8#

main71077-22480-05iGX50,TX50..SCM,SDX198003-198104

FB,GREIGE,BEIGE,TRIM4#

main71077-22481-03iGX50,TX50..SCM,SDX198104-198208

FB,GRAY,GRAY,TRIM2#

main71077-22481-04iGX50,TX50..SCM,SDX198104-198208

FB,BLUE,BLUE,TRIM8#

main71077-22481-05iGX50,TX50..SCM,SDX198104-198208

FB,GREIGE,BEIGE,TRIM4#

main71077-22482-02iGX61,LX60,SX60..SCM,SDX198208-198407

FB,ROSE BEIGE,RED/MAROON,TRIM3#

main71077-22482-04iGX61,LX60,SX60..SCM,SDX198208-198407

FB,BLUE,BLUE,TRIM8#

main71077-22482-06iGX61,LX60,SX60..SCM,SDX198208-198407

FB,L-BROWN,BROWN,TRIM4#

main71077-22490-03iGX51..STR198003-198110

FB,GRAY,GRAY,TRIM2#

main71077-22490-04iGX51..STR198003-198110

FB,BLUE,BLUE,TRIM8#

main71077-22490-05iGX51..STR198003-198110

FB,GREIGE,BEIGE,TRIM4#

main71077-22491-03iGX51,MX51..STR198110-198208

FB,GRAY,GRAY,TRIM2#

main71077-22491-04iGX51,MX51..STR198110-198208

FB,BLUE,BLUE,TRIM8#

main71077-22491-05iGX51,MX51..STR198110-198208

FB,GREIGE,BEIGE,TRIM4#

main71077-22492-02iMX61..STR198208-198407

FB,ROSE BEIGE,RED/MAROON,TRIM3#

main71077-22492-04iMX61..STR198208-198407

FB,BLUE,BLUE,TRIM8#

main71077-22492-06iMX61..STR198208-198407

FB,L-BROWN,BROWN,TRIM4#

main71077-22500-03iGX51,MX51..SLU198003-198208

FB,GRAY,GRAY,TRIM2#

main71077-22500-04iGX51,MX51..SLU198003-198208

FB,BLUE,BLUE,TRIM8#

main71077-22500-05iGX51,MX51..SLU198003-198208

FB,GREIGE,BEIGE,TRIM4#

main71077-22501-02iGX61,MX61..SLU..(EFI,TBO)198208-198407

FB,ROSE BEIGE,RED/MAROON,TRIM3#

main71077-22501-04iGX61,MX61..SLU..(EFI,TBO)198208-198407

FB,BLUE,BLUE,TRIM8#

main71077-22501-06iGX61,MX61..SLU..(EFI,TBO)198208-198407

FB,L-BROWN,BROWN,TRIM4#

main71077-22690-04iGX50198108-198208

FB,EXTRA,BLUE,BLUE,TRIM8#

main71077-22690-05iGX50198011-198208

FB,EXTRA,GREIGE,BEIGE,TRIM4#

main71077-22720-02iGX61..TWC198208-198308

FB,ROSE BEIGE,RED/MAROON,TRIM3#

main71077-22720-04iGX61..TWC198208-198308

FB,BLUE,BLUE,TRIM8#

main71077-22720-06iGX61..TWC198208-198308

FB,L-BROWN,BROWN,TRIM4#

main71077-22720-12iGX61..TWC198308-198407

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71077-22720-14iGX61..TWC198308-198407

FB,BLUE,BLUE,TRIM8#

main71077-22720-16iGX61..TWC198308-198407

FB,D-BROWN,BROWN,TRIM4#

main71077-22750-02iLX60,SX60..CTM198208-198407

FB,ROSE BEIGE,RED/MAROON,TRIM3#

main71077-22750-04iLX60,SX60..CTM198208-198407

FB,BLUE,BLUE,TRIM8#

main71077-22750-06iLX60,SX60..CTM198208-198407

FB,L-BROWN,BROWN,TRIM4#

main71077-22790-04iGX61,LX60,SX60..SCM,SDX198302-198407

FB,EXTRA,BLUE,BLUE,TRIM8#

main71077-22790-06iGX61..SDX198302-198407

FB,EXTRA,BROWN,BROWN,TRIM4#

main71077-22830-04iGX61..SLU..EFI198305-198401

EXCEED,BLUE,BLUE,TRIM8#

main71077-22830-05iGX61..SLU..EFI198305-198401

EXCEED,BEIGE,BEIGE,TRIM4#

main71077-22840iGX61..TWC198305-198401

EXCEED

main71077-2A140iGX61..TWC198402-198407

EXCEED

main71077-95826-04iGX51..SLU198106-198107

SUPER WHITE,FB,BLUE,BLUE,TRIM8#

main71077-95826-05iGX51..SLU198108-198109

EXCEED,FB,GREIGE,BEIGE,TRIM4#

main71077-95831-03iTX50..CTM198104-198208

FB,GRAY,GRAY,TRIM2#

main71077-95831-04iTX50..CTM198104-198208

FB,BLUE,BLUE,TRIM8#

main71077-95831-05iTX50..CTM198104-198208

FB,GREIGE,BEIGE,TRIM4#

71460BCUSHION ASSY, REAR SEAT (FOR BENCH TYPE)

main71460-22370-03iTX50..CTM198003-198104

FB,GRAY,GRAY,TRIM2#

main71460-22370-04iTX50..CTM198003-198104

FB,BLUE,BLUE,TRIM8#

main71460-22370-05iTX50..CTM198003-198104

FB,GREIGE,BEIGE,TRIM4#

main71460-22380-03iGX50,TX50..SCM,SDX198003-198104

FB,GRAY,GRAY,TRIM2#

main71460-22380-04iGX50,TX50..SCM,SDX198003-198104

FB,BLUE,BLUE,TRIM8#

main71460-22380-05iGX50,TX50..SCM,SDX198003-198104

FB,GREIGE,BEIGE,TRIM4#

main71460-22381-03iGX50,TX50..SCM,SDX198104-198208

FB,GRAY,GRAY,TRIM2#

main71460-22381-04iGX50,TX50..SCM,SDX198104-198208

FB,BLUE,BLUE,TRIM8#

main71460-22381-05iGX50,TX50..SCM,SDX198104-198208

FB,GREIGE,BEIGE,TRIM4#

main71460-22382-02iGX61,LX60,SX60..SCM,SDX198208-198407

FB,ROSE BEIGE,RED/MAROON,TRIM3#

main71460-22382-04iGX61,LX60,SX60..SCM,SDX198208-198407

FB,BLUE,BLUE,TRIM8#

main71460-22382-06iGX61,LX60,SX60..SCM,SDX198208-198407

FB,GREIGE,BROWN,TRIM4#

main71460-22390-03iGX51..STR198003-198110

FB,GRAY,GRAY,TRIM2#

main71460-22390-04iGX51..STR198003-198110

FB,BLUE,BLUE,TRIM8#

main71460-22390-05iGX51..STR198003-198110

FB,GREIGE,BEIGE,TRIM4#

main71460-22400-03iGX51,MX51..SLU198003-198208

FB,GRAY,GRAY,TRIM2#

main71460-22400-04iGX51,MX51..SLU198003-198208

FB,BLUE,BLUE,TRIM8#

main71460-22400-05iGX51,MX51..SLU198003-198208

FB,GREIGE,BEIGE,TRIM4#

main71460-22401-02iGX61,MX61..SLU..(EFI,TBO)198208-198407

FB,ROSE BEIGE,RED/MAROON,TRIM3#

main71460-22401-04iGX61,MX61..SLU..(EFI,TBO)198208-198407

FB,BLUE,BLUE,TRIM8#

main71460-22401-06iGX61,MX61..SLU..(EFI,TBO)198208-198407

FB,L-BROWN,BROWN,TRIM4#

main71460-22610-03iGX51,MX51..STR198110-198208

FB,GRAY,GRAY,TRIM2#

main71460-22610-04iGX51,MX51..STR198110-198208

FB,BLUE,BLUE,TRIM8#

main71460-22610-05iGX51,MX51..STR198110-198208

FB,GREIGE,BEIGE,TRIM4#

main71460-22611-02iMX61..STR198208-198407

FB,ROSE BEIGE,RED/MAROON,TRIM3#

main71460-22611-04iMX61..STR198208-198407

FB,BLUE,BLUE,TRIM8#

main71460-22611-06iMX61..STR198208-198407

FB,L-BROWN,BROWN,TRIM4#

main71460-22630-02iGX61..TWC198208-198308

FB,ROSE BEIGE,RED/MAROON,TRIM3#

main71460-22630-04iGX61..TWC198208-198308

FB,BLUE,BLUE,TRIM8#

main71460-22630-06iGX61..TWC198208-198308

FB,L-BROWN,BROWN,TRIM4#

main71460-22630-12iGX61..TWC198308-198407

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71460-22630-14iGX61..TWC198308-198407

FB,BLUE,BLUE,TRIM8#

main71460-22630-16iGX61..TWC198308-198407

FB,D-BROWN,BROWN,TRIM4#

main71460-22660-02iLX60,SX60..CTM198208-198407

FB,ROSE BEIGE,RED/MAROON,TRIM3#

main71460-22660-04iLX60,SX60..CTM198208-198407

FB,BLUE,BLUE,TRIM8#

main71460-22660-06iLX60,SX60..CTM198208-198407

FB,L-BROWN,BROWN,TRIM4#

main71460-95821-03iTX50..CTM198104-198208

FB,GRAY,GRAY,TRIM2#

main71460-95821-04iTX50..CTM198104-198208

FB,BLUE,BLUE,TRIM8#

main71460-95821-05iTX50..CTM198104-198208

FB,GREIGE,BEIGE,TRIM4#

71460TPAD SUB-ASSY, REAR SEAT CUSHION, NO.1

main71611-22080iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

71460UPAD SUB-ASSY, REAR SEAT CUSHION, NO.2

main71621-22060iGX61,LX60,MX61,SX60198208-198407

71480BBACK ASSY, REAR SEAT (FOR BENCH TYPE)

main71480-22470-03iTX50..CTM198003-198104

FB,GRAY,GRAY,TRIM2#

main71480-22470-04iTX50..CTM198003-198104

FB,BLUE,BLUE,TRIM8#

main71480-22470-05iTX50..CTM198003-198104

FB,GREIGE,BEIGE,TRIM4#

main71480-22471-03iTX50..CTM198104-198208

FB,GRAY,GRAY,TRIM2#

main71480-22471-04iTX50..CTM198104-198208

FB,BLUE,BLUE,TRIM8#

main71480-22471-05iTX50..CTM198104-198208

FB,GREIGE,BEIGE,TRIM4#

main71480-22472-02iLX60,SX60..CTM198208-198407

FB,ROSE BEIGE,RED/MAROON,TRIM3#

main71480-22472-04iLX60,SX60..CTM198208-198407

FB,BLUE,BLUE,TRIM8#

main71480-22472-06iLX60,SX60..CTM198208-198407

FB,L-BROWN,BROWN,TRIM4#

main71480-22480-03iGX50,TX50..SCM,SDX198003-198104

FB,GRAY,GRAY,TRIM2#

main71480-22480-04iGX50,TX50..SCM,SDX198003-198104

FB,BLUE,BLUE,TRIM8#

main71480-22480-05iGX50,TX50..SCM,SDX198003-198104

FB,GREIGE,BEIGE,TRIM4#

main71480-22481-03iGX50,TX50..SCM,SDX198104-198208

FB,GRAY,GRAY,TRIM2#

main71480-22481-04iGX50,TX50..SCM,SDX198104-198208

FB,BLUE,BLUE,TRIM8#

main71480-22481-05iGX50,TX50..SCM,SDX198104-198208

FB,GREIGE,BEIGE,TRIM4#

main71480-22482-02iGX61,LX60,SX60..SCM,SDX198208-198407

FB,ROSE BEIGE,RED/MAROON,TRIM3#

main71480-22482-04iGX61,LX60,SX60..SCM,SDX198208-198407

FB,BLUE,BLUE,TRIM8#

main71480-22482-06iGX61,LX60,SX60..SCM,SDX198208-198407

FB,L-BROWN,BROWN,TRIM4#

main71480-22490-03iGX51..STR198003-198110

FB,GRAY,GRAY,TRIM2#

main71480-22490-04iGX51..STR198003-198110

FB,BLUE,BLUE,TRIM8#

main71480-22490-05iGX51..STR198003-198110

FB,GREIGE,BEIGE,TRIM4#

main71480-22491-03iGX51,MX51..STR198110-198208

FB,GRAY,GRAY,TRIM2#

main71480-22491-04iGX51,MX51..STR198110-198208

FB,BLUE,BLUE,TRIM8#

main71480-22491-05iGX51,MX51..STR198110-198208

FB,GREIGE,BEIGE,TRIM4#

main71480-22492-02iMX61..STR198208-198407

FB,ROSE BEIGE,RED/MAROON,TRIM3#

main71480-22492-04iMX61..STR198208-198407

FB,BLUE,BLUE,TRIM8#

main71480-22492-06iMX61..STR198208-198407

FB,L-BROWN,BROWN,TRIM4#

main71480-22500-03iGX51,MX51..SLU198003-198208

FB,GRAY,GRAY,TRIM2#

main71480-22500-04iGX51,MX51..SLU198003-198208

FB,BLUE,BLUE,TRIM8#

main71480-22500-05iGX51,MX51..SLU198003-198208

FB,GREIGE,BEIGE,TRIM4#

main71480-22501-02iGX61,MX61..SLU..(EFI,TBO)198208-198407

FB,ROSE BEIGE,RED/MAROON,TRIM3#

main71480-22501-04iGX61,MX61..SLU..(EFI,TBO)198208-198407

FB,BLUE,BLUE,TRIM8#

main71480-22501-06iGX61,MX61..SLU..(EFI,TBO)198208-198407

FB,L-BROWN,BROWN,TRIM4#

main71480-22730-02iGX61..TWC198208-198308

FB,ROSE BEIGE,RED/MAROON,TRIM3#

main71480-22730-04iGX61..TWC198208-198308

FB,BLUE,BLUE,TRIM8#

main71480-22730-06iGX61..TWC198208-198308

FB,L-BROWN,BROWN,TRIM4#

main71480-22730-12iGX61..TWC198308-198407

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71480-22730-14iGX61..TWC198308-198407

FB,BLUE,BLUE,TRIM8#

main71480-22730-16iGX61..TWC198308-198407

FB,D-BROWN,BROWN,TRIM4#

71480CPAD SUB-ASSY, REAR SEATBACK, NO.1 (FOR BENCH TYPE)

main71507-22030iGX50,TX50198003-198104

main71507-22040iGX50198011-198102

EXTRA

main71507-22050iGX51,61,MX51,61..SLU198003-198407

main71507-22080iGX61,LX60,SX60..SCM,SDX198208-198407

71650SPRING ASSY, REAR SEAT CUSHION

main71650-22050iGX5#,MX51,TX50198003-198208

main71650-22051iGX61,LX60,MX61,SX60198208-198407

71670SPRING ASSY, REAR SEATBACK(FOR BENCH SEAT)

main71670-22090iGX50,TX50198003-198104

main71670-22100iGX5#,MX51,TX50..SCM,SDX,STR198104-198208

main71670-22101iGX61,LX60,SX60..SCM,SDX198208-198407

main71670-22110iGX51,61,MX51,61..SLU198003-198407

71671PAD, REAR SEATBACK SILENCER, A

main71671-22090iGX51198003-198104

71681PAD, REAR SEATBACK CORNER, A

main71681-22050×4iGX51,61,MX51,61..SLU198003-198407

71812BCLIP(FOR REAR SEAT CUSHION COVER)

main90468-18071iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

71893GARNISH, REAR SEATBACK SIDE, LOWER RH

main71893-22010×2iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

71953PAD, REAR SEAT HEADREST

main71953-22100iGX61,LX60,SX60..SCM,SDX198208-198407

71970HEADREST ASSY, REAR SEAT

main71940-22020-03×2iGX51,MX51..SLU198003-198208

GRAY,GRAY,TRIM2#

main71940-22020-04×2iGX51,MX51..SLU198003-198208

BLUE,BLUE,TRIM8#

main71940-22020-05×2iGX51,MX51..SLU198003-198208

GREIGE,BEIGE,TRIM4#

main71940-22021-02×2iGX61,MX61..SLU..(EFI,TBO)198208-198407

ROSE BEIGE,RED/MAROON,TRIM3#

main71940-22021-04×2iGX61,MX61..SLU..(EFI,TBO)198208-198407

BLUE,BLUE,TRIM8#

main71940-22021-06×2iGX61,MX61..SLU..(EFI,TBO)198208-198407

L-BROWN,BROWN,TRIM4#

main71940-22050-04×2iGX51..SLU198106-198107

SUPER WHITE,BLUE,BLUE,TRIM8#

main71940-22050-05×2iGX51,MX51..SLU198201-198207

EXCEED,GREIGE,BEIGE,TRIM4#

main71940-22051-02×2iGX61..TWC198305-198401

EXCEED,ROSE BEIGE,RED/MAROON,TRIM3#

main71940-22051-04×2iGX61..TWC198305-198401

EXCEED,BLUE,BLUE,TRIM8#

main71940-22051-06×2iGX61..TWC198305-198401

EXCEED,L-BROWN,BROWN,TRIM4#

main71940-22060-02×2iGX61..TWC198208-198308

ROSE BEIGE,RED/MAROON,TRIM3#

main71940-22060-04×2iGX61..TWC198208-198308

BLUE,BLUE,TRIM8#

main71940-22060-06×2iGX61..TWC198208-198308

L-BROWN,BROWN,TRIM4#

main71940-22060-12×2iGX61..TWC198308-198407

DEEP MAROON,RED/MAROON,TRIM3#

main71940-22060-14×2iGX61..TWC198308-198407

BLUE,BLUE,TRIM8#

main71940-22060-16×2iGX61..TWC198308-198407

BROWN,BROWN,TRIM4#

main71940-22090-06×2iGX61..TWC198402-198407

EXCEED,BROWN

main71940-22140-04×2iGX61..SLU..EFI198305-198401

EXCEED,BLUE,BLUE,TRIM8#

main71940-22140-05×2iGX61..SLU..EFI198305-198401

EXCEED,BEIGE,BEIGE,TRIM4#

72693HOOK, REAR SEAT CUSHION LOCK

main72693-22010×2iGX5#,MX51,TX50198003-198208

main72693-32010×2iGX61,LX60,MX61,SX60198208-198407

72830ARMREST ASSY, REAR SEAT, CENTER

main72830-22020-03iGX51..STR198003-198110

GRAY,GRAY,TRIM2#

main72830-22020-04iGX51..STR198003-198110

BLUE,BLUE,TRIM8#

main72830-22020-05iGX51..STR198003-198110

GREIGE,BEIGE,TRIM4#

main72830-22030-03iGX51,MX51..SLU198003-198208

GRAY,GRAY,TRIM2#

main72830-22030-04iGX50198108-198208

EXTRA,BLUE,BLUE,TRIM8#

main72830-22030-05iTX50..SCM198202-198203

EXTRA,GREIGE,BEIGE,TRIM4#

main72830-22031-02iGX61,MX61..SLU..(EFI,TBO)198208-198407

ROSE BEIGE,RED/MAROON,TRIM3#

main72830-22031-04iGX61,MX61..SLU..(EFI,TBO)198208-198407

BLUE,BLUE,TRIM8#

main72830-22031-06iGX61,MX61..SLU..(EFI,TBO)198208-198407

L-BROWN,BROWN,TRIM4#

main72830-22060-03iGX50,TX50..SCM,SDX198104-198208

GRAY,GRAY,TRIM2#

main72830-22060-04iGX50,TX50..SCM,SDX198104-198208

BLUE,BLUE,TRIM8#

main72830-22060-05iGX50,TX50..SCM,SDX198104-198208

GREIGE,BEIGE,TRIM4#

main72830-22061-02iGX61,LX60,SX60..SCM,SDX198208-198407

ROSE BEIGE,RED/MAROON,TRIM3#

main72830-22061-04iGX61,LX60,SX60..SCM,SDX198208-198407

BLUE,BLUE,TRIM8#

main72830-22061-06iGX61,LX60,SX60..SCM,SDX198208-198407

L-BROWN,BROWN,TRIM4#

main72830-22080-04iGX51..SLU198106-198107

SUPER WHITE,BLUE,BLUE,TRIM8#

main72830-22080-05iGX51,MX51..SLU198201-198207

EXCEED,GREIGE,BEIGE,TRIM4#

main72830-22081-04iGX61..TWC198305-198401

EXCEED,BLUE,BLUE,TRIM8#

main72830-22100-03iGX51,MX51..STR198110-198208

GRAY,GRAY,TRIM2#

main72830-22100-04iGX51,MX51..STR198110-198208

BLUE,BLUE,TRIM8#

main72830-22100-05iGX51,MX51..STR198110-198208

GREIGE,BEIGE,TRIM4#

main72830-22120-02iGX61..TWC198208-198308

ROSE BEIGE,MAROON,TRIM3#

main72830-22120-04iGX61..TWC198208-198308

BLUE,BLUE,TRIM8#

main72830-22120-06iGX61..TWC198208-198308

L-BROWN,BROWN,TRIM4#

main72830-22120-12iGX61..TWC198308-198407

DEEP MAROON,MAROON,TRIM3#

main72830-22120-14iGX61..TWC198308-198407

BLUE,BLUE,TRIM8#

main72830-22120-16iGX61..TWC198308-198407

BROWN,BROWN,TRIM4#

main72830-22130-04iGX61,LX60,SX60..SCM,SDX198302-198407

EXTRA,BLUE,BLUE,TRIM8#

main72830-22130-06iGX61..SDX198302-198407

EXTRA,BROWN,BROWN,TRIM4#

main72830-22140-06iGX61..TWC198402-198407

EXCEED,BROWN,BROWN,TRIM4#

main72830-22190-04iGX61..SLU..EFI198305-198401

EXCEED,BLUE,BLUE,TRIM8#

main72830-22190-05iGX61..SLU..EFI198305-198401

EXCEED,BEIGE,BEIGE,TRIM4#

72830BBUSH(FOR REAR SEAT CENTER ARMREST)

main90386-06002×2iGX61,LX60,MX61,SX60..SCM,SDX,SLU198208-198407

9046812070

main90468-12070

9165640630

main91656-40630

9166560825

main91665-60825

9338116010

main93381-16010

22 parts on this diagram · 2 diagrams in section
