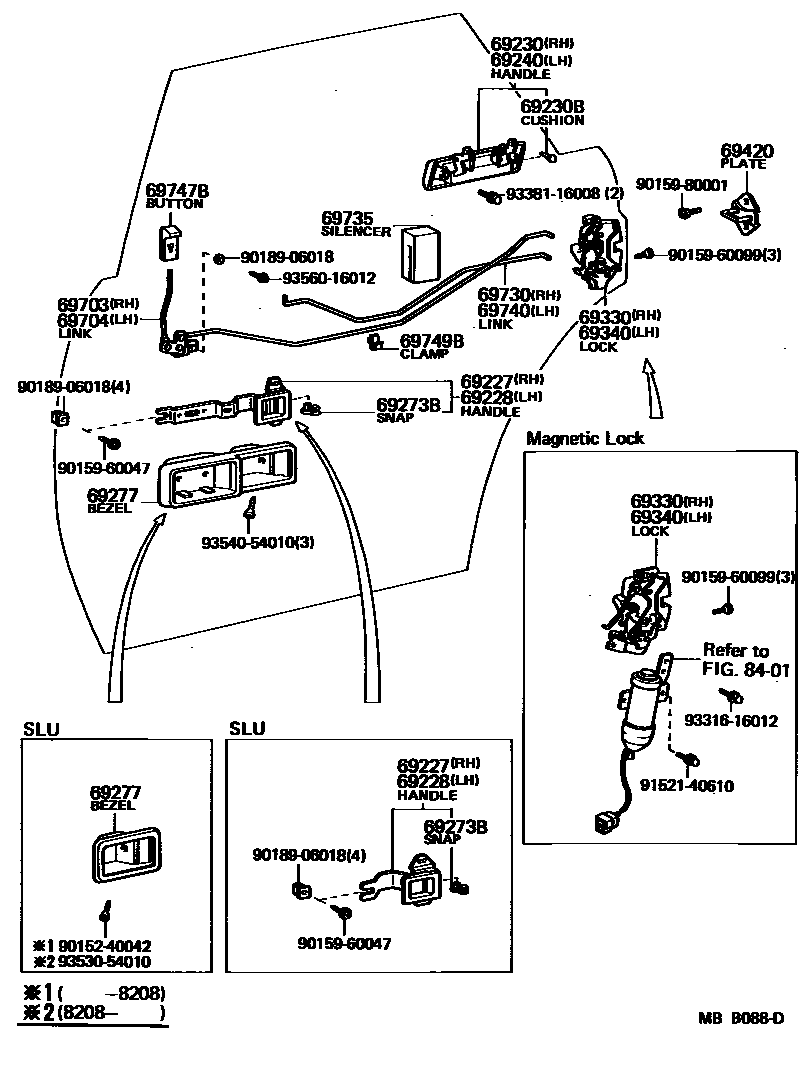

REAR DOOR LOCK & HANDLE

69227HANDLE, REAR DOOR INSIDE, RH

main69206-30010iGX51,61,LX60,MX51,61..SCM,SLU198003-198407

main69207-22030iGX5#,61,MX51,61,SX60,TX50..CTM,SCM,SDX,STR198003-198407

69228HANDLE, REAR DOOR INSIDE, LH

main69205-30010iGX61..SDX198208-198407

W/*PW

main69208-22030iGX5#,61,MX51,61,SX60,TX50..CTM,SCM,SDX,STR198003-198407

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69230-22040iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)

main90541-03021×4iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69240-22040iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

69273BSNAP, DOOR INSIDE HANDLE ROD(FOR REAR DOOR)

main69279-12020iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

LH

main69288-12010iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

RH

69277BEZEL, REAR DOOR INSIDE HANDLE

main69277-16040-06×2iGX61,LX60,MX61..SCM,SDX,SLU198208-198407

W/*PW,D-BROWN,BROWN,TRIM4#

main69277-16040-14×2iGX61,LX60,MX61..SCM,SDX,SLU198208-198407

W/*PW,BLUE,BLUE,TRIM8#

main69277-16040-22×2iGX61,LX60,MX61..SCM,SDX,SLU198208-198407

W/*PW,DEEP MAROON,RED/MAROON,TRIM3#

main69277-22040-01iGX5#,MX51,TX50..CTM,SCM,SDX,STR198003-198208

RH,BLACK,BLACK,TRIM2#

main69277-22040-02iLX60..CTM198308-198407

RH,DEEP MAROON,RED/MAROON,TRIM3#

main69277-22040-04iGX5#,MX51,TX50..CTM,SCM,SDX,STR198003-198208

RH,BLUE,BLUE,TRIM8#

main69277-22040-06iGX5#,61,MX51,61,SX60,TX50..CTM,SCM,SDX,STR198003-198407

RH,D-BROWN,BROWN,TRIM4#

main69277-22040-14iGX61,MX61,SX60..CTM,SCM,SDX,STR198208-198407

RH,BLUE,BLUE,TRIM8#

main69277-30030×2iGX51,MX51..SLU198003-198208

main69278-22010-01iGX5#,MX51,TX50..CTM,SCM,SDX,STR198003-198208

LH,BLACK,BLACK,TRIM2#

main69278-22010-02iGX61,MX61,SX60..CTM,SCM,SDX,STR198208-198407

LH,DEEP MAROON,RED/MAROON,TRIM3#

main69278-22010-04iGX5#,MX51,TX50..CTM,SCM,SDX,STR198003-198208

LH,BLUE,BLUE,TRIM8#

main69278-22010-06iGX5#,61,MX51,61,SX60,TX50..CTM,SCM,SDX,STR198003-198407

LH,D-BROWN,BROWN,TRIM4#

main69278-22010-14iLX60..CTM198308-198407

LH,BLUE,BLUE,TRIM8#

69330LOCK ASSY, REAR DOOR, RH

main69330-22050iGX61,LX60,MX61..SCM,SDX,SLU198208-198407

W/MAGNETIC LOCK

main69330-22060iLX60..CTM198308-198407

69340LOCK ASSY, REAR DOOR, LH

main69340-22060iGX51,MX51..SLU198003-198208

W/MAGNETIC LOCK

main69340-22070iGX5#,TX50198003-198104

69420PLATE ASSY, REAR DOOR LOCK STRIKER

main69410-22030×2iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

69703LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH

main69770-22020iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

69704LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH

main69780-22020iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

69730LINK ASSY, REAR DOOR OPEN CONTROL, RH

main69713-22020iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

69735SILENCER, REAR DOOR LOCK LINK

main69759-30021×2iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

69740LINK ASSY, REAR DOOR OPEN CONTROL, LH

main69714-22020iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

69747BBUTTON, DOOR LOCKING(FOR REAR DOOR)

main69741-30020-01×2iGX5#,MX51,TX50198003-198208

BLACK,BLACK,TRIM2#

main69741-30020-04×2iGX5#,MX51,TX50198003-198208

BLUE,BLUE,TRIM8#

main69741-30020-06×2iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

D-BROWN,BROWN,TRIM4#

main69741-30020-12×2iGX61,LX60,MX61,SX60198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main69741-30020-14×2iGX61,LX60,MX61,SX60198208-198407

BLUE,BLUE,TRIM8#

69749BCLAMP, REAR DOOR LOCK LINK

main69749-12030×2iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9015240042

main90152-40042

9015960047

main90159-60047

9015960099

main90159-60099

9015980001

main90159-80001

9018906018

main90189-06018

9152140610

main91521-40610

9331616012

main93316-16012

9338116008

main93381-16008

9353054010

main93530-54010

9354054010

main93540-54010

9356016012

main93560-16012

29 parts on this diagram · 1 diagram in section
