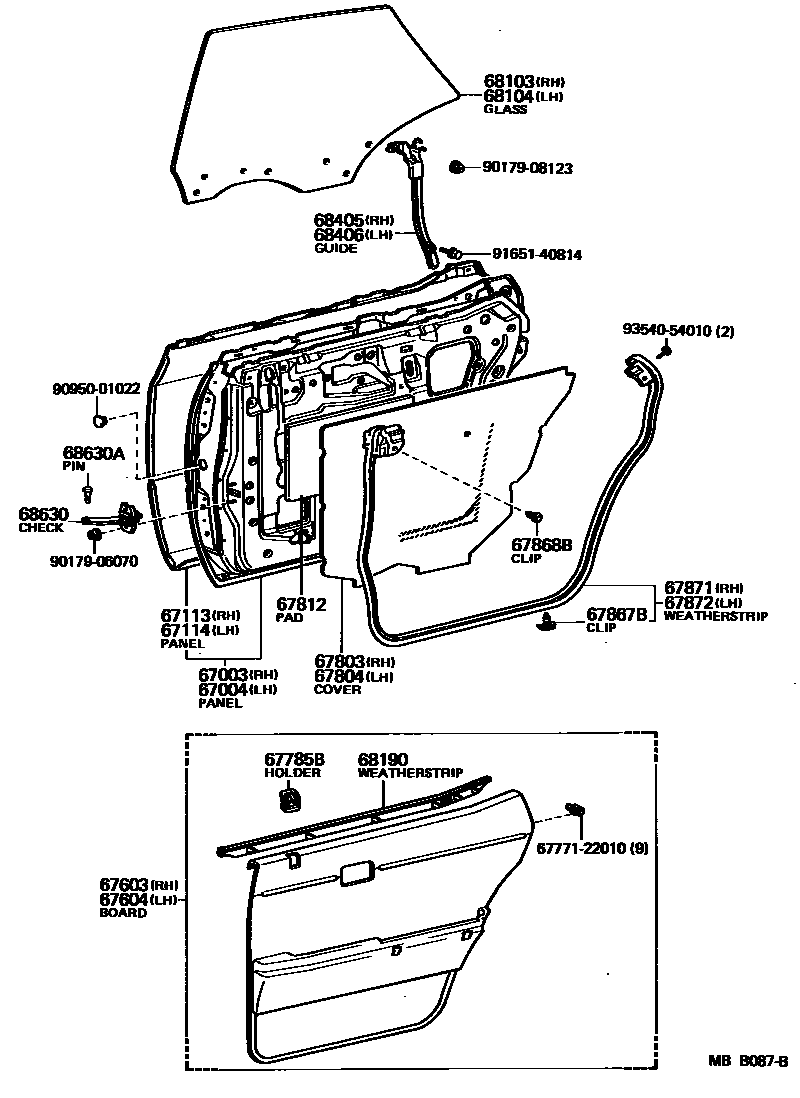

REAR DOOR PANEL & GLASS

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-22120iGX5#,TX50198003-198008

main67003-22121iGX5#,61,LX60,MX51,61,SX60,TX50198008-198407

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-22130iGX5#,TX50198003-198008

main67004-22131iGX5#,61,LX60,MX51,61,SX60,TX50198008-198407

67113PANEL, REAR DOOR, OUTER RH

main67113-22070iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

67114PANEL, REAR DOOR, OUTER LH

main67114-22070iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-22410-01iTX50..CTM198003-198104

BLACK & GRAY,BLACK,TRIM2#

main67630-22410-04iTX50..CTM198003-198104

BLUE,BLUE,TRIM8#

main67630-22410-06iTX50..CTM198003-198104

D-BROWN & GREIGE,BROWN,TRIM4#

main67630-22420-01iGX50,TX50..SCM,SDX198003-198104

BLACK & GRAY,BLACK,TRIM2#

main67630-22420-04iTX50..CTM198104-198208

BLUE,BLUE,TRIM8#

main67630-22420-06iGX50,TX50..SCM,SDX198003-198104

D-BROWN & GREIGE,BROWN,TRIM4#

main67630-22421-02iLX60,MX61,SX60..CTM,STR198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main67630-22421-04iLX60,MX61,SX60..CTM,STR198208-198407

BLUE,BLUE,TRIM8#

main67630-22421-06iLX60,MX61,SX60..CTM,STR198208-198407

D-BROWN,BROWN,TRIM4#

main67630-22440-01iGX51,MX51..SLU198003-198208

BLACK & GRAY,BLACK,TRIM2#

main67630-22440-04iGX51,MX51..SLU198003-198208

BLUE,BLUE,TRIM8#

main67630-22440-06iGX51,MX51..SLU198003-198208

D-BROWN & GREIGE,BROWN,TRIM4#

main67630-22441-02iGX61,MX61..SLU..(EFI,TBO)198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main67630-22441-04iGX61,MX61..SLU..(EFI,TBO)198208-198308

BLUE,BLUE,TRIM8#

main67630-22441-06iGX61,MX61..SLU..(EFI,TBO)198208-198308

D-BROWN,BROWN,TRIM4#

main67630-22441-14iGX61,MX61..SLU..(EFI,TBO)198308-198407

BLUE,BLUE,TRIM8#

main67630-22441-16iGX61,MX61..SLU..(EFI,TBO)198308-198407

D-BROWN,BROWN,TRIM4#

main67630-22450-01iGX51..STR198003-198110

BLACK & GRAY,BLACK,TRIM2#

main67630-22450-04iGX51..STR198003-198110

BLUE,BLUE,TRIM8#

main67630-22450-06iGX51..STR198003-198110

D-BROWN & GREIGE,BROWN,TRIM4#

main67630-22451-01iGX51,MX51..STR198110-198208

BLACK & GRAY,BLACK,TRIM2#

main67630-22451-04iGX51,MX51..STR198110-198208

BLUE,BLUE,TRIM8#

main67630-22451-06iGX51,MX51..STR198110-198208

D-BROWN & GREIGE,BROWN,TRIM4#

main67630-22460-01iGX51..STR198003-198110

W/*PW,BLACK & GRAY,BLACK,TRIM2#

main67630-22460-04iGX51..STR198003-198110

W/*PW,BLUE,BLUE,TRIM8#

main67630-22460-06iGX51..STR198003-198110

W/*PW,D-BROWN & GREIGE,BROWN,TRIM4#

main67630-22461-01iGX51,MX51..STR198110-198208

W/*PW,BLACK & GRAY,BLACK,TRIM2#

main67630-22461-04iGX51,MX51..STR198110-198208

W/*PW,BLUE,BLUE,TRIM8#

main67630-22461-06iGX51,MX51..STR198110-198208

W/*PW,D-BROWN & GREIGE,BROWN,TRIM4#

main67630-22620-02iGX61..TWC198208-198308

DEEP MAROON,RED/MAROON,TRIM3#

main67630-22620-04iGX61..TWC198208-198308

BLUE,BLUE,TRIM8#

main67630-22620-06iGX61..TWC198208-198308

D-BROWN,BROWN,TRIM4#

main67630-22620-12iGX61..TWC198308-198402

DEEP MAROON,RED/MAROON,TRIM3#

main67630-22620-14iGX61..TWC198308-198402

BLUE,BLUE,TRIM8#

main67630-22620-16iGX61..TWC198308-198402

D-BROWN,BROWN,TRIM4#

main67630-22621-02iGX61..TWC198402-198407

DEEP MAROON,DEEP MAROON,TRIM3#

main67630-22621-04iGX61..TWC198402-198407

BLUE,BLUE,TRIM8#

main67630-22621-06iGX61..TWC198402-198407

D-BROWN,DARK BROWN,TRIM4#

main67630-22670-04iTX50..SCM198202-198203

EXTRA,BLUE,BLUE,TRIM8#

main67630-22670-06iTX50..SCM198202-198203

EXTRA,BROWN,BROWN,TRIM4#

main67630-22680-01iGX50,TX50..SCM,SDX198104-198208

BLACK & GRAY,BLACK,TRIM2#

main67630-22680-04iGX50,TX50..SCM,SDX198104-198208

BLUE,BLUE,TRIM8#

main67630-22680-06iGX50,TX50..SCM,SDX198104-198208

D-BROWN & GREIGE,BROWN,TRIM4#

main67630-22681-02iGX61,SX60..SCM,SDX198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main67630-22681-04iGX61,SX60..SCM,SDX198208-198407

BLUE,BLUE,TRIM8#

main67630-22681-06iGX61,SX60..SCM,SDX198208-198407

D-BROWN,BROWN,TRIM4#

main67630-22700iGX51..SLU198106-198107

SUPER WHITE

main67630-22700-06iGX51,MX51..SLU198201-198207

EXCEED,BROWN,BROWN,TRIM4#

main67630-22730-02iGX61,LX60..SCM,SDX198208-198407

W/*PW,DEEP MAROON,RED/MAROON,TRIM3#

main67630-22730-04iGX61,LX60..SCM,SDX198208-198407

W/*PW,BLUE,BLUE,TRIM8#

main67630-22730-06iGX61,LX60..SCM,SDX198208-198407

W/*PW,D-BROWN,BROWN,TRIM4#

main67630-22760-04iGX61..SDX198302-198407

EXTRA,BLUE,BLUE,TRIM8#

main67630-22760-06iGX61..SDX198302-198407

EXTRA,BROWN,BROWN,TRIM4#

main67630-22780-04iGX61..SLU..EFI198305-198401

EXCEED,BLUE,BLUE,TRIM8#

main67630-22780-06iGX61..SLU..EFI198305-198401

EXCEED,D-BROWN,BROWN,TRIM4#

main67630-22790iGX61..TWC198305-198401

EXCEED

main67630-2A120iGX61..TWC198402-198407

EXCEED

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-22410-01iTX50..CTM198003-198104

BLACK & GRAY,BLACK,TRIM2#

main67640-22410-04iTX50..CTM198003-198104

BLUE,BLUE,TRIM8#

main67640-22410-06iTX50..CTM198003-198104

D-BROWN & GREIGE,BROWN,TRIM4#

main67640-22420-01iTX50..CTM198104-198208

BLACK & GRAY,BLACK,TRIM2#

main67640-22420-04iGX50,TX50..SCM,SDX198003-198104

BLUE,BLUE,TRIM8#

main67640-22420-06iGX50,TX50..SCM,SDX198003-198104

D-BROWN & GREIGE,BROWN,TRIM4#

main67640-22421-02iLX60,MX61,SX60..CTM,STR198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main67640-22421-04iLX60,MX61,SX60..CTM,STR198208-198407

BLUE,BLUE,TRIM8#

main67640-22421-06iLX60,MX61,SX60..CTM,STR198208-198407

D-BROWN & GREIGE,BROWN,TRIM4#

main67640-22440-01iGX51,MX51..SLU198003-198208

BLACK & GRAY,BLACK,TRIM2#

main67640-22440-04iGX51,MX51..SLU198003-198208

BLUE,BLUE,TRIM8#

main67640-22440-06iGX51,MX51..SLU198003-198208

D-BROWN & GREIGE,BROWN,TRIM4#

main67640-22441-02iGX61,MX61..SLU..(EFI,TBO)198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main67640-22441-04iGX61,MX61..SLU..(EFI,TBO)198208-198308

BLUE,BLUE,TRIM8#

main67640-22441-06iGX61,MX61..SLU..(EFI,TBO)198208-198308

D-BROWN,BROWN,TRIM4#

main67640-22441-14iGX61,MX61..SLU..(EFI,TBO)198308-198407

BLUE,BLUE,TRIM8#

main67640-22441-16iGX61,MX61..SLU..(EFI,TBO)198308-198407

D-BROWN,BROWN,TRIM4#

main67640-22450-01iGX51..STR198003-198110

BLACK & GRAY,BLACK,TRIM2#

main67640-22450-04iGX51..STR198003-198110

BLUE,BLUE,TRIM8#

main67640-22450-06iGX51..STR198003-198110

D-BROWN & GREIGE,BROWN,TRIM4#

main67640-22451-01iGX51,MX51..STR198110-198208

BLACK & GRAY,BLACK,TRIM2#

main67640-22451-04iGX51,MX51..STR198110-198208

BLUE,BLUE,TRIM8#

main67640-22451-06iGX51,MX51..STR198110-198208

D-BROWN & GREIGE,BROWN,TRIM4#

main67640-22460-01iGX51..STR198003-198110

W/*PW,BLACK & GRAY,BLACK,TRIM2#

main67640-22460-04iGX51..STR198003-198110

W/*PW,BLUE,BLUE,TRIM8#

main67640-22460-06iGX51..STR198003-198110

W/*PW,D-BROWN & GREIGE,BROWN,TRIM4#

main67640-22461-01iGX51,MX51..STR198110-198208

W/*PW,BLACK & GRAY,BLACK,TRIM2#

main67640-22461-04iGX51,MX51..STR198110-198208

W/*PW,BLUE,BLUE,TRIM8#

main67640-22461-06iGX51,MX51..STR198110-198208

W/*PW,D-BROWN & GREIGE,BROWN,TRIM4#

main67640-22620-02iGX61..TWC198208-198308

DEEP MAROON,RED/MAROON,TRIM3#

main67640-22620-04iGX61..TWC198208-198308

BLUE,BLUE,TRIM8#

main67640-22620-06iGX61..TWC198208-198308

D-BROWN,BROWN,TRIM4#

main67640-22620-12iGX61..TWC198308-198402

DEEP MAROON,RED/MAROON,TRIM3#

main67640-22620-14iGX61..TWC198308-198402

BLUE,BLUE,TRIM8#

main67640-22620-16iGX61..TWC198308-198402

D-BROWN,BROWN,TRIM4#

main67640-22621-02iGX61..TWC198402-198407

DEEP MAROON,DEEP MAROON,TRIM3#

main67640-22621-04iGX61..TWC198402-198407

BLUE,BLUE,TRIM8#

main67640-22621-06iGX61..TWC198402-198407

D-BROWN,DARK BROWN,TRIM4#

main67640-22670-04iGX50198108-198208

EXTRA,BLUE,BLUE,TRIM8#

main67640-22670-06iGX50198011-198208

EXTRA,BROWN,BROWN,TRIM4#

main67640-22680-01iGX50,TX50..SCM,SDX198104-198208

BLACK & GRAY,BLACK,TRIM2#

main67640-22680-04iGX50,TX50..SCM,SDX198104-198208

BLUE,BLUE,TRIM8#

main67640-22680-06iGX50,TX50..SCM,SDX198104-198208

D-BROWN & GREIGE,BROWN,TRIM4#

main67640-22681-02iGX61,SX60..SCM,SDX198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main67640-22681-04iGX61,SX60..SCM,SDX198208-198407

BLUE,BLUE,TRIM8#

main67640-22681-06iGX61,SX60..SCM,SDX198208-198407

D-BROWN,BROWN,TRIM4#

main67640-22700iGX51..SLU198106-198107

SUPER WHITE

main67640-22700-06iGX51,MX51..SLU198201-198207

EXCEED,BROWN,BROWN,TRIM4#

main67640-22730-02iGX61,LX60..SCM,SDX198208-198407

W/*PW,DEEP MAROON,RED/MAROON,TRIM3#

main67640-22730-04iGX61,LX60..SCM,SDX198208-198407

W/*PW,BLUE,BLUE,TRIM8#

main67640-22730-06iGX61,LX60..SCM,SDX198208-198407

W/*PW,D-BROWN,BROWN,TRIM4#

main67640-22760-04iGX61..SDX198302-198407

EXTRA,BLUE,BLUE,TRIM8#

main67640-22760-06iGX61..SDX198402-198407

EXTRA,W/*DM,D-BROWN,BROWN,TRIM4#

main67640-22780-04iGX61..SLU..EFI198305-198401

EXCEED,BLUE,BLUE,TRIM8#

main67640-22780-06iGX61..SLU..EFI198305-198401

EXCEED,D-BROWN,BROWN,TRIM4#

main67640-22790iGX61..TWC198305-198401

EXCEED

main67640-2A120iGX61..TWC198402-198407

EXCEED

67785BHOLDER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR)

main67785-22020-01×2iGX5#,MX51,TX50198003-198208

BLACK,BLACK,TRIM2#

main67785-22020-02×2iGX61,LX60,MX61,SX60198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main67785-22020-04×2iGX5#,MX51,TX50198003-198208

BLUE,BLUE,TRIM8#

main67785-22020-06×2iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

D-BROWN,BROWN,TRIM4#

main67785-22020-14×2iGX61,LX60,MX61,SX60198208-198407

BLUE,BLUE,TRIM8#

67803COVER SUB-ASSY, REAR DOOR SERVICE HOLE, RH

main67841-22090iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

67804COVER SUB-ASSY, REAR DOOR SERVICE HOLE, LH

main67841-22090iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

67812PAD, REAR DOOR SILENCER

main67812-22040×2iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)

main67868-30040iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

67868BCLIP, DOOR GLASS WEATHERSTRIP(FOR REAR DOOR)

main67869-30020×4iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

67871WEATHERSTRIP, REAR DOOR, RH

main67871-22080iGX5#,TX50198003-198009

main67871-22081iGX5#,61,LX60,MX51,61,SX60,TX50198009-198407

67872WEATHERSTRIP, REAR DOOR, LH

main67872-22080iGX5#,TX50198003-198009

main67872-22081iGX5#,61,LX60,MX51,61,SX60,TX50198009-198407

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-22070iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

*TT,T=5.0

main68113-22110iGX51,MX51..SLU198201-198207

EXCEED

68104GLASS SUB-ASSY, REAR DOOR, LH

main68114-22070iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

*TT,T=5.0

main68114-22110iGX61,MX51,61..SLU198110-198407

*TEM,T=5.0,BRONZE

68190WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER

main68190-22050iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

RH

main68240-22040iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

LH

68405GUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT RH

main67405-22040iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

68406GUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT LH

main67406-22040iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

68630CHECK ASSY, REAR DOOR

main68630-22020×2iGX5#,TX50198003-198012

main68630-22021×2iGX5#,61,LX60,MX51,61,SX60,TX50198012-198407

68630APIN(FOR REAR DOOR CHECK)

main68617-12010×2iGX61,LX60,MX61,SX60198406-198407

main68617-22010×2iGX5#,61,LX60,MX51,61,SX60,TX50198003-198406

6777122010WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-22010

9017906070

main90179-06070

9017908123

main90179-08123

9095001022

main90950-01022

9165140814

main91651-40814

9354054010

main93540-54010

27 parts on this diagram · 1 diagram in section
