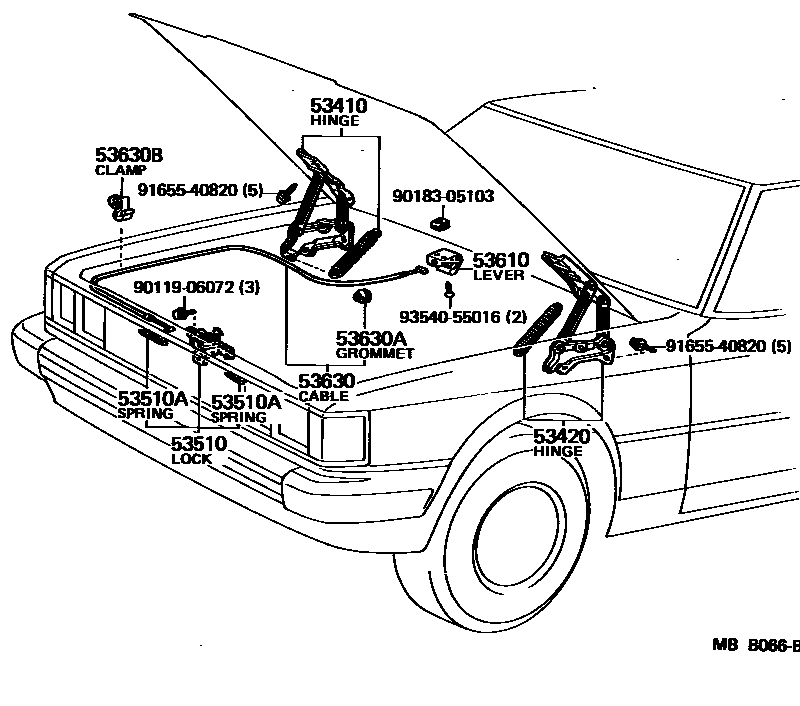

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-22040iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

53420HINGE ASSY, HOOD, LH

main53420-22040iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

53510LOCK ASSY, HOOD

main53510-22110iGX5#,61,LX60,MX51,61,SX60,TX50198010-198407

main53510-30100iGX5#,TX50198003-198010

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09008iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

main90506-18024iGX5#,TX50198003-198010

CW=18,WD=1.8

main90506-20008iGX5#,61,LX60,MX51,61,SX60,TX50198010-198407

53610LEVER ASSY, HOOD LOCK RELEASE

main53601-30030-01iGX5#,MX51,TX50198003-198208

BLACK,BLACK,TRIM2#

main53601-30030-04iGX5#,MX51,TX50198003-198208

BLUE,BLUE,TRIM8#

main53601-30030-05iGX5#,MX51,TX50198003-198208

GREIGE,BEIGE,TRIM4#

main53601-30030-06iGX61,LX60,MX61,SX60198208-198407

D-BROWN,BROWN,TRIM4#

main53601-30030-14iGX61,LX60,MX61,SX60198208-198407

BLUE,BLUE,TRIM8#

main53601-30030-22iGX61,LX60,MX61,SX60198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-22070iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

53630AGROMMET(FOR HOOD LOCK CONTROL CABLE)

main90480-15194iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main69749-12010iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

9011906072

main90119-06072

9018305103

main90183-05103

9165540820

main91655-40820

9354055016

main93540-55016

12 parts on this diagram · 1 diagram in section
