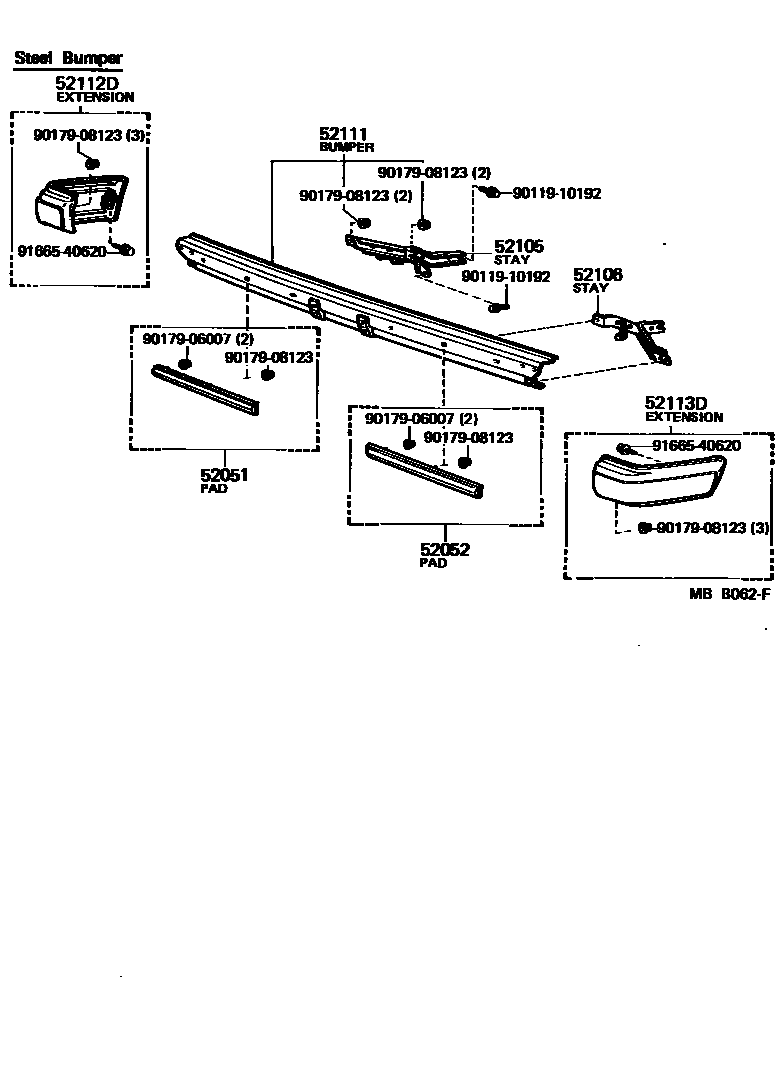

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1

52051PAD SUB-ASSY, FRONT BUMPER, RH

main52051-29065iTX50..CTM198003-198208

52052PAD SUB-ASSY, FRONT BUMPER, LH

main52051-29065iTX50..CTM198003-198208

52105STAY SUB-ASSY, FRONT BUMPER, RH

main52011-22050iTX50..CTM198003-198208

52106STAY SUB-ASSY, FRONT BUMPER, LH

main52012-22040iTX50..CTM198003-198208

52111BUMPER ASSY, FRONT

main52111-29415iTX50..CTM198003-198208

52112DEXTENSION, FRONT BUMPER, RH

main52102-29055iTX50..CTM198003-198208

52113DEXTENSION, FRONT BUMPER, LH

main52103-29155iTX50..CTM198003-198208

9011910192

main90119-10192

9017906007

main90179-06007

9017908123

main90179-08123

9166540620

main91665-40620

11 parts on this diagram · 3 diagrams in section
