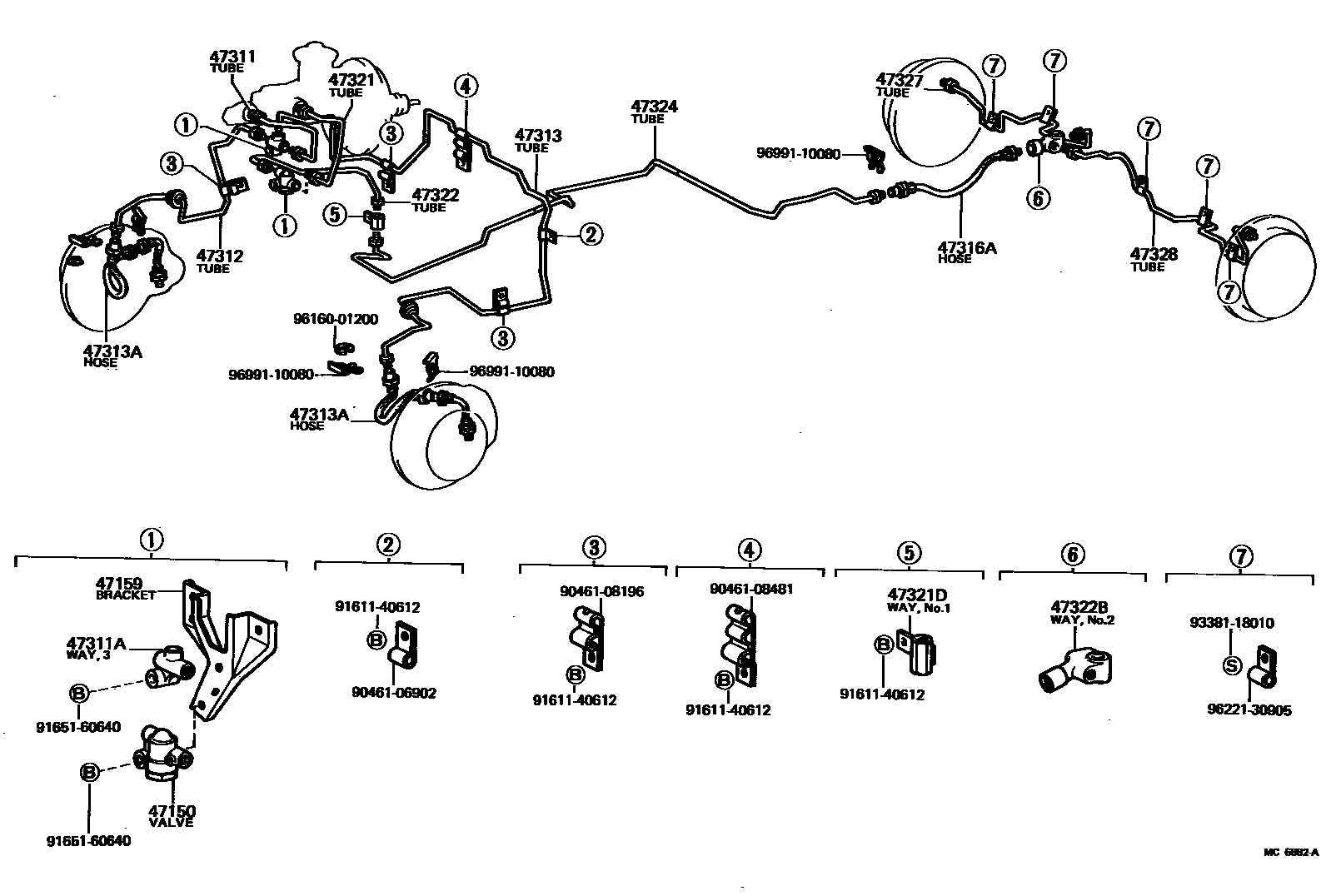

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

47150VALVE ASSY, PROPORTIONING

main47150-10010iMX51,61198110-198407

main47150-12031iGX50,61,LX60,SX60,TX50..CTM,SCM,SDX198003-198407

sub47150-22050

main47150-12041iGX51198003-198407

47159BRACKET, PROPORTIONING VALVE

main47159-22100iGX50,LX60,SX60,TX50198003-198407

main47159-22110iGX51,61198003-198407

main47159-22120iMX51,61198110-198407

47311TUBE, FRONT BRAKE, NO.1

main47311-22190iGX50,61,LX60,SX60,TX50..CTM,SCM,SDX198003-198407

sub47311-22220

main47311-22200iGX51198003-198407

main47311-22210iMX51,61198110-198407

47311AWAY(FOR FRONT BRAKE TUBE)

main90413-10002iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

47312TUBE, FRONT BRAKE, NO.2

main47312-22060iGX5#,61,LX60,SX60,TX50198003-198407

main47312-22090iMX51,61198110-198407

47313TUBE, FRONT BRAKE, NO.3

main47313-22190iGX5#,61,LX60,SX60,TX50198003-198407

main47313-22220iMX51,61198110-198407

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02407iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main96940-32805iGX50,TX50198003-198008

main96940-32855iGX50,LX60,SX60,TX50198008-198407

47321TUBE, REAR BRAKE, NO.1

main47321-22040iGX50,61,LX60,SX60,TX50..CTM,SCM,SDX198003-198407

sub47321-22070

main47321-22050iGX51198003-198407

main47321-22060iMX51,61198110-198407

47321DWAY, NO.1(FOR REAR BRAKE TUBE)

main90412-10017iGX5#,61,LX60,MX51,61,SX60198003-198407

main90412-10036iTX50198003-198208

47322TUBE, REAR BRAKE, NO.2

main47322-22080iGX5#,61,LX60,SX60198003-198407

main47322-22090iTX50198003-198208

main47322-22110iGX51,61..SLU198003-198407

W/ESC

main47322-22120iMX51,61198110-198407

47322BWAY, NO.2(FOR REAR BRAKE TUBE)

main90413-10076iGX51,61,MX51,61198003-198407

main90413-10098iGX50,LX60,SX60,TX50198008-198407

main90413-10120iGX50,TX50198003-198008

47324TUBE, REAR BRAKE, NO.4

main47324-22100iTX50198003-198208

main47324-22110iGX50,LX60,SX60198003-198407

main47324-22120iGX51,MX51198003-198208

main47324-22160iGX61,MX61198208-198407

47327TUBE, REAR BRAKE, NO.7

main47327-14020iGX61..SDX198208-198407

main47327-22020iGX61,MX61..SLU,STR198003-198407

main47327-22050iGX50,TX50198003-198008

main47327-22070iGX50,LX60,SX60,TX50198008-198407

sub47327-22060

47328TUBE, REAR BRAKE, NO.8

main47328-14020iGX61..SDX198208-198407

main47328-22020iGX51,MX51198003-198407

main47328-22050iGX50,TX50198003-198008

main47328-22070iGX50,LX60,SX60,TX50198008-198407

sub47328-22060

9046106902

main90461-06902

9046108196

main90461-08196

9046108481

main90461-08481

9161140612

main91611-40612

9165160640

main91651-60640

9338118010

main93381-18010

9616001200

main96160-01200

9622130905

main96221-30905

9699110080

main96991-10080

24 parts on this diagram · 6 diagrams in section
