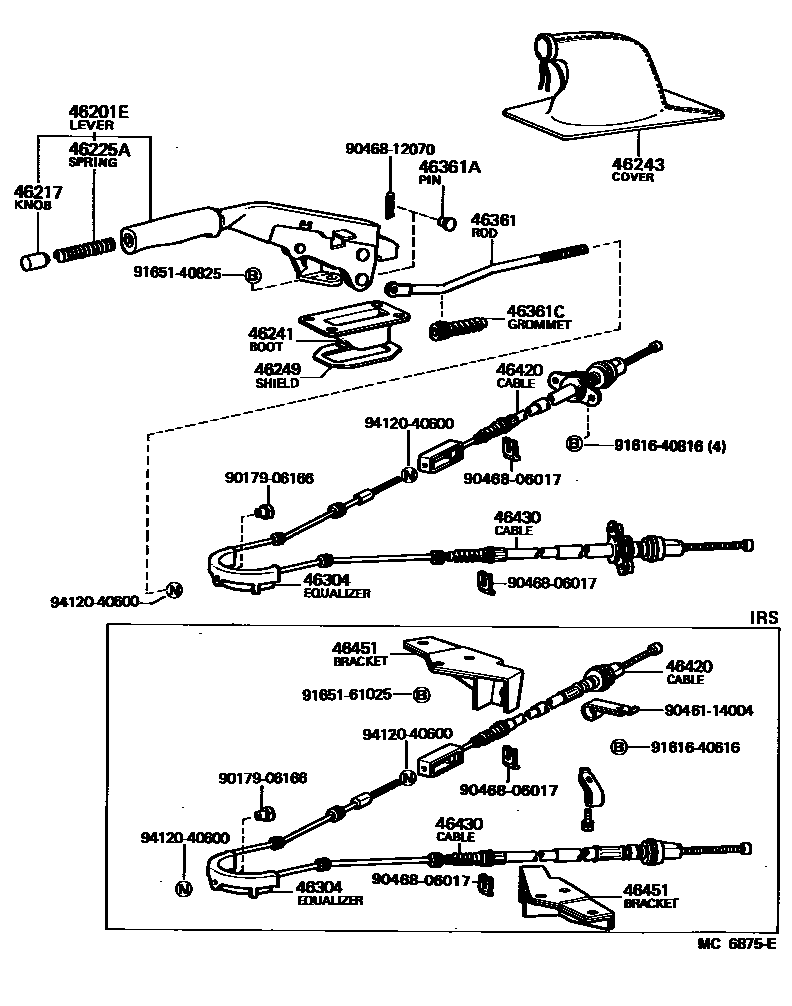

PARKING BRAKE & CABLE

0001 1 0003 1 0004 1 0005 1

46201PEDAL SUB-ASSY, PARKING BRAKE

main46201-22130iGX61,LX60,MX61,SX60..4FC198208-198407

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-22090iGX51198003-198104

WOODY

main46201-22091iGX51,MX51198104-198208

WOODY

main46201-22100-01iGX50,TX50198003-198104

BLACK,BLACK,TRIM2#

main46201-22100-04iGX50,TX50198003-198104

BLUE,BLUE,TRIM8#

main46201-22100-06iGX50,TX50198003-198104

DARK BROWN,BROWN,TRIM4#

main46201-22101-01iTX50..CTM198104-198208

BLACK,BLACK,TRIM2#

main46201-22101-02iLX60..5F198308-198407

DEEP MAROON,RED/MAROON,TRIM3#

main46201-22101-04iTX50..CTM198104-198201

BLUE,BLUE,TRIM8#

main46201-22101-06iLX60..5F198308-198407

DARK BROWN,BROWN,TRIM4#

main46201-22101-14iLX60..5F198308-198407

BLUE,BLUE,TRIM8#

main46201-22120-01iGX50,TX50..SCM,SDX198104-198208

BLACK,BLACK,TRIM2#

main46201-22120-02iGX61,SX60..5F..(SCM,SDX,SLU)198208-198407

DARK MAROON,RED/MAROON,TRIM3#

main46201-22120-04iGX50,TX50..SCM,SDX198104-198201

BLUE,BLUE,TRIM8#

main46201-22120-06iGX50,TX50..SCM,SDX198104-198208

DARK BROWN,BROWN,TRIM4#

main46201-22120-14iGX61,SX60..5F..(SCM,SDX,SLU)198208-198407

BLUE,BLUE,TRIM8#

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-10020-01iGX50,TX50198003-198208

BLACK,BLACK,TRIM2#

main46217-10020-02iGX61,LX60,SX60..5F198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main46217-10020-04iGX50,TX50198003-198201

BLUE,BLUE,TRIM8#

main46217-10020-06iGX61,LX60,SX60..5F198208-198407

DARK BROWN,BROWN,TRIM4#

main46217-10020-14iGX50,TX50198201-198208

BLUE,BLUE,TRIM8#

main46217-10020-16iGX51,MX51198003-198208

BROWN,BROWN,TRIM4#

main46217-10020-26iGX50,TX50198003-198208

DARK BROWN,BROWN,TRIM4#

main46217-22020iGX61,MX61,SX60..4FC198208-198209

main46217-22021iGX61,LX60,MX61,SX60..4FC198209-198407

46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)

main90501-10745iGX61,LX60,SX60..5F198208-198407

46241BOOT, PARKING BRAKE LEVER

main46241-14021iGX5#,MX51,TX50198003-198208

46243COVER, PARKING BRAKE LEVER

main46243-20021-02iSX60..5F198208-198407

DEEP MAROON,*30,RED/MAROON,TRIM3#

main46243-20021-06iSX60..5F198208-198407

DARK BROWN,*30,BROWN,TRIM4#

main46243-20021-14iSX60..5F198208-198407

BLUE,*30,BLUE,TRIM8#

46249SHIELD, PARKING BRAKE HOLE

main46249-22020iGX5#,MX51,TX50198003-198208

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46341-14010iGX61,LX60,MX61,SX60..4FC198208-198407

main46341-22030iGX5#,MX51,TX50198003-198208

46361ROD, PARKING BRAKE PULL

main46361-22050iGX61,LX60,SX60..5F198208-198407

46361APIN, PARKING BRAKE PULL ROD

main90240-08037iGX5#,MX51,TX50198003-198208

46361CGROMMET(FOR PARKING BRAKE PULL ROD)

main90480-01429iGX5#,MX51,TX50198003-198208

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-22131iGX61,MX61..SLU,STR198208-198407

main46420-22190iGX50,LX60,SX60,TX50198003-198407

main46420-22250iGX61..SDX198208-198407

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-22050iGX50,LX60,SX60,TX50198003-198407

main46430-22110iGX61,MX61..SLU,STR198208-198407

main46430-22170iGX61..SDX198208-198407

46451BRACKET, CABLE SUPPORT

main46401-22010iGX51,61,MX51,61198003-198407

RH

main46403-22010iGX51,61,MX51,61198003-198407

LH

9017906166

main90179-06166

9046114004

main90461-14004

9046806017

main90468-06017

9046812070

main90468-12070

9161640616

main91616-40616

9161640816

main91616-40816

9165140825

main91651-40825

9165161025

main91651-61025

9412040600

main94120-40600

23 parts on this diagram · 4 diagrams in section
