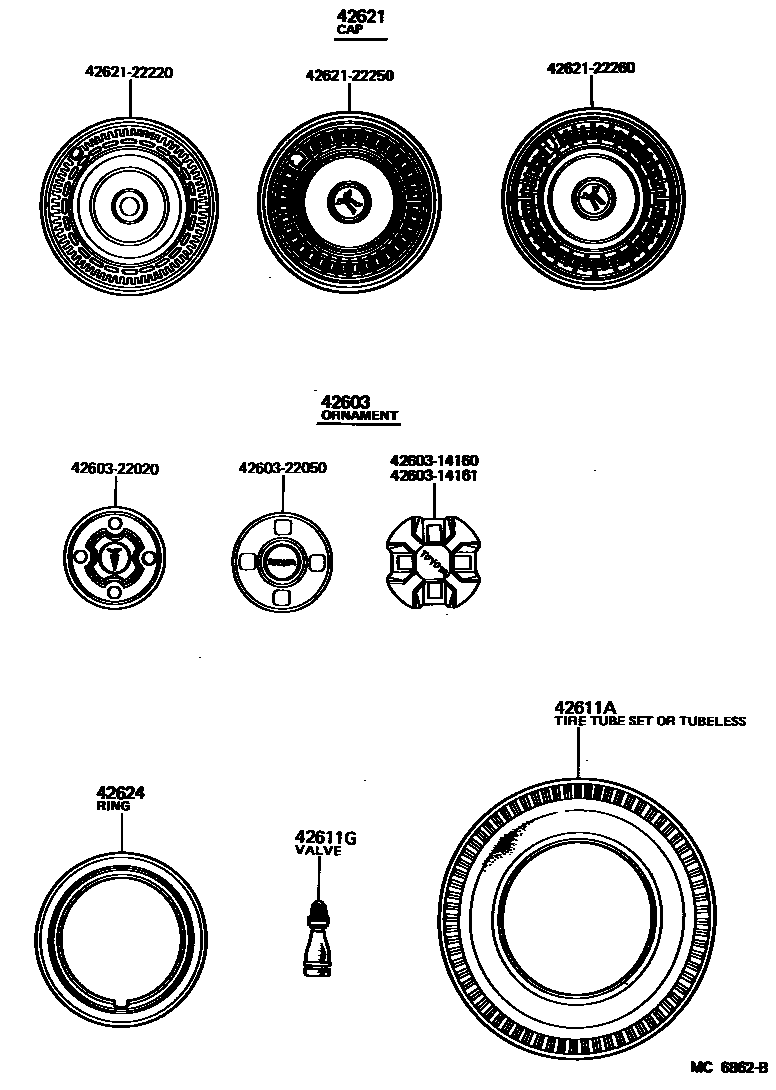

DISC WHEEL & WHEEL CAP

0001 1 0002 1

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-14160×4iMX61..SLU198208-198307

COLD SPEC

main42603-14161×4iMX61..SLU198307-198308

COLD SPEC

main42603-22020×4iGX51,MX51..STR198003-198208

main42603-22050×4iGX51..SLU198108-198109

EXCEED,ALUMI WHEEL

42611ATIRE TUBE SET OR TUBELESS TIRE

main42605-22140×5iGX50,TX50198003-198208

6.45-14-4,W/TUBE

main42652-14230×5iGX61..TWC198208-198407

195/70HR14

main42652-14350×5iGX61,MX61..SLU,STR198208-198407

185/70SR14

main42652-22180×5iGX50,TX50198003-198104

6.45-14-4,TUBELESS

main42652-22240×5iGX50,TX50198003-198104

175SR14,TUBELESS

main42652-22250×5iGX51,MX51198003-198208

185/70HR14

main42652-22290×5iGX61,LX60,SX60,TX50..CTM,SCM,SDX198108-198407

175SR14,TUBELESS

main42652-40040iGX61,LX60,MX61,SX60198208-198407

T135/70D15,SPARE TIRE

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×5iGX5#,61,LX60,MX51,61,SX60,TX50198003-198407

42621CAP, WHEEL

main42621-22220×4iGX5#,TX50..CTM,SCM,SDX,SLU198003-198104

main42621-22250×4iGX51,MX51..SLU198104-198208

main42621-22260×4iGX61,MX61..SLU198208-198407

42624RING, WHEEL CAP

main42624-14030×4iGX51,MX51..STR198003-198202

main42624-14031×4iGX51,MX51..STR198202-198208

4260314160ORNAMENT SUB-ASSY, WHEEL HUB

main42603-14160

4260314161ORNAMENT SUB-ASSY, WHEEL HUB

main42603-14161

4260322020ORNAMENT SUB-ASSY, WHEEL HUB

main42603-22020

4260322050ORNAMENT SUB-ASSY, WHEEL HUB

main42603-22050

4262122220CAP, WHEEL

main42621-22220

4262122250CAP, WHEEL

main42621-22250

4262122260CAP, WHEEL

main42621-22260

12 parts on this diagram · 2 diagrams in section
