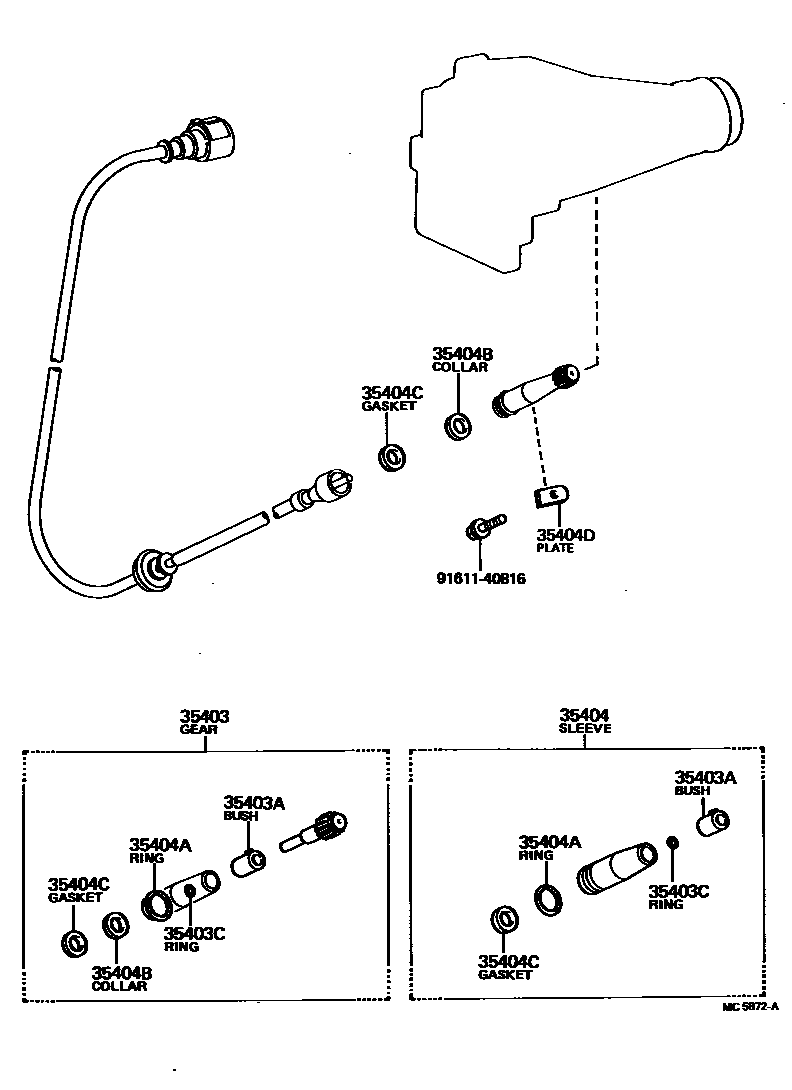

SPEEDOMETER DRIVEN GEAR (ATM)

0001 1 0002 1

35403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-29065iGX61,LX60,MX61,SX60..4FC..(CBR,DSL,TBO,TWC)198208-198407

N=20

main33403-69026iGX61..4FC..EFI198208-198407

N=19

35403ABUSH (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90386-09078iGX5#,TX50..ATM198003-198010

35403CRING, O (FOR AUTOMATIC TRANSMISSION SPEEDOMETER SHAFT)

main90301-09017iGX5#,TX50..ATM198003-198010

35404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)

main33404-30040iGX5#,61,LX60,MX51,61,SX60,TX50..ATM198010-198407

main33404-39016iGX5#,TX50..ATM198003-198010

35404ARING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90301-18018iGX5#,61,LX60,MX51,61,SX60,TX50..ATM198003-198407

35404BCOLLAR, SPEEDOMETER FLEXIBLE TUBE SHAFT GASKET (ATM)

main90201-07069iGX5#,TX50..ATM198003-198010

35404CGASKET, SPEEDOMETER FLEXIBLE TUBE SHAFT (ATM)

main90303-06017iGX5#,TX50..ATM198003-198010

35404DPLATE, SPEEDOMETER SLEEVE LOCK (ATM)

main33485-30010iGX5#,TX50..ATM198003-198010

main33485-30020iGX5#,61,LX60,MX51,61,SX60,TX50..ATM198010-198407

9161140816

main91611-40816

9 parts on this diagram · 2 diagrams in section
