TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

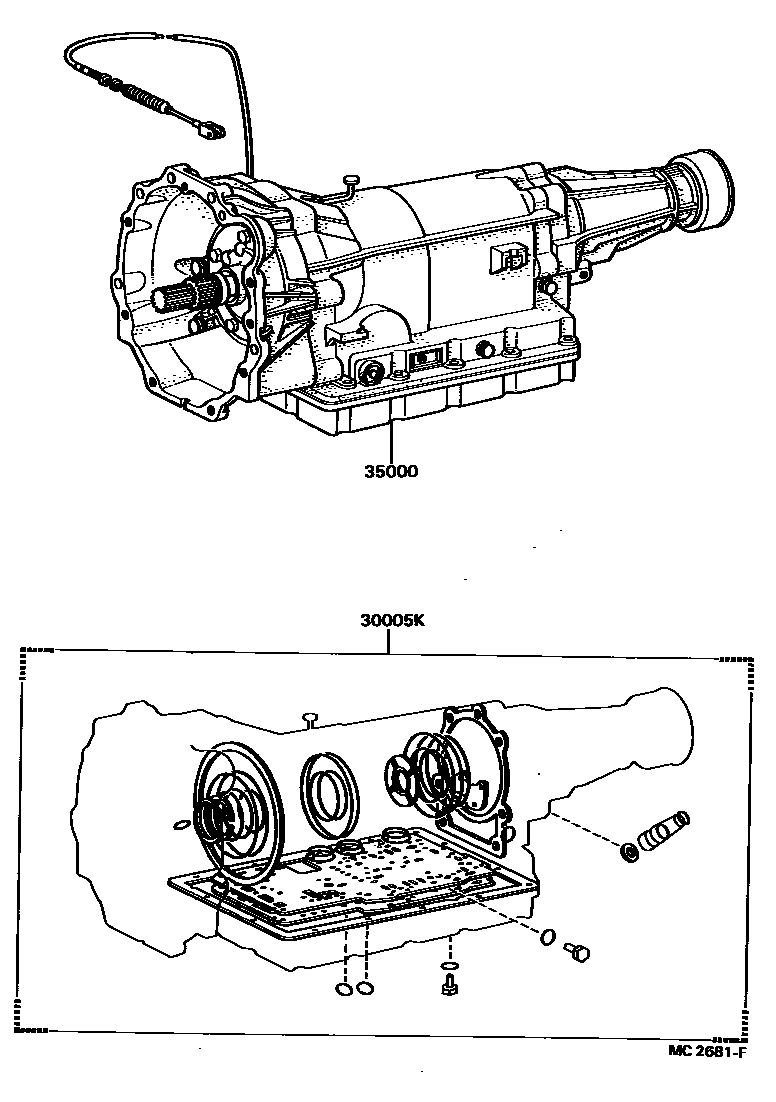

Parts diagram
30005KGASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL
main04351-14011i198104-198108
A42DL
main04351-14012i198108-198209
A42DL
main04351-14013i198209-198407
main04351-22021i198003-198108
main04351-22022i198108-198108
main04351-22023i198108-198208
main04351-22031i198003-198108
A40D
main04351-22032i198108-198407
A40D
main04351-30063i198308-198407
main04351-30071i198110-198209
main04351-30072i198209-198407
main04351-30083i198302-198407
35000TRANSMISSION ASSY, AUTOMATIC
main35000-22461i198008-198208
main35000-22630i198003-198008
SMG R=20:6,FINAL GEAR R=3.909
main35000-22640i198003-198008
SMG R=19:6,FINAL GEAR R=3.909
main35000-22641i198010-198208
A40D
main35000-22650i198003-198008
SMG R=20:6,FINAL R=4.100,W/ESC
main35000-22660i198003-198008
SMG R=19:6,FINAL R=3.909,W/ESC
main35000-22661i198010-198208
A40D,W/ESC
main35000-22670i198003-198008
main35000-22830i198008-198010
SMG R=20:6,FINAL GEAR R=4.100
main35000-22840i198008-198010
SMG R=19:6,FINAL GEAR R=3.909
main35000-22850i198008-198010
SMG R=20:6,FINAL R=4.100,W/ESC
main35000-22860i198008-198010
SMG R=19:6,FINAL R=3.909,W/ESC
main35000-22870i198104-198208
A42DL
main35000-22880i198104-198208
A42DL,W/ESC
main35000-22890i198110-198208
main35000-2A040i198302-198407
W/ESC
main35000-2A060i198208-198407
main35000-2A070i198208-198407
main35000-2A080i198208-198407
W/ESC
main35000-2A120i198208-198308
main35000-2A121i198308-198407
main35000-2A140i198308-198407
main35000-2A200i198302-198407

2 parts on this diagram · 2 diagrams in section
