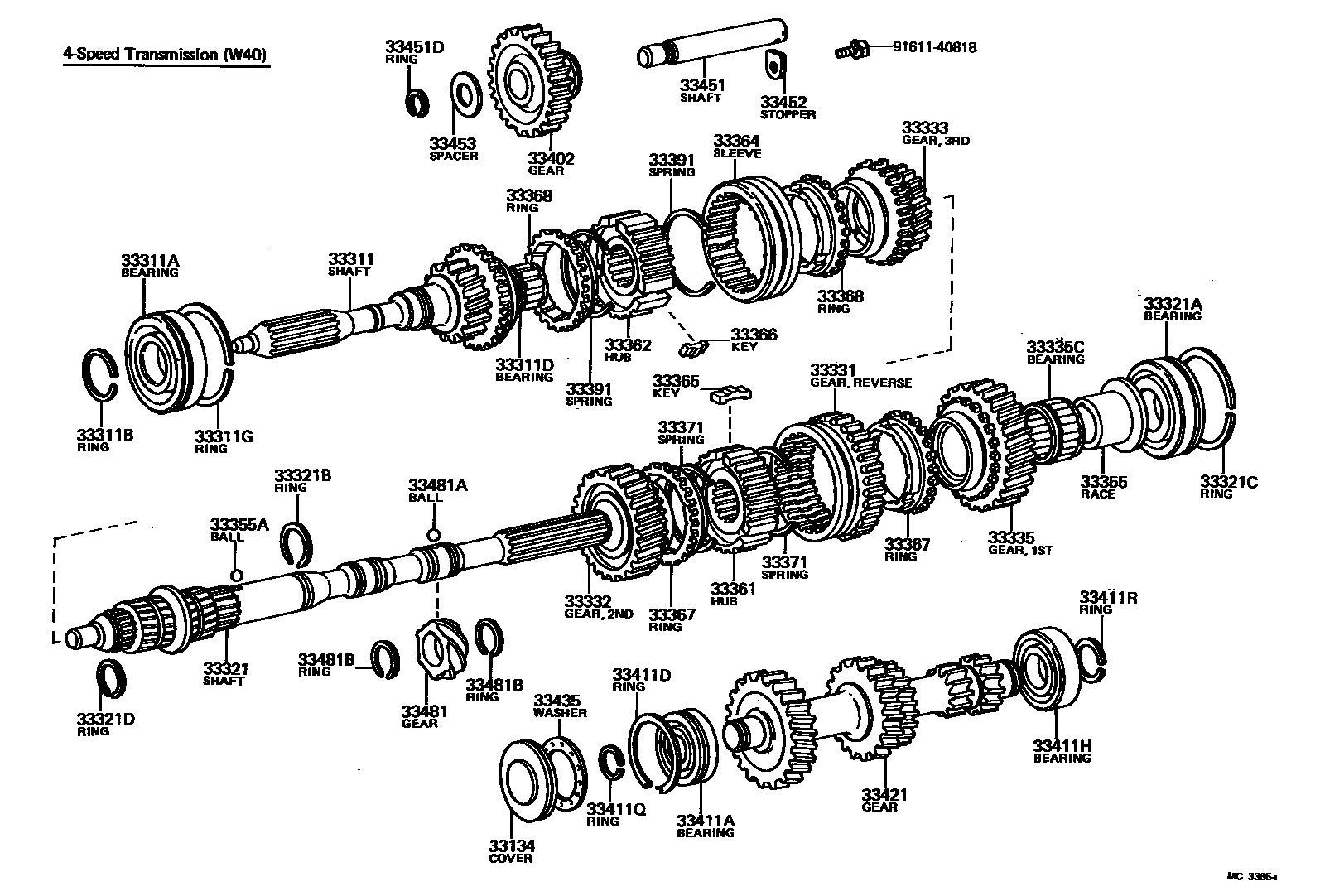

TRANSMISSION GEAR (MTM)
33134COVER, TRANSMISSION COUNTERSHAFT
33311SHAFT, INPUT
33311ABEARING (FOR INPUT SHAFT FRONT)
33311BRING, SHAFT SNAP (FOR FRONT BEARING)
33311DBEARING, INPUT SHAFT
33311GRING, SHAFT SNAP (FOR FRONT BEARING)
33321SHAFT, OUTPUT
33321ABEARING (FOR OUTPUT SHAFT REAR)
33321BRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
T=1.89-1.94
T=1.95-2.00
T=2.01-2.06
T=2.07-2.12
T=2.13-2.18
T=2.19-2.24
T=2.25-2.30
T=2.40-2.45
T=2.50-2.55
T=2.45-2.50
T=2.55-2.60
33321CRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
33321DRING, SHAFT SNAP (FOR CLUTCH HUB SET)
T=2.00-2.05
33331GEAR, REVERSE
N=39
33332GEAR, 2ND
N=29
N=35
N=35
N=29
33333GEAR, 3RD
N=23
N=33
N=33
N=23
33335GEAR, 1ST
N=34
N=34
N=34
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
33355RACE, 1ST GEAR BEARING INNER
33355AKEY OR BALL, 1ST GEAR BEARING INNER RACE LOCK
33361HUB, TRANSMISSION CLUTCH, NO.1
33362HUB, TRANSMISSION CLUTCH, NO.2
33364SLEEVE, TRANSMISSION HUB, NO.2
33365KEY, SYNCHROMESH SHIFTING, NO.1
33366KEY, SYNCHROMESH SHIFTING, NO.2
33367RING, SYNCHRONIZER, NO.1
33368RING, SYNCHRONIZER, NO.2
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33402GEAR SUB-ASSY, REVERSE IDLER
N=31
N=31
N=31
N=31
33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)
33411DRING, COUNTER GEAR FRONT BEARING SNAP, NO.1
33411HBEARING OR ROLLER(FOR COUNTER GEAR REAR)
33411QRING, COUNTER GEAR FRONT BEARING SNAP, NO.2
33411RRING, SNAP, COUNTER GEAR REAR BEARING
T=1.95-2.00
T=1.80-1.85
T=1.40-1.45
33421GEAR, COUNTER
33435WASHER, COUNTER GEAR CASE SIDE THRUST
T=2.05-2.15
T=2.20-2.30
T=2.35-2.45
T=2.50-2.60
33451SHAFT, REVERSE IDLER GEAR
33451DRING, SHAFT SNAP (FOR REVERSE IDLER GEAR SHAFT)
33452STOPPER, REVERSE IDLER GEAR SHAFT
33453SPACER, REVERSE IDLER GEAR SHAFT
33481GEAR, SPEEDOMETER DRIVE (MTM)
33481AKEY OR BALL, SPEEDOMETER DRIVE GEAR (MTM)
33481BRING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR)
9161140818
main91611-40818
43 parts on this diagram · 4 diagrams in section
