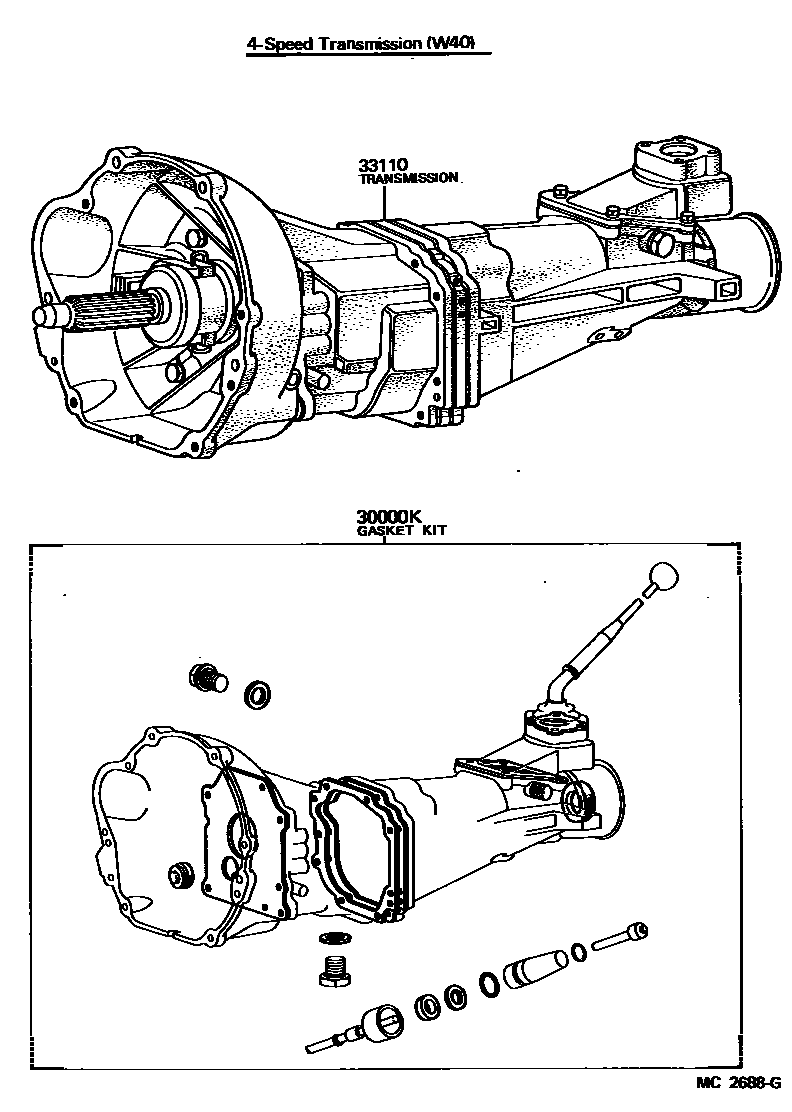

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

0001 1 0002 1 0003 1

30000KGASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-20050iGX5#,61,LX60,SX60,TX50..MTM198010-198407

main04331-22021iTX50..4F198003-198010

main04331-22030iGX5#..5F198003-198010

33110TRANSMISSION ASSY, MANUAL

main33030-22361iTX50..4F198003-198008

W/REDUCTION STATER

main33030-22460iTX50..4F198003-198008

main33030-22480iGX5#..5F198003-198010

main33030-22500iGX51..5F198010-198207

main33030-22520iTX50..4F198010-198208

main33030-22591iLX60..5F198308-198407

main33030-22610iGX50..5F198010-198208

main33030-22660iTX50..4F198008-198010

main33030-22690iSX60..5F198208-198407

main33030-22720iGX61..5F..TWC198208-198407

main33030-22740iSX60..5F198302-198407

*30

main33030-22750iLX60..5F..CTM198308-198407

*30

main33030-24020iGX61..5F..EFI198208-198407

2 parts on this diagram · 3 diagrams in section
