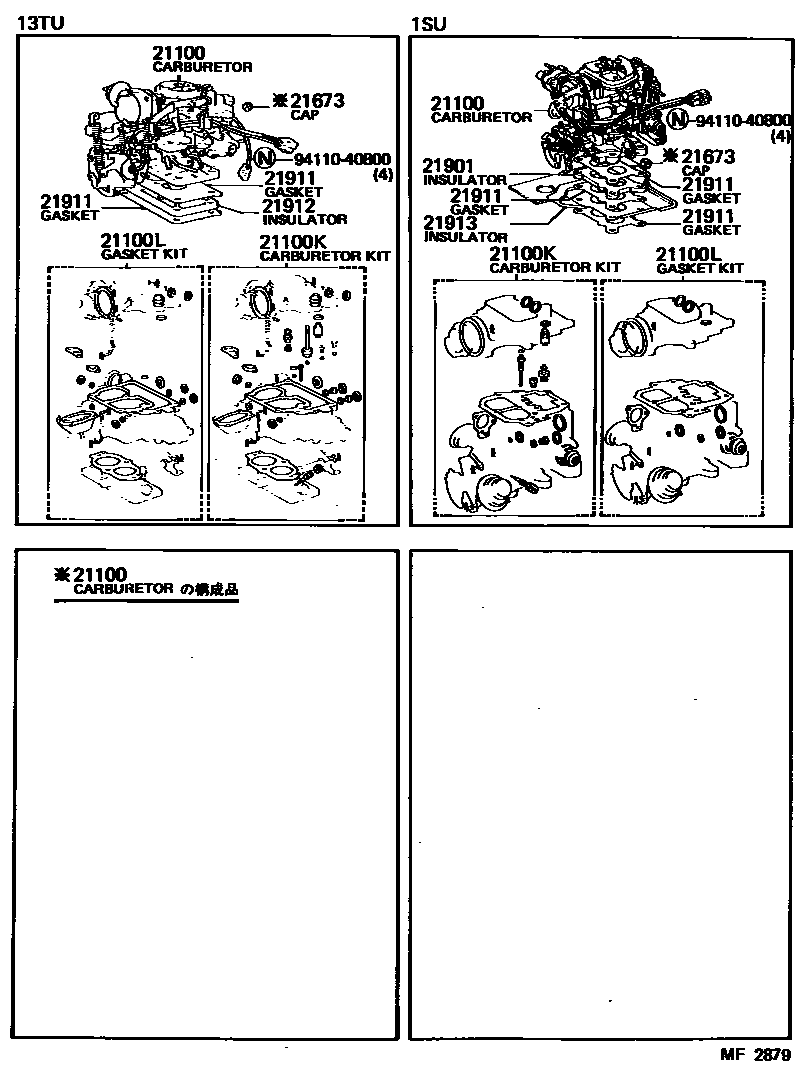

CARBURETOR ASSEMBLY

21100CARBURETOR ASSY

main21100-18060i13TU..TX50..4F198003-198009

main21100-18090i13TU..TX50..3FC198003-198208

main21100-18130i13TU..TX50..4F198009-198208

main21100-63070i1SU..SX60..5F198208-198308

main21100-63080i1SU..SX60..4FC198208-198308

main21100-63160i1SU..SX60..5F198307-198308

COLD SPEC

main21100-63170i1SU..SX60..4FC198308-198407

21100KCARBURETOR KIT

main04211-18060i13TU..TX50..3FC198003-198004

main04211-18061i13TU..TX50..3FC198004-198208

main04211-18080i13TU..TX50..4F198009-198208

main04211-27060i13TU..TX50..4F198003-198004

main04211-27061i13TU..TX50..4F198004-198009

main04211-63031i1SU..SX60198208-198407

21100LGASKET KIT, CARBURETOR

main04212-18010i13TU..TX50..4F198009-198208

main04212-28012i13TU..TX50198003-198009

main04212-63010i1SU..SX60198208-198407

21673CAP, IDLE LIMIT

main21673-13280i13TU..TX50; 1SU..SX60198206-198407

main21673-38020i13TU..TX50198003-198206

21901INSULATOR SUB-ASSY, CARBURETOR HEAT, NO.1

main21901-63010i1SU..SX60198208-198407

21911GASKET, CARBURETOR

main21911-26010×2i13TU..TX50198003-198208

main21911-63010×3i1SU..SX60198208-198407

21912INSULATOR, CARBURETOR HEAT

main21912-26021i13TU..TX50198003-198208

21913INSULATOR, CARBURETOR HEAT, NO.2

main21902-63010i1SU..SX60198208-198405

main21902-63011i1SU..SX60198405-198407

9411040800

main94110-40800

9 parts on this diagram · 1 diagram in section
