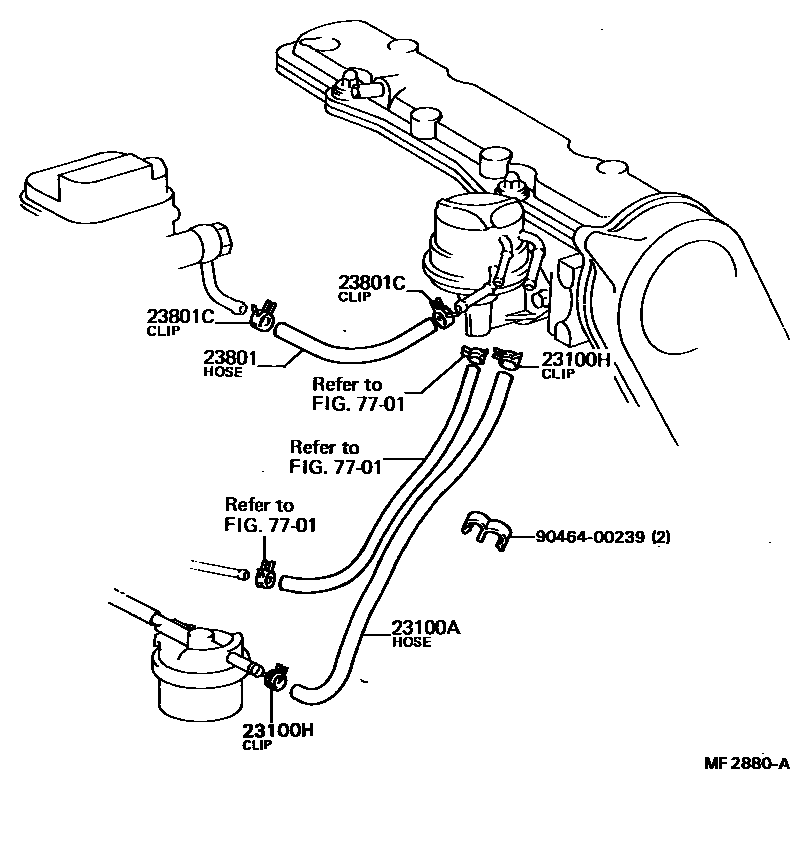

FUEL PIPE & CLAMP

0001 1 0002 1

23100AHOSE, FUEL

main90445-12126i1SU..SX60198208-198407

main95332-06030i13TU..TX50198003-198208

*H,L=240

23100HCLIP(FOR FUEL HOSE)

main96132-30600×2i13TU..TX50; 1SU..SX60198003-198407

23801PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1

main95332-06020i13TU..TX50; 1SU..SX60198206-198404

main95332-06030i13TU..TX50198003-198206

23801CCLIP(FOR CARBURETOR FUEL HOSE)

main96132-30600×2i13TU..TX50; 1SU..SX60198003-198407
