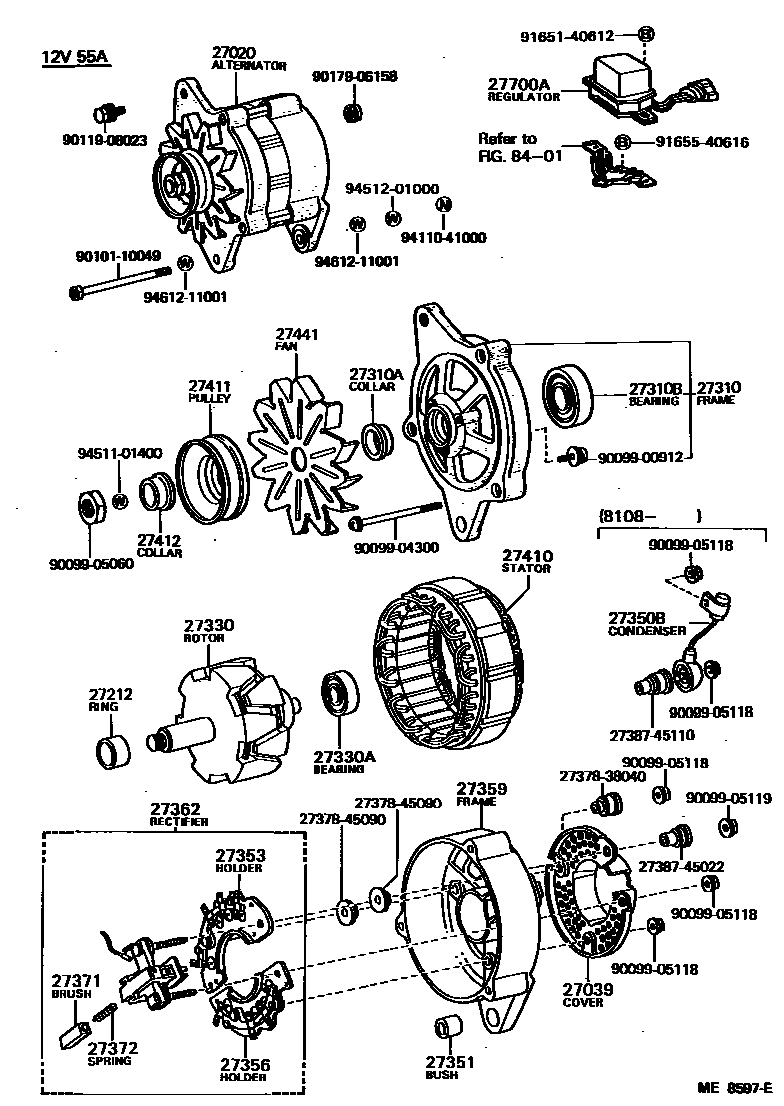

27020ALTERNATOR ASSY

main27020-34021i13TU..TX50198003-198208

main27020-54012iL..LX60198308-198407

main27020-54070iL..LX60198308-198407

main27020-63010i1SU..SX60198208-198407

main27020-70010i1GEU..GX50198003-198208

12V 55A

sub27020-70020

main27020-70020i1GEU..GX5#198003-198208

12V 60A

main27060-43020iMTEU..MX51198110-198208

sub27060-43030

main27060-43030iMTEU..MX51,61198110-198308

main27060-43060iMTEU..MX61198308-198407

sub27060-43110

main27060-70040i1GEU..GX61198208-198308

main27060-70050i1GGEU..GX61198208-198407

main27060-70080i1GEU..GX61198308-198407

27039COVER, ALTERNATOR REAR END

main27039-45110i13TU..TX50198003-198208

12V 55A

main27039-56090iL..LX60198308-198407

12V 55A

main27039-63020i1GGEU..GX61198208-198303

12V 70A

sub27039-63021

main27039-63021i1GGEU..GX61198303-198407

12V 70A

sub27039-72010

main27039-63021iMTEU..MX61198308-198407

12V 60A

sub27039-72010

main27039-70080i1GEU..GX61198308-198407

12V 60A

sub27039-70081

27212RING, SPACE(FOR ALTERNATOR ROTOR)

main27412-45070i13TU,1GEU,1SU,MTEU..GX5#,61,MX51,61,SX60,TX50198003-198308

12V 55A,60A,65A

main27412-45070i1SU..SX60198308-198407

12V 55A

main27412-54040iL..LX60198308-198407

12V 55A,60A

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-34050i13TU..TX50198003-198208

12V 55A

main27310-43040iMTEU..MX51,61198110-198308

12V 65A

main27310-45110iMTEU..MX51198207-198208

12V 60A

main27310-54012iL..LX60198308-198407

12V 55A

sub27310-54080

main27310-54080iL..LX60198308-198407

12V 60A

main27310-61070iMTEU..MX51198110-198207

12V 60A

main27310-63010i1SU..SX60198208-198407

12V 55A

main27310-63020i1GGEU..GX61198208-198407

12V 70A

main27310-70010i1GEU..GX5#198003-198208

12V 55A,60A

main27310-70030i1GEU..GX61198208-198308

12V 65A

main27310-70080i1GEU..GX61198308-198407

12V 60A

main27310-72010iMTEU..MX61198308-198309

12V 60A

sub27310-72050

main27310-72050iMTEU..MX61198309-198407

12V 60A

27310ACOLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)

main27412-31040i13TU,1GEU,1SU,MTEU..GX5#,61,MX51,61,SX60,TX50198003-198308

12V 55A,60A,65A

main27412-31040i1SU..SX60198308-198407

12V 55A

main27412-63020i1GGEU..GX61198208-198210

12V 70A

main90099-19251iL..LX60198308-198407

12V 55A,60A

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10115i13TU,1GEU..GX5#,TX50198003-198006

12V 55A,60A

sub90099-10125

main90099-10120iL..LX60198308-198407

12V 55A,60A

main90099-10125i13TU,1GEU,1SU,MTEU..GX5#,61,MX51,61,SX60,TX50198006-198308

12V 55A,60A,65A

main90099-10125i1SU..SX60198308-198407

12V 55A

main90099-10141i1GGEU..GX61198208-198309

12V 70A,OD=42

main90099-10141i1GEU,MTEU..GX61,MX61198308-198309

12V 60A,OD=42

main90099-10152i1G#,MTEU..GX61,MX61198309-198407

12V 60A,70A,OD=43

27330ROTOR ASSY, ALTERNATOR

main27330-15070iMTEU..MX51198110-198208

12V 60A

sub27330-45090

main27330-43040i1GEU,MTEU..GX61,MX51,61198110-198308

12V 65A

main27330-45070i13TU..TX50198003-198208

12V 55A

sub27330-16030

main27330-45090i1GEU..GX5#198003-198208

12V 55A,60A

sub27330-43040

main27330-54011iL..LX60198308-198407

12V 55A

main27330-54070iL..LX60198308-198407

12V 60A

main27330-63010i1SU..SX60198208-198407

12V 55A

main27330-63020i1GGEU..GX61198208-198303

12V 70A

sub27330-72101

sub27312-63020

main27330-63021i1GGEU..GX61198303-198407

12V 70A

sub27330-72100

main27330-63021i1GEU,MTEU..GX61,MX61198308-198407

12V 60A

sub27330-72100

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10116i13TU,1GEU,1SU,MTEU..GX5#,61,MX51,61,SX60,TX50198003-198308

12V 55A,60A,65A

main90099-10116i1SU..SX60198308-198407

12V 55A

main90099-10140i1GEU,MTEU..GX61,MX61198308-198407

12V 60A

main90099-10140i1GGEU..GX61198208-198407

12V 70A

27350FRAME ASSY, RECTIFIER END

main27350-54010iL..LX60198308-198407

12V 55A

sub27350-57061

main27350-57061iL..LX60198308-198407

12V 60A

27350BCONDENSER, ALTERNATOR

main90099-52065i1SU..SX60198308-198407

12V 55A

sub90099-52034

main90099-52065i13TU,1GEU,1SU,MTEU..GX5#,61,MX51,61,SX60,TX50198003-198308

12V 55A,60A,65A

sub90099-52034

main90099-52066iL..LX60198308-198407

12V 55A,60A

sub90099-52035

27351BUSH(FOR ALTERNATOR RECTIFIER END FRAME)

main27351-38051i13TU,1SU,MTEU..MX51,61,SX60,TX50198003-198308

12V 55A,60A,65A

main27351-38051i1SU..SX60198308-198407

12V 55A

main27351-56013iL..LX60198308-198407

12V 55A,60A

main27351-70010i1GEU..GX5#,61198003-198407

12V 55A,60A,65A

27353HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR

main27353-34021i13TU..TX50198003-198208

12V 55A

main27353-54010iL..LX60198308-198407

12V 55A

main27353-57070iL..LX60198308-198407

12V 60A

sub27353-54180

27356HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR

main27356-34021i13TU..TX50198003-198208

12V 55A

main27356-54010iL..LX60198308-198407

12V 55A

main27356-57070iL..LX60198308-198407

12V 60A

sub27356-54170

27359FRAME, ALTERNATOR RECTIFIER END

main27359-16010iMTEU..MX61198308-198404

12V 60A

sub27359-16011

sub27370-16011

main27359-24100i13TU..TX50198003-198208

12V 55A

main27359-43020iMTEU..MX51,61198110-198308

12V 60A,65A

main27359-43050iMTEU..MX61198404-198407

12V 60A

sub27359-16011

main27359-63010i1SU..SX60198208-198407

12V 55A

main27359-63020i1GGEU..GX61198208-198404

12V 70A

sub27359-63021

sub27370-63021

main27359-63021i1GGEU..GX61198404-198407

12V 70A

sub27359-63081

main27359-70010i1GEU..GX5#198003-198208

12V 55A,60A

main27359-70030i1GEU..GX61198208-198308

12V 65A

main27359-70080i1GEU..GX61198308-198404

12V 60A

sub27359-70081

sub27370-16011

main27359-70081i1GEU..GX61198404-198407

12V 60A

27362RECTIFIER ASSY, W/BRUSH

main27362-34020i13TU..TX50198003-198007

12V 55A

main27362-34021i13TU..TX50198007-198208

12V 55A

sub27362-63011

main27362-41080i1GEU..GX5#198003-198006

12V 55A

sub27362-70011

main27362-43040i1GEU,MTEU..GX61,MX51,61198110-198308

12V 60A,65A

main27362-45120i1GEU..GX5#198003-198006

12V 60A

sub27362-70020

main27362-63011i1SU..SX60198208-198407

12V 55A

main27362-70010i1GEU..GX5#198006-198011

12V 55A

sub27362-70011

main27362-70011i1GEU..GX50198011-198208

12V 55A

main27362-70020i1GEU..GX5#198006-198011

12V 60A

sub27362-70021

main27362-70021i1GEU..GX5#198011-198208

12V 60A

27371BRUSH, ALTERNATOR

main27371-31011i13TU,1GEU,1SU,MTEU..GX5#,61,MX51,61,SX60,TX50198007-198308

12V 55A,60A,65A

main27371-31011i1GEU..GX5#198006-198007

12V 55A,60A

main27371-31011i1SU..SX60198308-198407

12V 55A

main27371-44070i13TU..TX50198006-198007

12V 55A

sub27371-31011

main27371-44070i13TU,1GEU..GX5#,TX50198003-198006

12V 55A,60A

sub27371-31011

main27371-56070iL..LX60198308-198407

12V 55A,60A

sub27371-54412

main27371-63020i1GGEU..GX61198208-198407

12V 70A

sub27371-70300

main27371-63020i1GEU,MTEU..GX61,MX61198308-198407

12V 60A

sub27371-70300

27372SPRING, ALTERNATOR BRUSH

main27372-31011i1SU..SX60198308-198407

12V 55A

main27372-31011i1GEU..GX5#198006-198007

12V 55A,60A

main27372-31011i13TU,1GEU,1SU,MTEU..GX5#,61,MX51,61,SX60,TX50198007-198308

12V 55A,60A,65A

main27372-56070iL..LX60198308-198407

12V 55A,60A

main27372-63020i1GEU,MTEU..GX61,MX61198308-198407

12V 60A

sub27372-87501

main27372-63020i1GGEU..GX61198208-198407

12V 70A

sub27372-87501

main90099-17114i13TU,1GEU..GX5#,TX50198003-198006

12V 55A,60A

sub27372-31011

main90099-17114i13TU..TX50198006-198007

12V 55A

sub27372-31011

27410STATOR ASSY, ALTERNATOR

main27410-41080i1GEU..GX5#198003-198208

12V 55A

main27410-43040i1GEU,MTEU..GX61,MX51,61198110-198308

12V 65A

main27410-43040i1SU..SX60198208-198407

12V 55A

main27410-45120i1GEU,MTEU..GX5#,MX51198003-198208

12V 55A

sub27410-43040

main27410-45120i1GEU,MTEU..GX5#,MX51198003-198208

12V 60A

sub27410-43040

main27410-54070iL..LX60198308-198407

12V 60A

main27410-64010iL..LX60198308-198407

12V 55A

27411PULLEY, ALTERNATOR

main27411-31042i13TU..TX50198003-198208

12V 55A

main27411-41071iMTEU..MX51,61198110-198308

12V 60A,65A

main27411-43050iMTEU..MX61198308-198407

12V 60A

main27411-45010i1GEU..GX5#,61198003-198308

12V 55A,60A,65A

main27411-54020iL..LX60198308-198407

12V 55A,60A

main27411-63011i1SU..SX60198208-198407

12V 55A

main27411-70050i1GGEU..GX61198208-198210

12V 70A

main27411-70051i1GGEU..GX61198210-198407

12V 70A

main27411-70090i1GEU..GX61198308-198407

12V 60A

27412COLLAR, SPACER(FOR ALTERNATOR PULLEY)

main27412-44030i13TU..TX50198003-198208

12V 55A

sub27412-44031

27441FAN, ALTERNATOR

main27441-34030i13TU..TX50198003-198208

12V 55A

main27441-44050iMTEU..MX51,61198110-198308

12V 65A

main27441-45110i1GEU,MTEU..GX5#,MX51198003-198208

12V 55A,60A

main27441-54040iL..LX60198308-198407

12V 55A

main27441-54070iL..LX60198308-198407

12V 60A

main27441-63030i1SU..SX60198208-198407

12V 55A

main27441-70040i1GEU..GX61198208-198308

12V 65A

27700AREGULATOR ASSY, GENERATOR

main27700-27050i13TU..TX50198003-198208

12V 55A

sub27700-54030

main27700-41050i1GEU..GX5#198003-198208

12V 55A,60A

main27700-43010i1GEU,MTEU..GX61,MX51,61198110-198308

12V 60A,65A

main27700-57060iL..LX60198308-198407

12V 60A

main27700-63010iL..LX60198308-198407

12V 55A

main27700-63020i1GGEU..GX61198208-198304

12V 70A

main27700-63021i1GEU,MTEU..GX61,MX61198308-198407

12V 60A

sub27700-70030

main27700-63021i1GGEU..GX61198304-198407

12V 70A

sub27700-70030

main27700-63040i1SU..SX60198208-198407

12V 55A

8401

2737838040INSULATOR, ALTERNATOR, NO.1

main27378-38040

2737845090INSULATOR, ALTERNATOR, NO.1

main27378-45090

2738745022INSULATOR, TERMINAL

main27387-45022

2738745110INSULATOR, TERMINAL

main27387-45110

9009900912

main90099-00912

9009904300

main90099-04300

9009905060

main90099-05060

9009905118

main90099-05118

9009905119

main90099-05119

9010110049

main90101-10049

9011908023

main90119-08023

9017906158

main90179-06158

9165140612

main91651-40612

9165540616

main91655-40616

9411041000

main94110-41000

9451101400

main94511-01400

9451201000

main94512-01000

9461211001

main94612-11001
