ENGINE OVERHAUL GASKET KIT

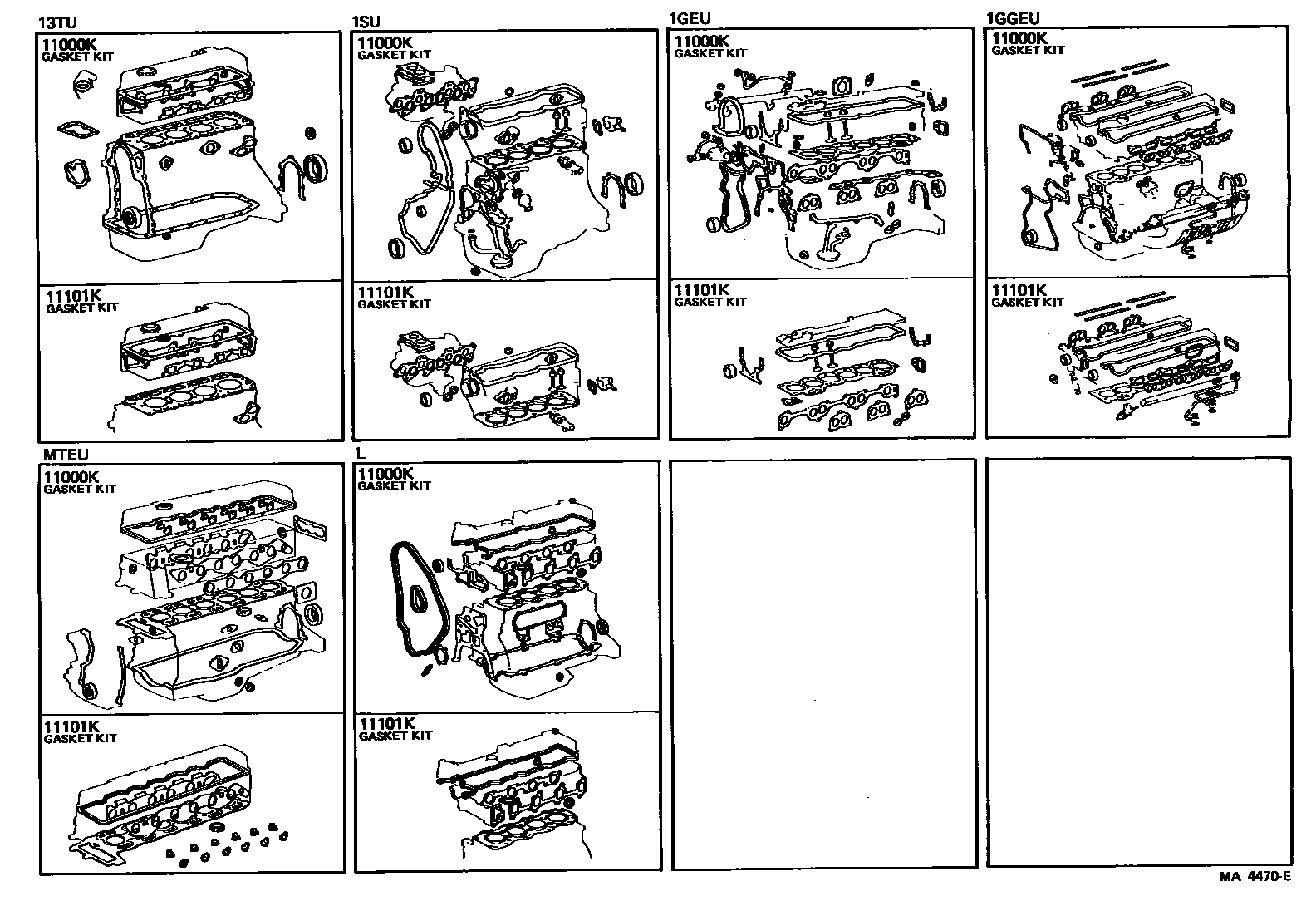

Parts diagram

11000KGASKET KIT, ENGINE OVERHAUL

main04111-28013i198003-198008

main04111-28014i198008-198101

main04111-28015i198101-198201

main04111-28017i198201-198208

main04111-41090i198110-198407

main04111-54034i198308-198407

main04111-63010i198208-198407

main04111-70010i198003-198010

main04111-70011i198010-198208

main04111-70012i198208-198407

main04111-70020i198208-198407

11101KGASKET KIT, ENGINE VALVE GRIND

main04112-28013i198003-198008

main04112-28014i198008-198101

main04112-28015i198101-198201

main04112-28016i198201-198208

main04112-41090i198110-198407

main04112-54022i198308-198407

main04112-63010i198208-198407

main04112-70010i198003-198407

main04112-70020i198208-198407

2 parts on this diagram · 1 diagram in section
