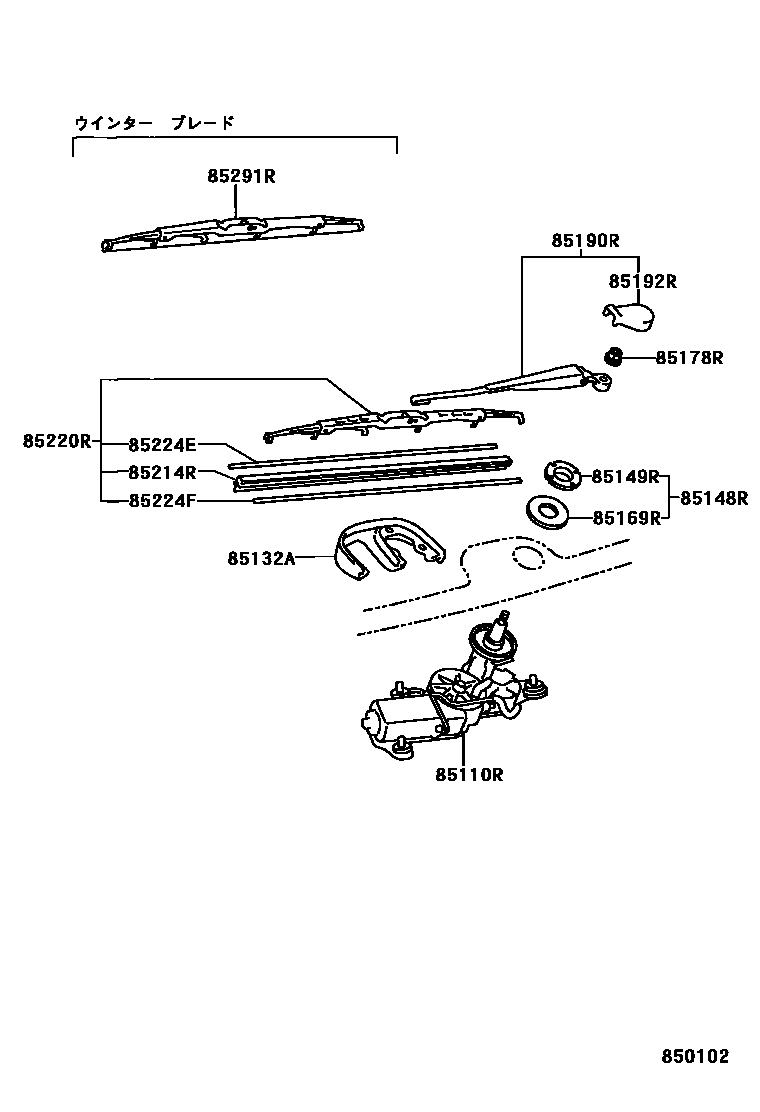

REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85130-22550iGX10#,JZX10#,LX100..AVT,AVTG,TOU,TOUS,TOUV199609

85132ACOVER, REAR WIPER SHAFT

main85132-22520-B0iGX100,JZX100..TOU,TOUS,TOUV199609-199808

DK.BLUE GRAY,TRIM1#

sub85132-22520

main85132-22520-C0iGX100,JZX100..TOU,TOUS,TOUV199808

BLACK,TRIM2#

sub85132-22520

main85132-22520-E0iGX10#,JZX10#,LX100..AVT,AVTG199609

ORCHID BROWN,TRIM4#

sub85132-22520

main85132-22520-G0iGX10#,JZX10#,LX100..AVT,AVTG199609

DK.SAGE,TRIM6#

sub85132-22520

85148RNUT, W/WASHER PACKING, REAR WIPER LINK PIVOT

main85148-12020iGX10#,JZX10#,LX100..AVT,AVTG,TOU,TOUS,TOUV199609

85149RNUT, WIPER MOTOR

main90179-22013iGX10#,JZX10#,LX100..AVT,AVTG,TOU,TOUS,TOUV199609

85169RWASHER, REAR WIPER LINK PIVOT, NO.1

main90210-28002iGX10#,JZX10#,LX100..AVT,AVTG,TOU,TOUS,TOUV199609

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iGX10#,JZX10#,LX100..AVT,AVTG,TOU,TOUS,TOUV199609

85190RARM ASSY, REAR WIPER

main85241-22050iGX10#,JZX10#,LX100..AVT,AVTG,TOU,TOUS,TOUV199609

85192RCOVER, REAR WIPER ARM

main85192-13060iGX10#,JZX10#,LX100..AVT,AVTG,TOU,TOUS,TOUV199609

85214RRUBBER, REAR WIPER

main85214-22400iGX10#,JZX10#,LX100..AVT,AVTG,TOU,TOUS,TOUV199609

sub85214-48020

85220RBLADE ASSY, REAR WIPER

main85242-22050iGX10#,JZX10#,LX100..AVT,AVTG,TOU,TOUS,TOUV199609

sub85222-48030

85224EPLATE, REAR WIPER RUBBER BACKING, NO.1

main85224-35040iGX10#,JZX10#,LX100..AVT,AVTG,TOU,TOUS,TOUV199609

85224FPLATE, REAR WIPER RUBBER BACKING, NO.2

main85224-35040iGX10#,JZX10#,LX100..AVT,AVTG,TOU,TOUS,TOUV199609

85291RBLADE,REAR WIPER, WINTER

main85291-60020iGX10#,JZX10#,LX100..AVT,AVTG,TOU,TOUS,TOUV199609

sub85291-33050

13 parts on this diagram · 1 diagram in section
