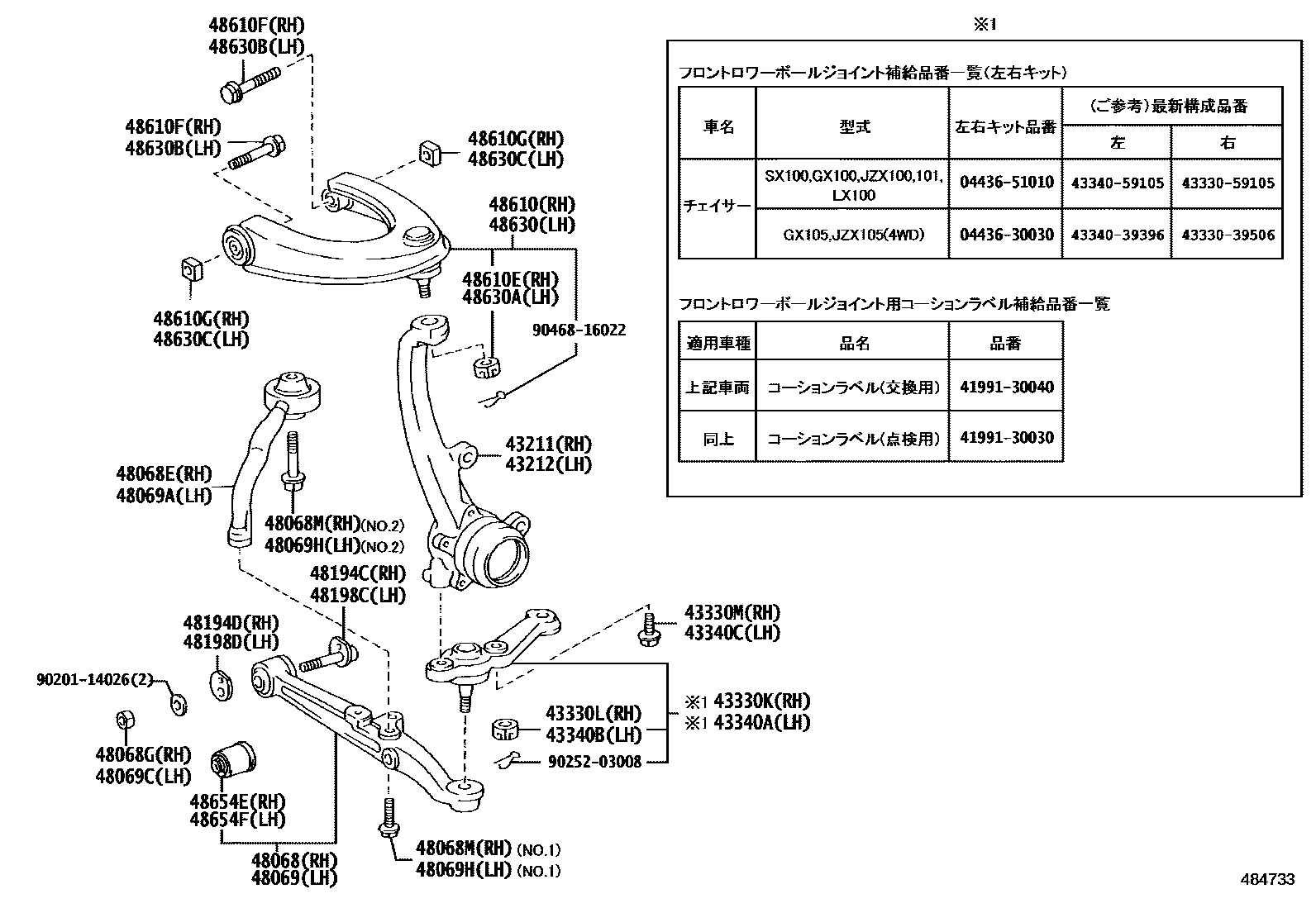

FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0002 1

43211KNUCKLE, STEERING, RH

main43211-30170iGX105,JZX105199609-200104

main43211-30172iGX105,JZX105200104-200106

main43211-30190iGX100,JZX100,101,LX100,SX100199609-200104

main43211-30191iGX100,JZX100,101,SX100200104-200106

43212KNUCKLE, STEERING, LH

main43212-30120iGX105,JZX105199609-200104

main43212-30122iGX105,JZX105200104-200106

main43212-30140iGX100,JZX100,101,LX100,SX100199609-200104

main43212-30141iGX100,JZX100,101,SX100200104-200106

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-29355iGX100,JZX100,101,LX100,SX100199609-199805

main43330-29356iGX100,JZX100,101,LX100,SX100199805-199808

main43330-29365iJZX105199609-199805

main43330-29366iJZX105199805-199808

main43330-29385iGX100,JZX100,101,LX100,SX100199808-200011

main43330-39505iGX105,JZX105199808-200009

main43330-39506iGX105,JZX105200009

main43330-59085iGX100,JZX100,101,SX100200011

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-14002iGX10#,JZX10#,LX100,SX100199609

43330MBOLT (FOR FRONT LOWER BALL JOINT RH)

main90105-12141×2iGX10#,JZX10#,LX100,SX100199609

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43340-29145iGX100,JZX100,101,LX100,SX100199609-199805

main43340-29146iGX100,JZX100,101,LX100,SX100199805-199808

main43340-29155iJZX105199609-199805

main43340-29156iJZX105199805-199808

main43340-29165iGX100,JZX100,101,LX100,SX100199808-200011

main43340-39395iGX105,JZX105199808-200009

main43340-39396iGX105,JZX105200009

main43340-59085iGX100,JZX100,101,SX100200011

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-14002iGX10#,JZX10#,LX100,SX100199609

43340CBOLT (FOR FRONT LOWER BALL JOINT LH)

main90105-12141×2iGX10#,JZX10#,LX100,SX100199609

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-22120iGX105,JZX105199609

main48068-22130iGX100,JZX100,101,LX100,SX100..AVT,AVTG,RAF,TOU,XL199609

main48068-22140iJZX100..TOUS,TOUV199609

48068EARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.2 RH

main48660-22140iGX100,JZX100,101,LX100,SX100..AVT,AVTG,RAF,TOU,TOUS,XL199609-199707

main48660-22150iJZX100..TOUV199609

main48660-30211iGX105,JZX105199609

main48660-30221iGX100,JZX100,101,LX100,SX100..AVT,AVTG,RAF,TOU,TOUS,XL199707

48068GNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90170-14012iGX10#,JZX10#,LX100,SX100199609

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90105-14100×2iGX105,JZX105199609

main90105-16053×2iGX100,JZX100,101,LX100,SX100199609

main90901-05010iGX100,JZX100,101,LX100,SX100199609

main90901-05018iGX105,JZX105199609

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-22120iGX105,JZX105199609

main48069-22130iGX100,JZX100,101,LX100,SX100..AVT,AVTG,RAF,TOU,XL199609

main48069-22140iJZX100..TOUS,TOUV199609

48069AARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.2 LH

main48670-22140iGX100,JZX100,101,LX100,SX100..AVT,AVTG,RAF,TOU,TOUS,XL199609-199707

main48670-22150iJZX100..TOUV199609

main48670-30211iGX105,JZX105199609

main48670-30221iGX100,JZX100,101,LX100,SX100..AVT,AVTG,RAF,TOU,TOUS,XL199707

48069CNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90170-14012iGX10#,JZX10#,LX100,SX100199609

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90105-14100×2iGX105,JZX105199609

main90105-16053×2iGX100,JZX100,101,LX100,SX100199609

main90901-05010iGX100,JZX100,101,LX100,SX100199609

main90901-05018iGX105,JZX105199609

48194CCAM, FRONT SUSPENSION CAMBER ADJUST, NO.1 RH

main48190-22040iGX10#,JZX10#,LX100,SX100199609

48194DCAM, FRONT SUSPENSION CAMBER ADJUST, NO.2 RH

main48198-14010iGX10#,JZX10#,LX100,SX100199609

48198CCAM, FRONT SUSPENSION CAMBER ADJUST, NO.1 LH

main48190-22040iGX10#,JZX10#,LX100,SX100199609

48198DCAM, FRONT SUSPENSION CAMBER ADJUST, NO.2 LH

main48198-14010iGX10#,JZX10#,LX100,SX100199609

48610ARM ASSY, FRONT SUSPENSION UPPER, RH

main48610-29115iGX100,JZX100..TOU,TOUS,TOUV199609

main48610-39045iGX100,JZX100,101,LX100,SX100..AVT,AVTG,RAF,XL199609

main48610-39055iGX105,JZX105199609

48610ENUT, CASTLE(FOR FRONT SUSPENSION UPPER ARM RH)

main90171-12002iGX10#,JZX10#,LX100,SX100199609

48610FBOLT(FOR FRONT SUSPENSION UPPER ARM RH)

main90119-10812×2iGX10#,JZX10#,LX100,SX100199609

48610GNUT(FOR FRONT SUSPENSION UPPER ARM RH)

main90173-10010×2iGX10#,JZX10#,LX100,SX100199609

48630ARM ASSY, FRONT SUSPENSION, UPPER LH

main48610-39055iGX105,JZX105199609

main48630-29105iGX100,JZX100..TOU,TOUS,TOUV199609

main48630-39025iGX100,JZX100,101,LX100,SX100..AVT,AVTG,RAF,XL199609

48630ANUT, CASTLE(FOR FRONT SUSPENSION UPPER ARM LH)

main90171-12002iGX10#,JZX10#,LX100,SX100199609

48630BBOLT(FOR FRONT SUSPENSION UPPER ARM LH)

main90119-10812×2iGX10#,JZX10#,LX100,SX100199609

48630CNUT(FOR FRONT SUSPENSION UPPER ARM LH)

main90173-10010×2iGX10#,JZX10#,LX100,SX100199609

48654EBUSH, FRONT LOWER ARM, NO.1 RH

main48654-22050iJZX100..TOUS,TOUV199609

main48654-30060iGX105,JZX105199609

main48654-30070iGX100,JZX100,101,LX100,SX100..AVT,AVTG,RAF,TOU,XL199609

48654FBUSH, FRONT LOWER ARM, NO.1 LH

main48654-22050iJZX100..TOUS,TOUV199609

main48654-30060iGX105,JZX105199609

main48654-30070iGX100,JZX100,101,LX100,SX100..AVT,AVTG,RAF,TOU,XL199609

0443630030

main04436-30030

0443651010

main04436-51010

4199130030CAUTION PLATE, REAR DIFFERENTIAL

main41991-30030

4199130040CAUTION PLATE, REAR DIFFERENTIAL

main41991-30040

9020114026

main90201-14026

9025203008

main90252-03008

9046816022

main90468-16022

37 parts on this diagram · 2 diagrams in section
