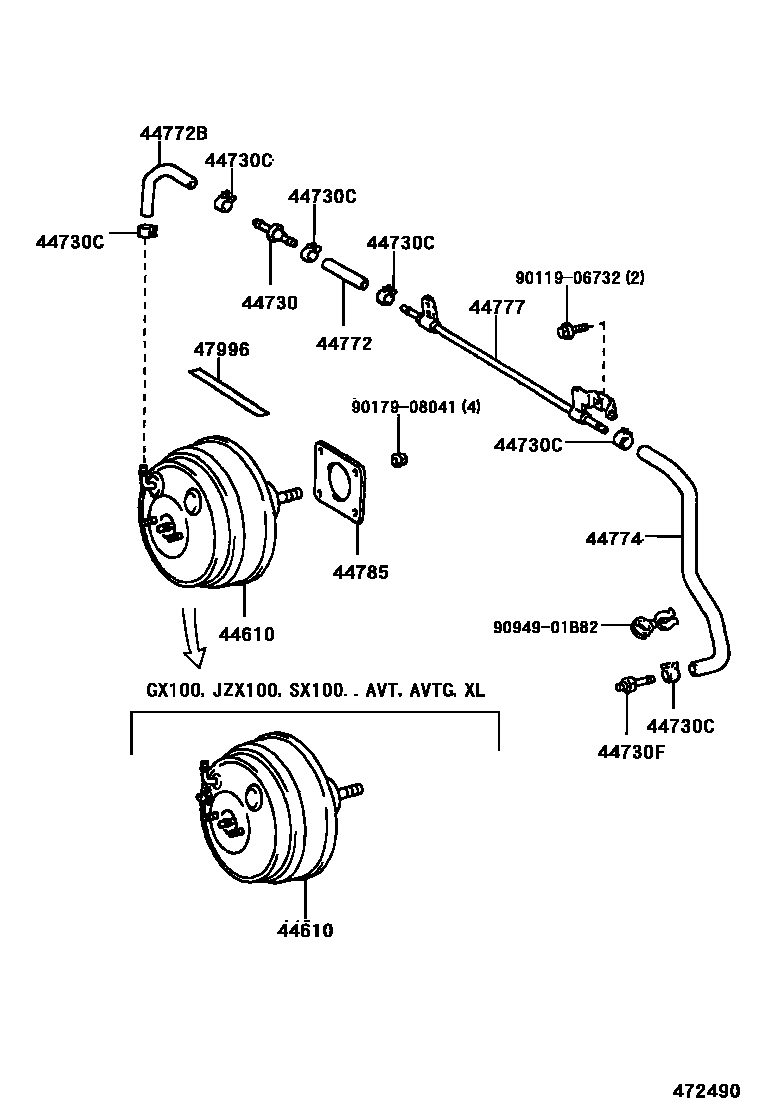

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0004 1 0005 1 0006 1

44610BOOSTER ASSY, BRAKE

main44610-2A140iJZX100..TOUV199609-199808

main44610-2A150iGX100,SX100199609-199808

main44610-2A160iJZX100,105..AVT,AVTG,TOUS199609-199808

main44610-2A180iJZX100..AVT,AVTG,TOUS199609-199808

main44610-2A190iLX100199609-199808

main44610-2A200iJZX100,101..AVT,AVTG199808

main44610-2A210iJZX100..TOUV199808

main44610-2A220iJZX100..TOUS199808

main44610-2A230iGX105,JZX105;GX100,JZX100..TOU,TOUS199808

main44610-2A240iGX100,JZX100,SX100..AVT,AVTG,XL199808

main44610-2A250iLX100199808-199908

main44610-2A260iLX100199808-199908

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-10010iGX100,JZX100,105,SX100199609-199808

main44730-60050iLX100199609-199908

44730CCLIP(FOR VACUUM HOSE)

main90467-16002×6iGX100,JZX100,105,LX100199609-199808

44730FUNION, VACUUM HOSE(FOR MANIFOLD SIDE)

main90404-51081iGX10#199810

main90404-51319iGX10#,JZX100,105,SX100..AVT,AVTG,RAF,TOU,TOUS,XL199609-199810

main90405-09148iJZX100..TOUV199609

main90405-09170iJZX101199808

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-22300iGX10#,JZX10#199808

main44772-30180iLX100199609-199908

44772BHOSE, CHECK VALVE TO BRAKE BOOSTER

main44772-22280iSX100199704

main44772-22310iGX100,JZX100,105199609-199808

44774HOSE, UNION TO CONNECTOR TUBE

main44774-22330iJZX100..TOUV199609

main44774-22340iJZX100..AVT,AVTG,TOUS199609

main44774-22350iJZX105199609

main44774-22360iGX100199609-199808

main44774-22370iGX100199808

main44774-22380iGX105199808

main44774-30080iLX100199609-199908

44777CONNECTOR, VACUUM HOSE, NO.1

main44770-22040iGX100,JZX100,105199609-199808

main44770-22050iGX10#199808

44785GASKET, BRAKE BOOSTER

main44785-32010iGX100,JZX100,105,LX100,SX100199609-199808

47996LABEL, BRAKE BLEED NOTICE

main47996-50040iJZX100,LX100199609-199808

main47996-50050iJZX100,101..AVT,AVTG199808

9011906732

main90119-06732

9017908041

main90179-08041

9094901B82

main90949-01B82

13 parts on this diagram · 5 diagrams in section
