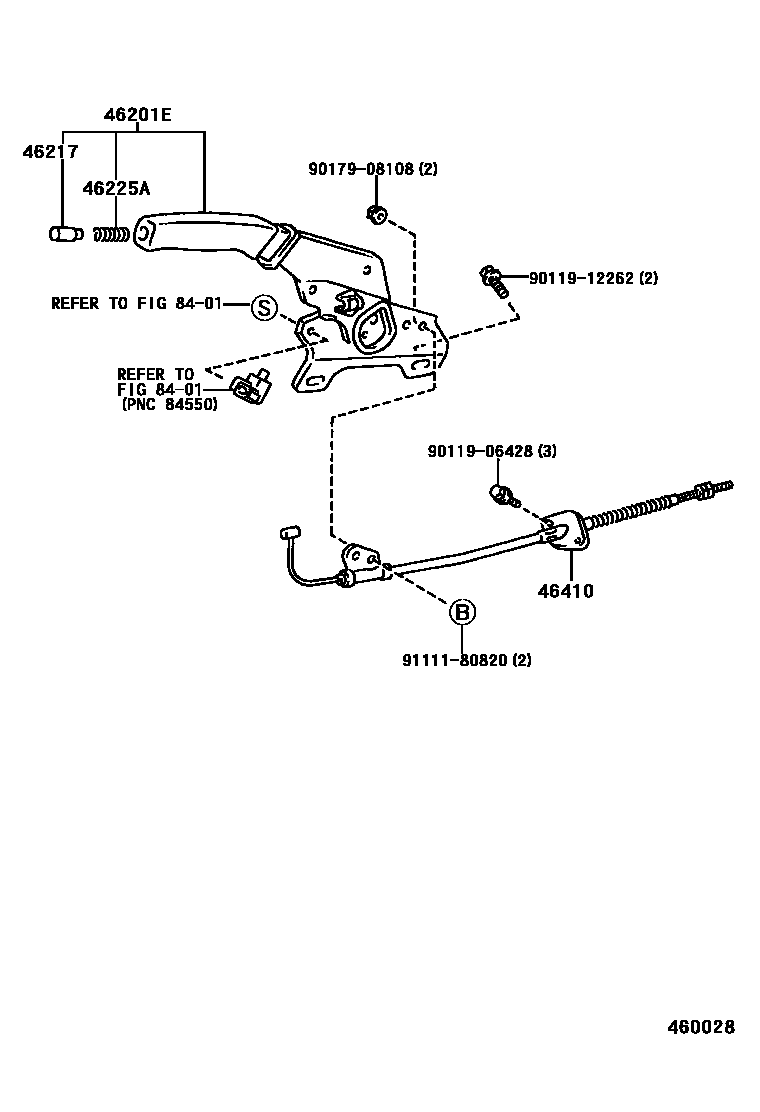

PARKING BRAKE & CABLE

0001 1 0002 1 0004 1 0005 1

46201PEDAL SUB-ASSY, PARKING BRAKE

main46201-22270iGX100,JZX10#,LX100,SX100..4FC..(AVT,AVTG,RAF)199609-199808

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-22290-B0iGX100..TOU199712-199807

sub46201-22290

main46201-22290-B0iJZX100..TOUS,TOUV199609-199808

DK. BLUE GRAY,TRIM1#

sub46201-22290

main46201-22290-C1iJZX100..TOUS,TOUV199808

BLACK,TRIM2#

sub46201-22290

main46201-22290-C1iGX100..TOU199901-199907

sub46201-22290

main46201-22300-B0iGX100..TOU199609-199808

DK.BLUE GRAY,TRIM1#

sub46201-22300

main46201-22300-C0iGX100..TOU199808

BLACK,TRIM2#

sub46201-22300

main46201-22300-E0iGX100..5F..AVT199609

ORCHID BROWN,TRIM4#

sub46201-22300

main46201-22300-G0iGX100..5F..AVT;LX100,SX100..XL199609

DK.SAGE,TRIM6#

sub46201-22300

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-22060-B0iGX100,JZX100..TOU,TOUS,TOUV199609-199808

DK.BLUE GRAY,TRIM1#

sub46217-22060

main46217-22060-C0iGX100,JZX100..TOU,TOUS,TOUV199808

BLACK,TRIM2#

sub46217-22060

main46217-22060-E2iGX100..5F..AVT199609

ORCHID BROWN,TRIM4#

sub46217-22060

main46217-22060-G1iGX100..5F..AVT;LX100,SX100..XL199609

DK.SAGE,TRIM6#

sub46217-22060

46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)

main90501-10085iGX100..5F..AVT;GX100,JZX100,LX100,SX100..TOU,TOUS,TOUV,XL199609

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-22210iGX100..5F..AVT;GX100,JZX100,LX100,SX100..TOU,TOUS,TOUV,XL199609

main46410-22230iGX100,JZX100,101,LX100,SX100..4FC..(AVT,AVTG,RAF)199609-199808

main46410-22240iJZX105199609-199808

main46410-22250iGX100,JZX100,101,LX100,SX100..4FC..(AVT,AVTG,XL)199808

main46410-22260iGX105,JZX105199808

8401

9011906428

main90119-06428

9011912262

main90119-12262

9017908108

main90179-08108

9111180820

main91111-80820

10 parts on this diagram · 4 diagrams in section
