TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

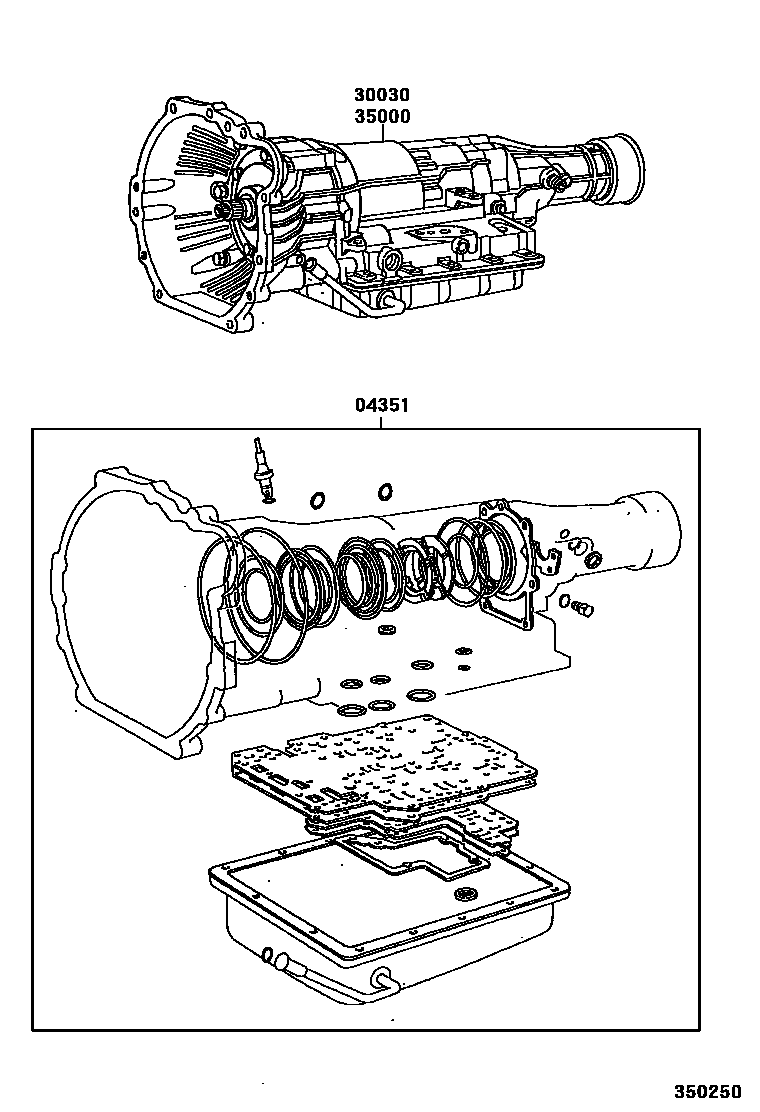

Parts diagram

04351GASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL

main04351-22120i199609-200106

main04351-22130i199808-200106

main04351-22140i199808-200106

main04351-24020i199609-200106

main04351-30120i199609-199808

main04351-30210i199609-199808

main04351-30300i199808-200106

main04351-35040i199609-199908

main04351-43010i199704-199801

main04351-43020i199801-199808

30030TRANSMISSION ASSY, REBUILT

main30030-2C190i199609-199705

main30030-2C191i199705-199808

main30030-2C200i199609-199808

main30030-2C210i199609-199705

main30030-2C211i199705-199808

main30030-2C220i199609-199705

main30030-2C221i199705-199808

main30030-2C230i199609-199808

main30030-2C240i199704-200106

main30030-2C250i199609-199908

main30030-2C270i199609-199808

main30030-2C280i199808-199809

main30030-2C290i199808-200106

main30030-2C300i199808-200106

main30030-2C310i199808-200106

main30030-2C320i199808-200106

main30030-2C330i199808-200106

main30030-2C340i199808-200106

main30030-3F490i199809-200106

35000TRANSMISSION ASSY, AUTOMATIC

main35000-2C190i199609-199705

main35000-2C191i199705-199808

main35000-2C200i199609-199705

main35000-2C201i199705-199808

main35000-2C210i199609-199705

main35000-2C211i199705-199808

main35000-2C220i199609-199705

main35000-2C221i199705-199808

main35000-2C230i199609-199808

main35000-2C240i199704

main35000-2C250i199609-199908

main35000-2C270i199609-199808

main35000-2C280i199808-199809

main35000-2C290i199808

main35000-2C300i199808

main35000-2C310i199808

main35000-2C320i199808

main35000-2C330i199808

main35000-2C340i199808

main35000-3F490i199809

3 parts on this diagram · 4 diagrams in section
