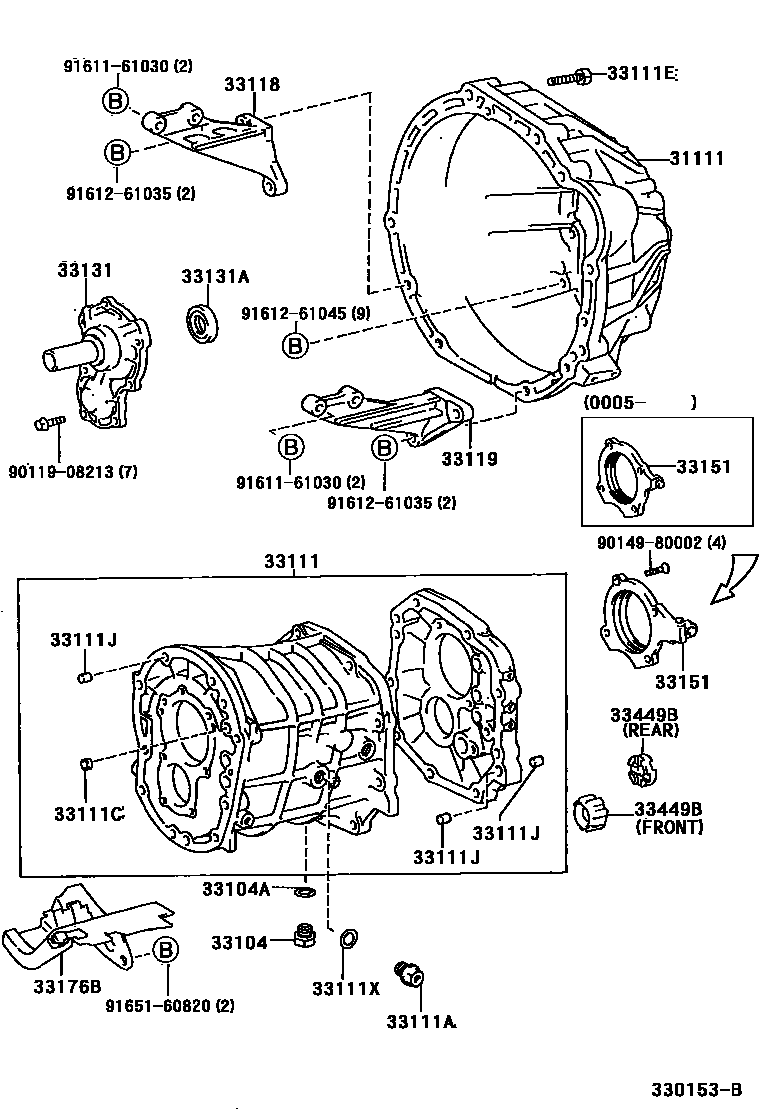

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1W55,W57 0002 1R154

31111HOUSING, CLUTCH

main31111-14110iJZX100..5F199609-199910

main31111-14111iJZX100..5F199910

main31111-22130iGX100..5F199609

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iGX100,JZX100..5F199609

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iGX100,JZX100..5F199609

33111CASE, MANUAL TRANSMISSION

main33101-30071iGX100..5F199609

main33101-35100iJZX100..5F199609

33111APLUG, MANUAL TRANSMISSION CASE

main90341-18006iGX100..5F199609

main90341-18026iJZX100..5F199609

33111CPLUG(FOR TRANSMISSION CASE)

main90331-14004iJZX100..5F199609

main96411-41800×2iGX100..5F; JZX100..5F199609

33111EBOLT(FOR TRANSMISSION CASE & ENGINE SETTING)

main91619-61250×5iGX100..5F; JZX100..5F199609

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-12002×2iGX100..5F; JZX100..5F199609

33111XGASKET, TRANSMISSION CASE PLUG

main90430-18008iGX100..5F199609

33118PLATE, STIFFENER, RH(MTM)

main33118-22051iGX100..5F199609

33119PLATE, STIFFENER, LH(MTM)

main33119-22042iGX100..5F199609

33131RETAINER, BEARING, FRONT(MTM)

main33131-30080iGX100..5F199609

main33131-35031iJZX100..5F199609

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-30014iGX100..5F199609

main90311-32012iJZX100..5F199609

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33107-30020iGX100..5F199609-200010

main33151-35020iJZX100..5F199609

33176BSEPARATOR, TRANSMISSION OIL(MTM)

main33176-30020iGX100..5F199609

33449BMAGNET, TRANSMISSION

main33449-30010iGX100..5F199609

main33449-30020iGX100..5F199609

main33449-35030iJZX100..5F199609

9011908213

main90119-08213

9014980002

main90149-80002

9161161030

main91611-61030

9161261035

main91612-61035

9161261045

main91612-61045

9165160820

main91651-60820

22 parts on this diagram · 2 diagrams in section
