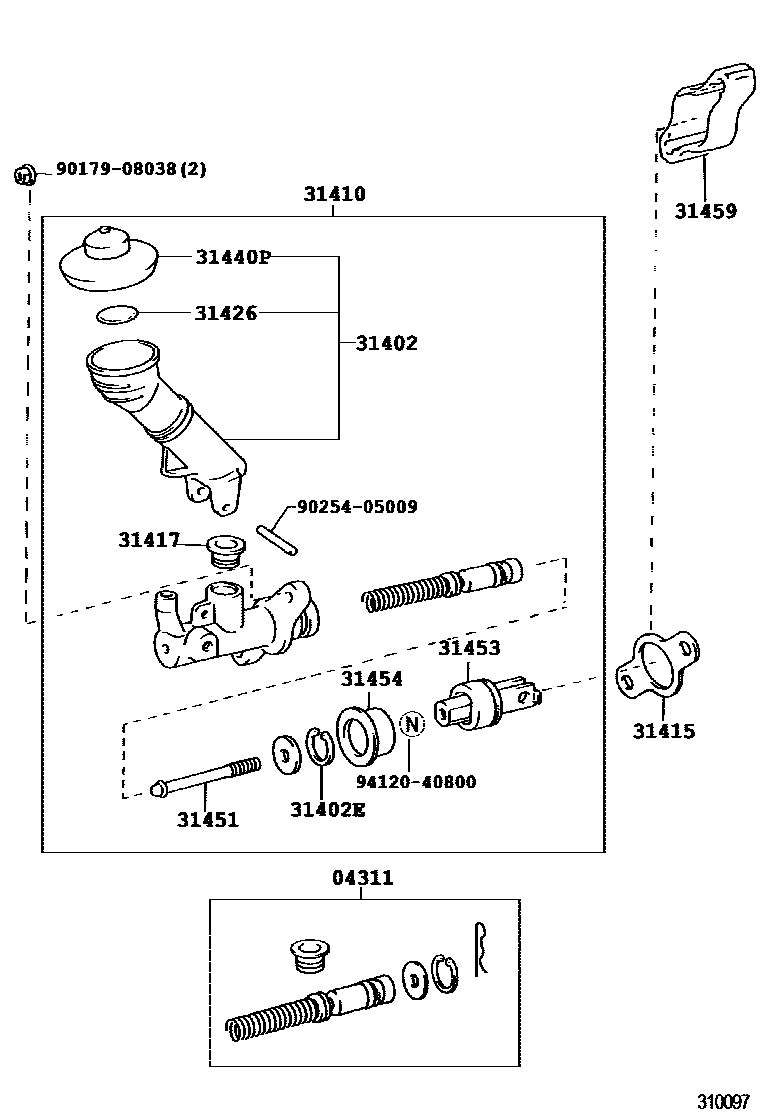

CLUTCH MASTER CYLINDER

04311CYLINDER KIT, CLUTCH MASTER

main04311-12110iGX100,JZX100..5F199609

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-22050iGX100,JZX100..5F199609

31402ERING(FOR CLUTCH MASTER CYLINDER RESERVOIR)

main96151-02200iGX100,JZX100..5F199609

31410CYLINDER ASSY, CLUTCH MASTER

main31410-22320iGX100,JZX100..5F199609

31415GASKET, CLUTCH MASTER CYLINDER

main31415-10010iGX100,JZX100..5F199609

31417GROMMET, CLUTCH RESERVOIR

main31417-35010iGX100,JZX100..5F199609

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-22020iGX100,JZX100..5F199609

31440PCAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main47230-20040iGX100,JZX100..5F199609

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-22080iGX100,JZX100..5F199609

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-28020iGX100,JZX100..5F199609

31454BOOT, CLUTCH MASTER CYLINDER

main31454-16010iGX100,JZX100..5F199609

31459BRACKET, CLUTCH MASTER CYLINDER

main31459-22020iGX100,JZX100..5F199609

9017908038

main90179-08038

9025405009

main90254-05009

9412040800

main94120-40800

15 parts on this diagram · 1 diagram in section
