STARTER

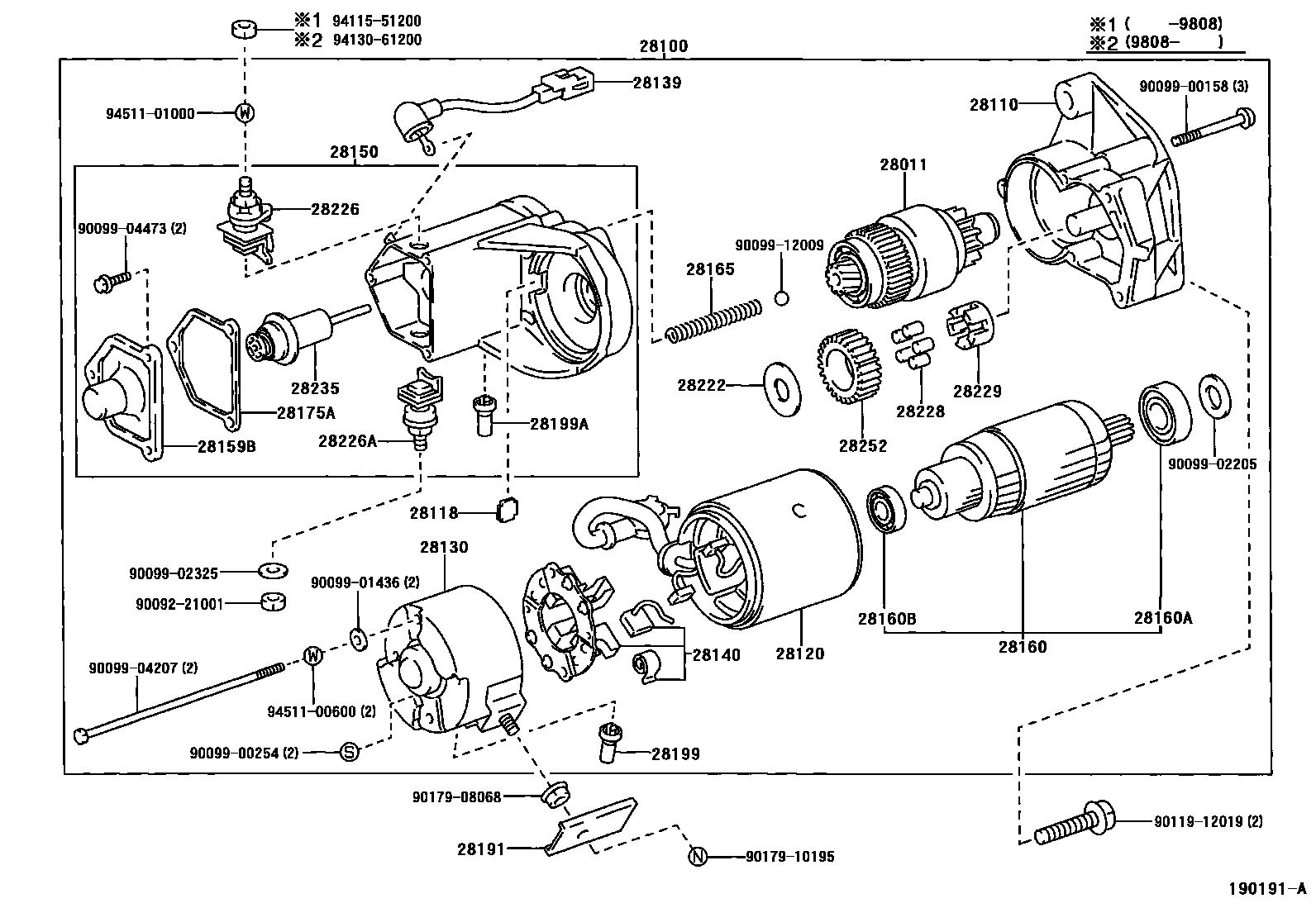

Parts diagram

28011CLUTCH SUB-ASSY, STARTER

main28011-26042i199704

main28011-54010i199609-199908

main28011-70020i199609

main28011-76070i199609

28100STARTER ASSY

main28100-46130i199609

main28100-46140i199609

main28100-46200i199609

main28100-54370i199609-199908

main28100-70030i199609

main28100-70050i199609

main28100-74170i199704

28110HOUSING ASSY, STARTER DRIVE

main28110-46090i199609

main28110-46130i199609

main28110-63050i199704

main28110-70020i199609

main28115-54011i199609-199908

28118PLATE(FOR STARTER YOKE)

main28118-77090i199609-199908

28120YOKE ASSY, STARTER

main28120-26071i199704

main28120-56081i199609-199908

main28120-66040i199612

main28120-70020i199609

12V 0.8KW

main28120-70050i199609

main28120-70050i199609

12V 1.0KW

main28120-74070i199609-199612

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-13010i199704

main28130-15190i199609

main28130-46090i199609

main28130-54390i199609-199908

main28130-70020i199609

28139WIRE, LEAD, NO.1(FOR STARTER)

main28139-54251i199609-199908

28140HOLDER ASSY, STARTER BRUSH

main28140-26070i199704

main28140-70020i199609

main28140-76070i199609

main28140-77090i199609-199908

28150SWITCH ASSY, MAGNET STARTER

main28150-46140i199609-199612

main28150-46150i199612

main28150-54320i199609-199908

main28150-70030i199609

main28150-74170i199704

28159BCOVER, MAGNET SWITCH

main28159-10040i199704

main28159-55050i199609

main28159-56310i199609-199908

28160ARMATURE ASSY, STARTER

main28160-26071i199704

main28160-54140i199609-199908

main28160-70021i199609

12V 0.8KW

main28160-70050i199609

main28160-70050i199609

12V 1.0KW

main28160-74070i199609

28160ABEARING, STARTER ARMATURE

main90099-10113i199704

main90099-10119i199609-199908

main90099-10197i199609

28160BBEARING, STARTER ARMATURE, NO.2

main28253-45020i199704

main90099-10107i199609-199908

main90099-10196i199609

28165SPRING, STARTER MAGNET SWITCH RETURN

main28165-26040i199704

main28165-76070i199609

main28165-77090i199609-199908

28175AGASKET, MAGNET SWITCH COVER

main28175-10040i199704

main28175-55050i199609

main28175-56310i199609-199908

28191STAY, STARTER

main28191-54030i199609-199908

28199COVER, STARTER

main28199-46080i199609

main28199-63050i199704

main28199-74110i199609

28199APROTECTOR, DUST STARTER

main28199-54190i199609-199908

28222WASHER, STARTER IDLE GEAR CLUTCH

main28222-54370i199609-199908

28226STARTER KIT, BATTERY TERMINAL

main28226-13120i199712-199910

main28226-54320i199609-199908

main28226-64100i200101

main28226-64200i199609

main28226-72020i199910-200101

main28226-72080i199704-199712

28226ASTARTER KIT, MOTOR TERMINAL

main28226-54220i199609-199908

main28226-72010i199704

main28226-74070i199609

28228ROLLER, STARTER IDLE GEAR CLUTCH

main28228-26040i199609

main28228-56080i199609-199908

28229RETAINER, STARTER IDLE GEAR

main28229-26040i199704

main28229-56080i199609-199908

main28229-74070i199609

28235PLUNGER, MAGNET SWITCH

main28235-17030i199609-199908

main28235-35080i199704

main28235-55050i199609

28252GEAR, STARTER IDLE

main28254-45020i199704

main28254-74070i199609

main28254-77090i199609-199908

9009221001

main90092-21001

9009900158

main90099-00158

9009900254

main90099-00254

9009901436

main90099-01436

9009902205

main90099-02205

9009902325

main90099-02325

9009904207

main90099-04207

9009904473

main90099-04473

9009912009

main90099-12009

9011912019

main90119-12019

9017908068

main90179-08068

9017910195

main90179-10195

9411551200

main94115-51200

9413061200

main94130-61200

9451100600

main94511-00600

9451101000

main94511-01000

41 parts on this diagram · 5 diagrams in section
