WIRING & CLAMP

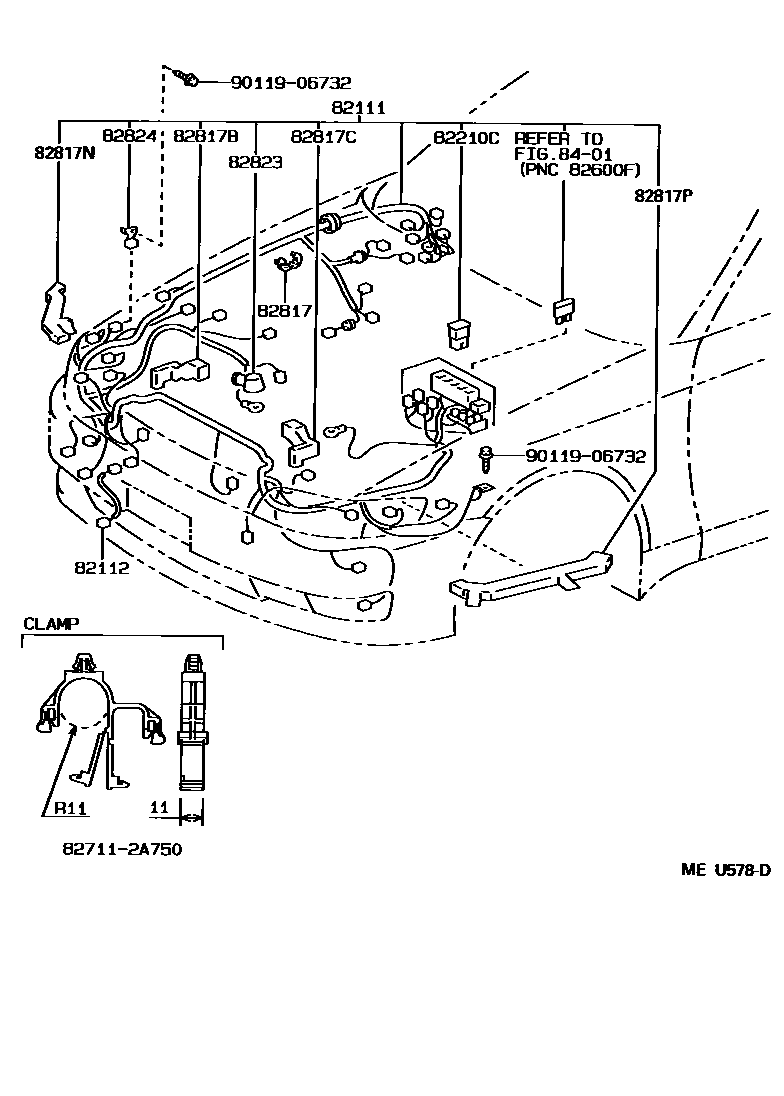

Parts diagram

82111WIRE, ENGINE ROOM MAIN

main82111-2A790i199210-199409

main82111-2A800i199210-199409

main82111-2A820i199310-199409

main82111-2A830i199210-199409

main82111-2A840i199210-199409

main82111-2A850i199210-199409

main82111-2A860i199210-199409

main82111-2C060i199310-199409

main82111-2C080i199409-199609

main82111-2C100i199409-199609

main82111-2C120i199409-199609

main82111-2C140i199409-199609

main82111-2C160i199409-199609

main82111-2C180i199409-199609

main82111-2C200i199409-199609

main82111-2C220i199409-199609

main82111-2C250i199409-199609

main82111-2C260i199409-199609

82112WIRE, ENGINE ROOM, NO.2

main82112-22070i199210-199609

main82112-22080i199210-199609

82210CFUSIBLE LINK

main90982-08188i199210-199609

main90982-08189i199210-199609

main90982-08190i199210-199609

main90982-08202i199210-199609

main90982-08223i199210-199609

main90982-08227×2i199306-199609

main90982-08270i199210-199609

main90982-08271i199210-199609

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-2A290i199210-199609

82817BPROTECTOR, WIRING HARNESS, NO.3

main82817-2A260i199210-199609

82817CPROTECTOR, WIRING HARNESS, NO.4

main82817-2A270i199210-199609

82817NPROTECTOR, WIRING HARNESS, NO.13

main82817-2A250i199210-199609

82817PPROTECTOR, WIRING HARNESS, NO.14

main82817-2A280i199210-199609

82823CAP, TERMINAL, NO.1

main82823-22070i199210-199609

main82823-22080i199210-199609

82824CONNECTOR, WIRING HARNESS

main82824-22050i199210-199609

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

827112A750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2A750

9011906732

main90119-06732

13 parts on this diagram · 14 diagrams in section
